Safety Belt - Front 40/20/40 Seat, Center: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cap from the safety belt buckle nut.

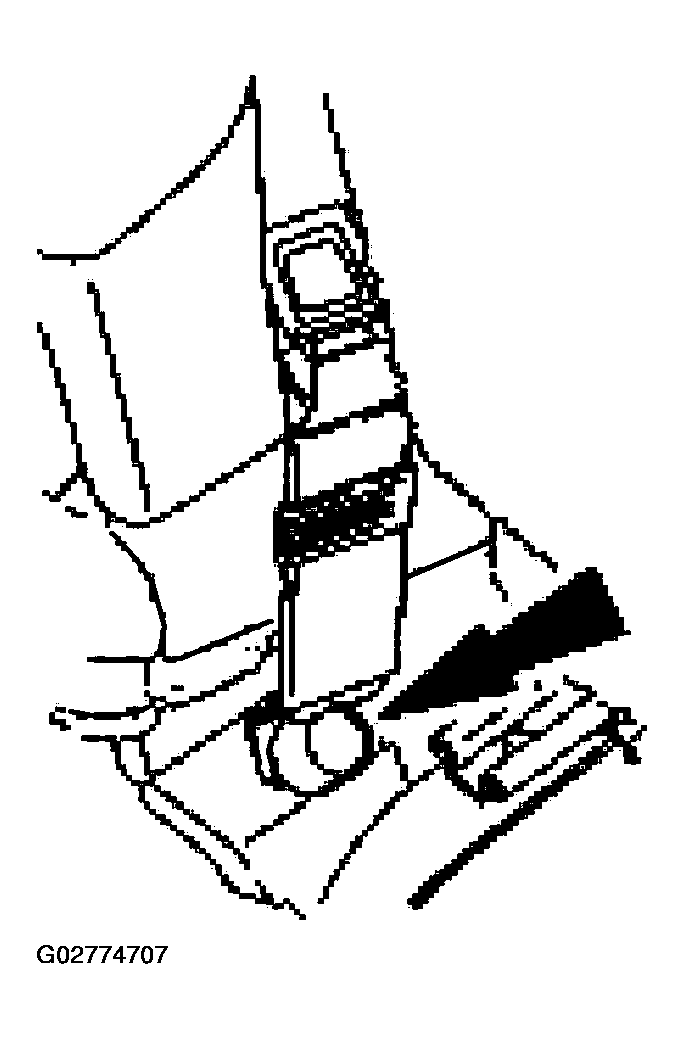

    Fig 1: Removing Cap From Safety Belt Buckle Nut
    G02774707Courtesy of FORD MOTOR CO.
  2. Remove the safety belt buckle.
    1. Remove the safety belt buckle nut.
    2. Remove the safety belt buckle.

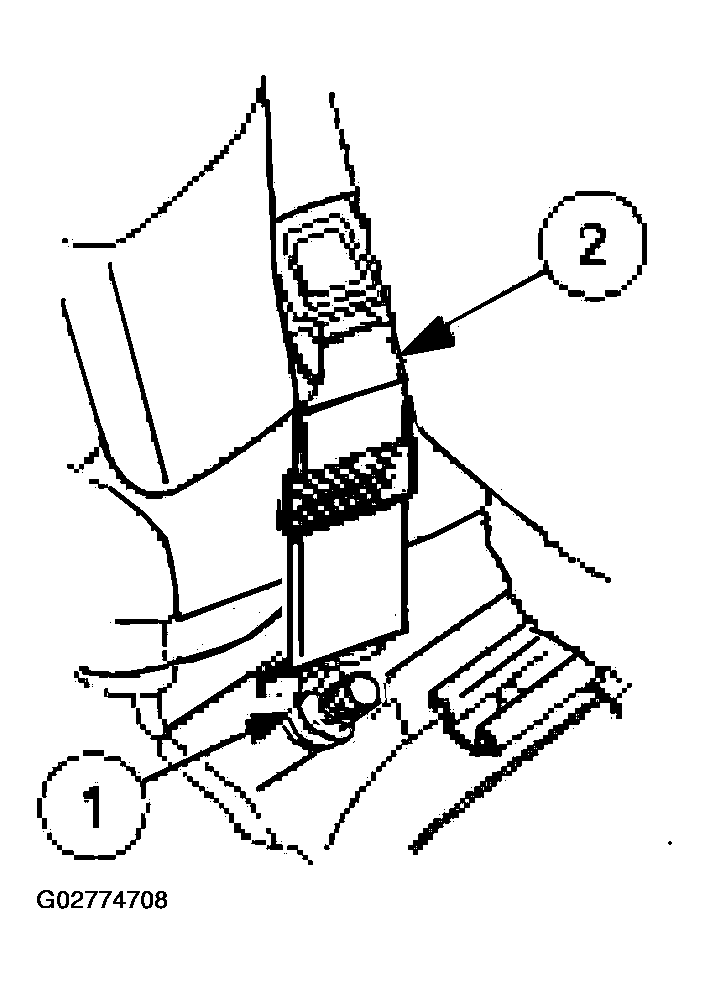

    Fig 2: Removing Safety Belt Buckle
    G02774708Courtesy of FORD MOTOR CO.
  3. Remove the cap from the safety belt nut.
  4. Remove the safety belt tongue.
    1. Remove the safety belt nut.
    2. Remove the safety belt.
    Fig 3: Removing Safety Belt
    G02774709Courtesy of FORD MOTOR CO.
