Retractor - Rear Safety Belt and Tongue, Crew Cab: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.

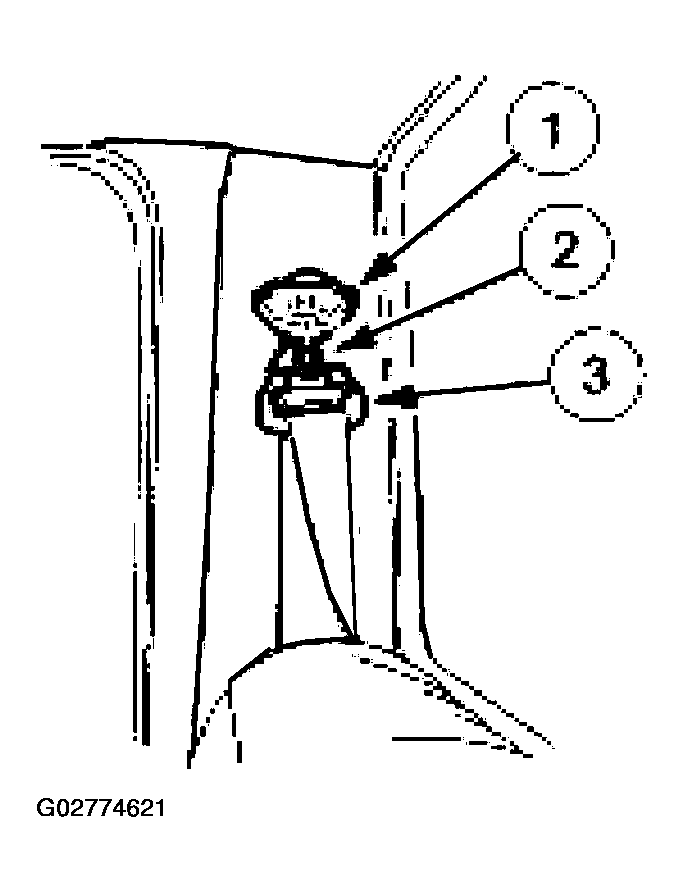

Fig 1: Removing Shoulder Safety Belt Guide

Courtesy of FORD MOTOR CO.

Remove the shoulder safety belt guide.
1. Position the shoulder safety belt guide cover up.
2. Use the Seat Belt Bolt Bit to remove the bolt.
3. Remove the shoulder safety belt guide.
Position the rear seat back forward.
Remove the utility tray, if necessary.
Remove the rear door scuff plate and the rear corner trim panel.
Remove the safety belt retractor.
1. Use the Seat Belt Bolt Bit to remove the bolt.
2. Remove the safety belt retractor.
Fig 2: Removing Safety Belt Retractor
Courtesy of FORD MOTOR CO.
Remove the safety belt anchor.
1. Use the Seat Belt Bolt Bit to remove the bolt.
2. Remove the safety belt anchor.
Fig 3: Removing Safety Belt Anchor
Courtesy of FORD MOTOR CO.
