Rear Safety Belt Retractor - Second and Third Row, Outboard, Excursion: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Third row retractor only

    CAUTION: Do not remove the shipping clip until the shoulder safety belt guide is secured in position. Allowing the safety belt to be retracted further into the safety belt retractor may cause the safety belt retractor to lock and not release the safety belt.
    Fig 1: Installing Third Row Safety Belt Retractor
    G02774652Courtesy of FORD MOTOR CO.
  1. Install the third row safety belt retractor.
    1. Position the third row safety belt retractor to the body.
    2. Using the special tool 501-010 (T77L-2100-A), install the bolt.

    Second row retractor only

    2. CAUTION: Do not remove the shipping clip until the shoulder safety belt guide is secured in position. Allowing the safety belt to be retracted further into the safety belt retractor may cause the safety belt retractor to lock and not release the safety belt.

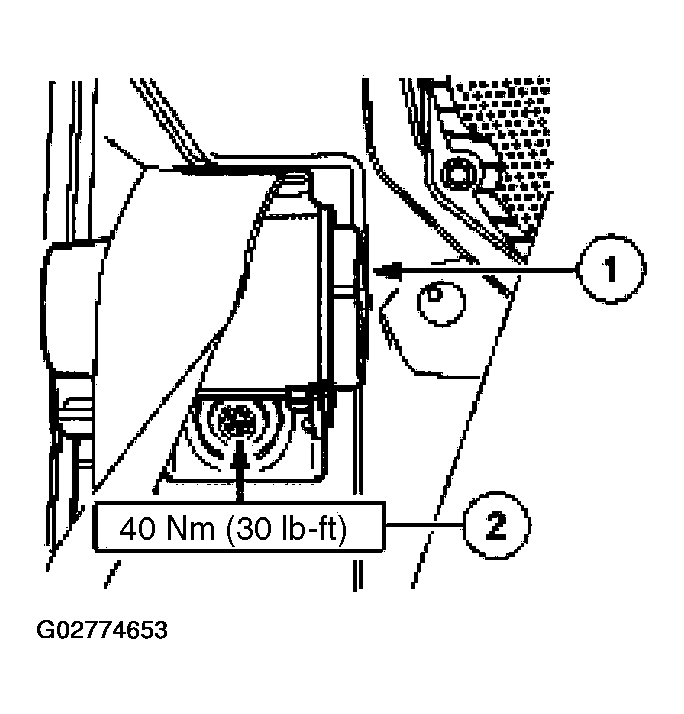

    Fig 2: Installing Second Row Safety Belt Retractor Bolt
    G02774653Courtesy of FORD MOTOR CO.
  2. Install the second row safety belt retractor.
    1. Position the second row safety belt retractor to the body.
    2. Using the special tool 501-010 (T77L-2100-A), install the bolt.

    Passenger side with auxiliary climate control only

  3. Position the climate control duct and install the pin-type retainers.

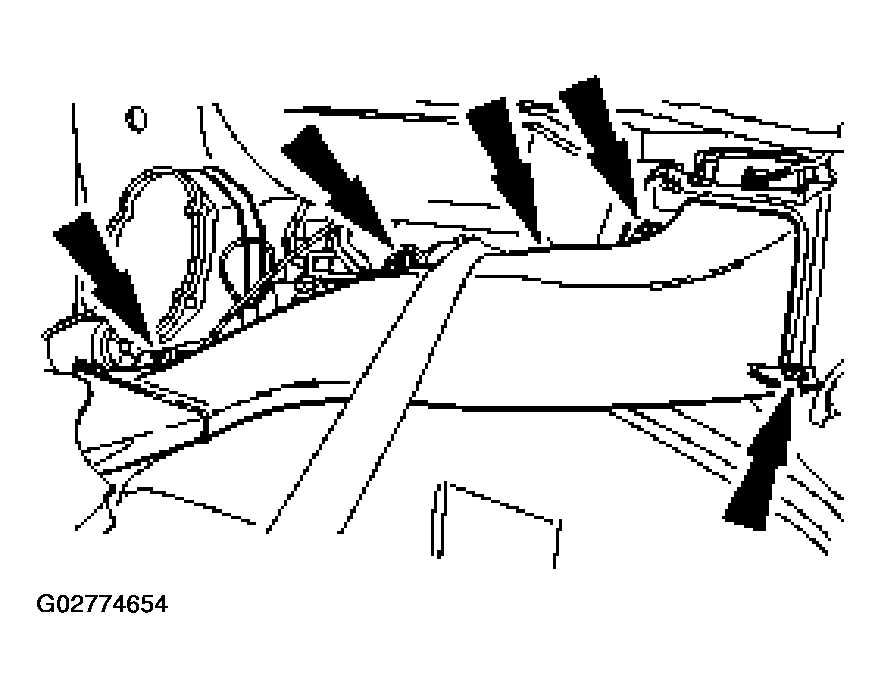

    Fig 3: Installing Pin-Type Retainers
    G02774654Courtesy of FORD MOTOR CO.

    Both sides

  4. Route the second and third row safety belt anchors and guides through the B-pillar trim panel.
    5. NOTE: Do not secure the quarter trim panel as the shipping clip(s) will need to be removed from the safety belt retractor(s) later.
    NOTE: Driver side is shown, passenger side is similar.
    Fig 4: Connecting Power Point Electrical Connector
    G02774655Courtesy of FORD MOTOR CO.
  5. Position the quarter trim panel to the body and connect the power point electrical connector.
    6. NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    Fig 5: Installing Third Row Shoulder Safety Belt Guide
    G02774656Courtesy of FORD MOTOR CO.
  6. Install the third row shoulder safety belt guide.
    1. Position the shoulder safety belt guide.
    2. Using the special tool 501-010 (T77L-2100-A), install the bolt.
    3. Reposition the shoulder safety belt guide cover.
    7. NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
    Fig 6: Installing Second Row Shoulder Safety Belt Guide
    G02774657Courtesy of FORD MOTOR CO.
  7. Install the second row shoulder safety belt guide.
    1. Position the shoulder safety belt guide.
    2. Install the nut.
    3. Close the shoulder safety belt guide cover.
  8. Remove the shipping clip(s) from the safety belt retractor(s).
    Fig 7: Removing Shipping Clip
    G02774658Courtesy of FORD MOTOR CO.
    9. NOTE: Driver side is shown, passenger side is similar.
    Fig 8: Positioning Quarter Trim Panel
    G02774659Courtesy of FORD MOTOR CO.
  9. Position the quarter trim panel and push in on it securing the fasteners.
    10. NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    Fig 9: Installing Row Safety Belt Anchor
    G02774660Courtesy of FORD MOTOR CO.
  10. Install the third row safety belt anchor.
    1. Position the safety belt anchor.
    2. Using the special tool 501-010 (T77L-2100-A), install the bolt.
    11. NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    Fig 10: Positioning Safety Belt Anchor
    G02774661Courtesy of FORD MOTOR CO.
  11. Install the second row safety belt anchor.
    1. Position the safety belt anchor.
    2. Using the special tool 501-010 (T77L-2100-A), install the bolt.
    12. NOTE: Passenger side is shown, driver side is similar.

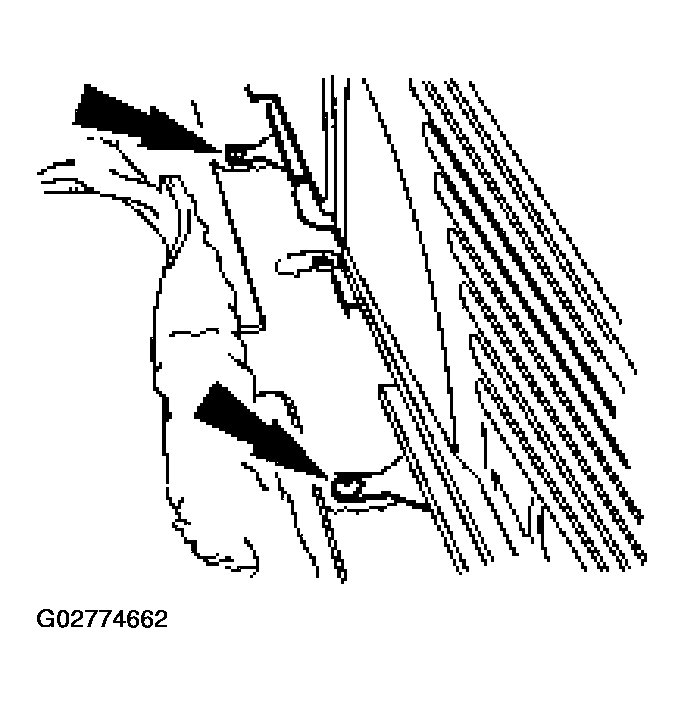

    Fig 11: Installing Pin-Type Retainers Into Quarter Trim Panel
    G02774662Courtesy of FORD MOTOR CO.
  12. Install the pin-type retainers into the quarter trim panel.
  13. Reposition the floor covering back along the rear quarter trim panel.
  14. Position the C-pillar trim panel and push in on it, securing the fasteners.
    Fig 12: Positioning C-Pillar Trim Panel
    G02774663Courtesy of FORD MOTOR CO.

    Driver side only

  15. Position the spare tire mounting plate and install the bolts.
    Fig 13: Positioning Spare Tire Mounting Plate
    G02774664Courtesy of FORD MOTOR CO.
  16. Install the spare tire.

    Passenger side only

  17. Position the D-pillar trim panel and push in on it to secure the fasteners.
    Fig 14: Positioning D-Pillar
    G02774665Courtesy of FORD MOTOR CO.
  18. Position the rear hatch scuff plate and push down on it to secure the fasteners.
    Fig 15: Positioning Rear Hatch Scuff Plate
    G02774666Courtesy of FORD MOTOR CO.
  19. Position the rear hatch upper trim panel and push up on it to secure the fasteners.
    Fig 16: Positioning Rear Hatch Upper Trim Panel
    G02774667Courtesy of FORD MOTOR CO.

    Both sides

  20. Reposition the weatherstripping. Position the rear door scuff plate and push down on it to secure the fasteners.

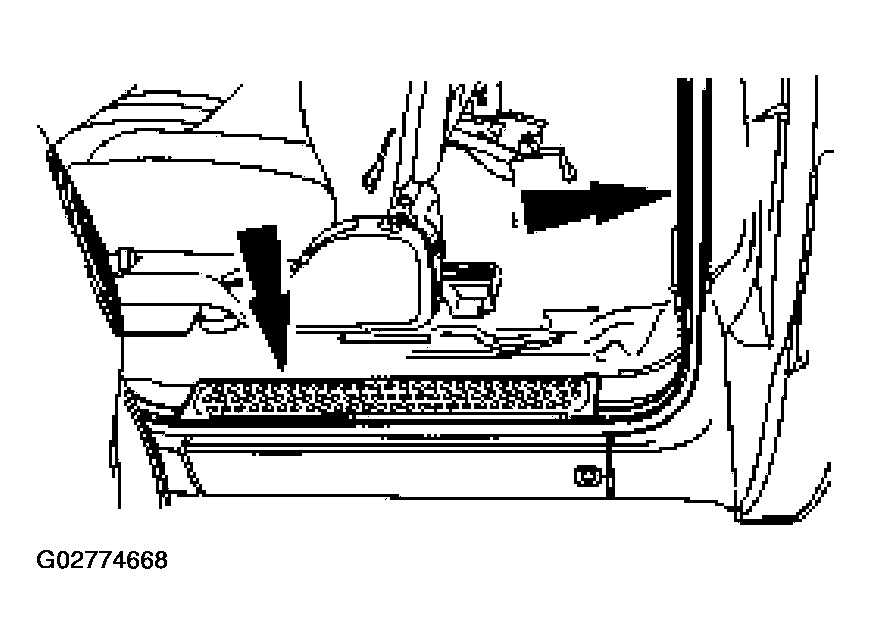

    Fig 17: Positioning Rear Door Scuff Plate
    G02774668Courtesy of FORD MOTOR CO.
  21. Position the floor finish panel and push down on it to secure the fasteners.
    Fig 18: Positioning Floor Finish Panel
    G02774669Courtesy of FORD MOTOR CO.
  22. Install the second and third row seat belt guide inserts into the quarter trim panel.
    Fig 19: Installing Row Seat Belt Guide Inserts
    G02774670Courtesy of FORD MOTOR CO.
  23. Install the third row seat.
  24. Readjust the second row seat.
  25. Check the restraints system for correct operation.
