Height Adjuster - Shoulder Safety Belt, Regular Cab: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged or cover does not remain closed, install a new shoulder safety belt guide.
    Fig 1: Removing Shoulder Safety Belt Guide
    G02774713Courtesy of FORD MOTOR CO.
  1. Remove the shoulder safety belt guide.
    1. Position the shoulder safety belt guide cover up.
    2. Remove the shoulder safety belt guide nut.
    3. Remove the shoulder safety belt guide.
  2. Remove the front door scuff plate and rear corner trim panel.
  3. Remove the height adjuster cover (602B90).

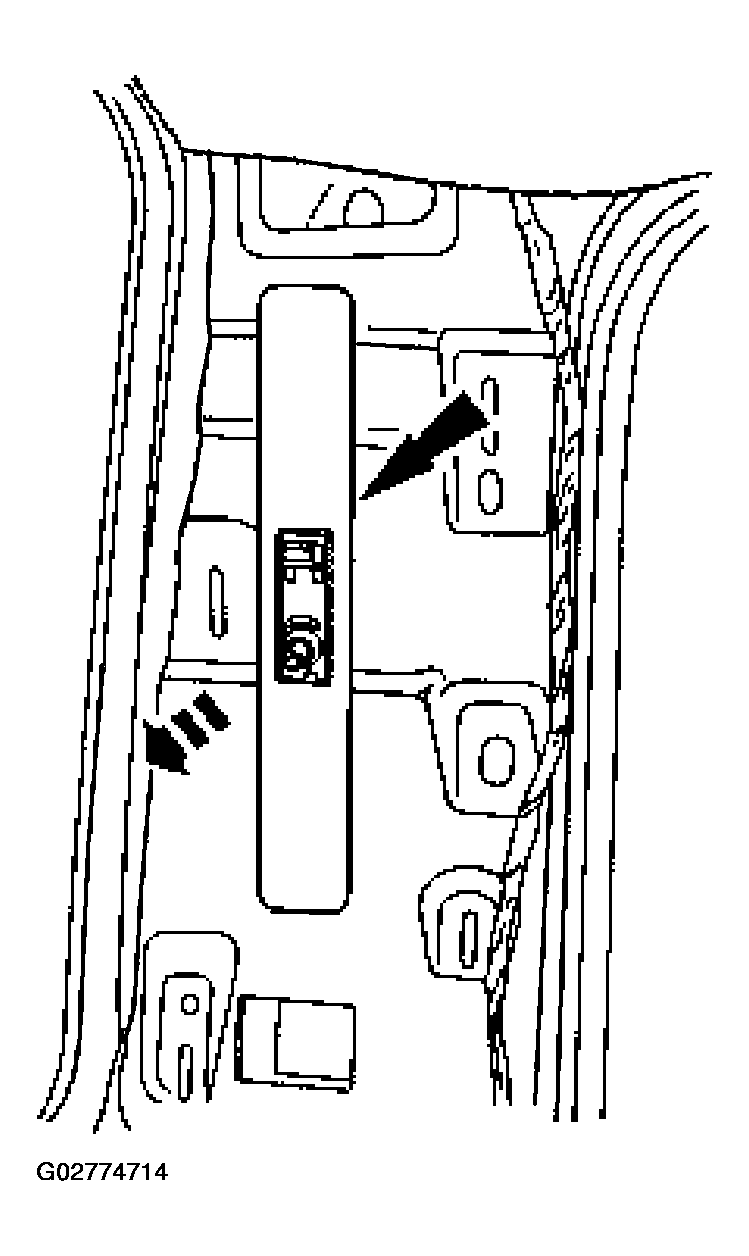

    Fig 2: Removing Height Adjuster Cover
    G02774714Courtesy of FORD MOTOR CO.
  4. Remove the shoulder safety belt height adjuster (602B82).
    1. Use the special tool to remove the bolts.
    2. Remove the shoulder safety belt height adjuster.

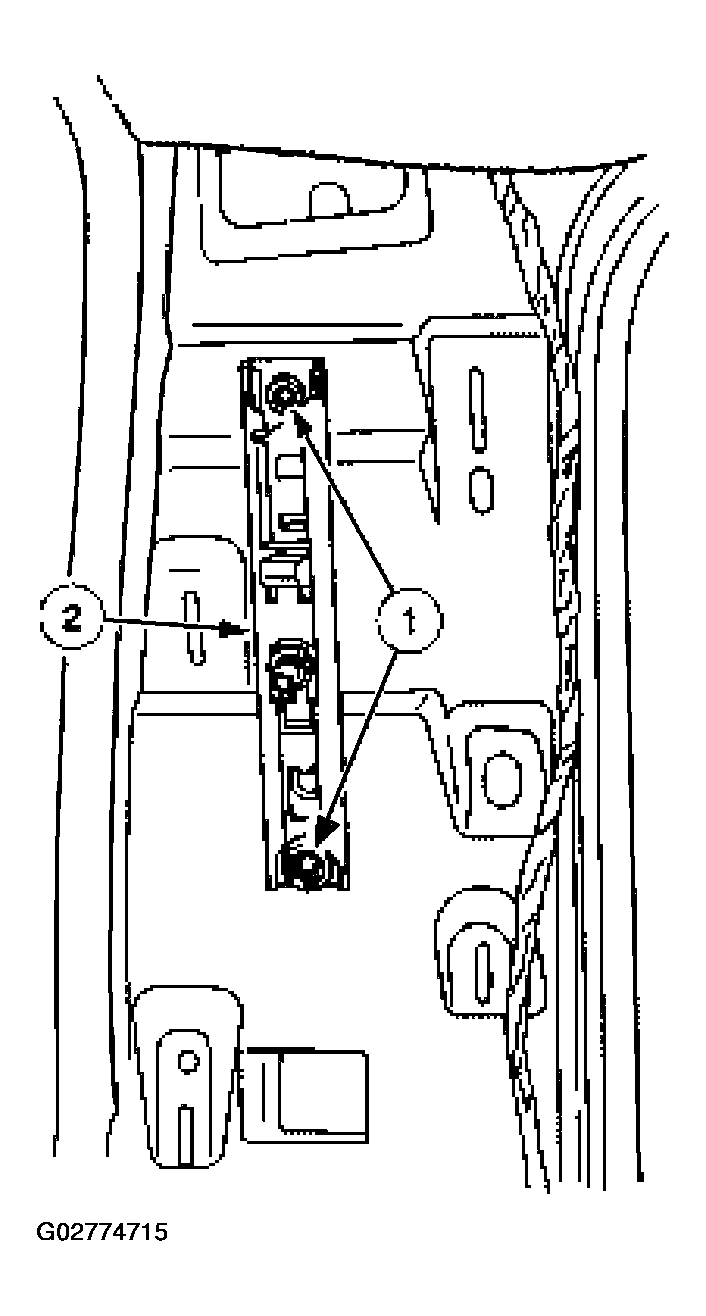

    Fig 3: Removing Shoulder Safety Belt Height Adjuster
    G02774715Courtesy of FORD MOTOR CO.
