Front Safety Belt Retractor - Seat Integrated Restraint (SIR), SuperCab: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: The driver side is shown, the passenger side is similar.

All seats

  1. Depower the SRS. Refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the seat on the side with the affected safety belt retractor. Refer to SEATING .
  3. Remove the seat adjuster control knobs, covers and the seat side trim panel screws.
    1. Remove the seat recliner lever cover screw and cover.
    2. Pull to remove the lumbar control knob.
    3. Remove the three seat side trim panel attachment screws (two shown).
    Fig 1: Removing Lumbar Control Knob
    G02774589Courtesy of FORD MOTOR CO.
  4. Remove the two screws securing the lumbar adjuster control to the seat track riser.
    • Push the lumbar adjuster control inward to provide clearance for trim panel removal.
    Fig 2: Removing Lumbar Adjuster Control Screws
    G02774590Courtesy of FORD MOTOR CO.

    Vehicles with power seats

  5. Disconnect the seat control switch electrical connector.

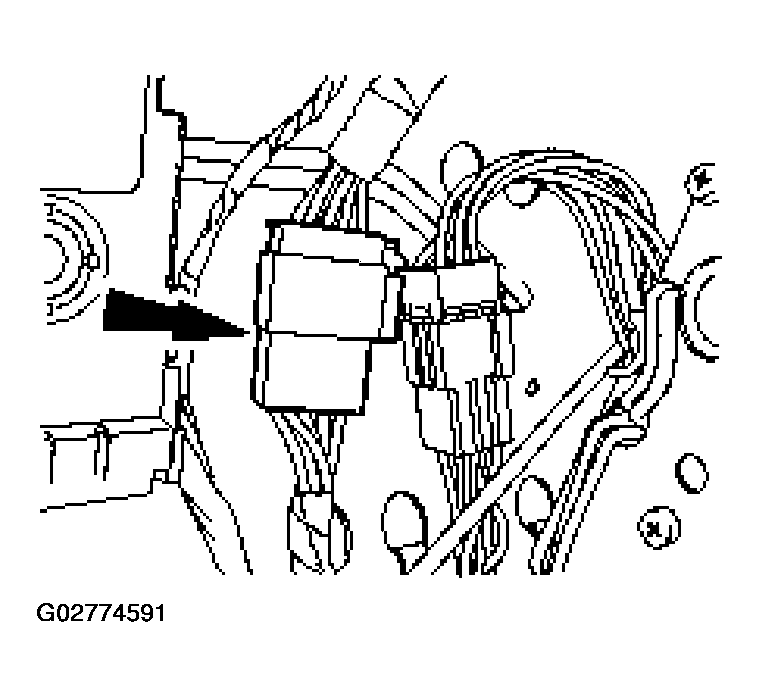

    Fig 3: Disconnecting Seat Control Switch Electrical Connector
    G02774591Courtesy of FORD MOTOR CO.

    Vehicles with heated seats

  6. Disconnect the heated seat switch electrical connector.

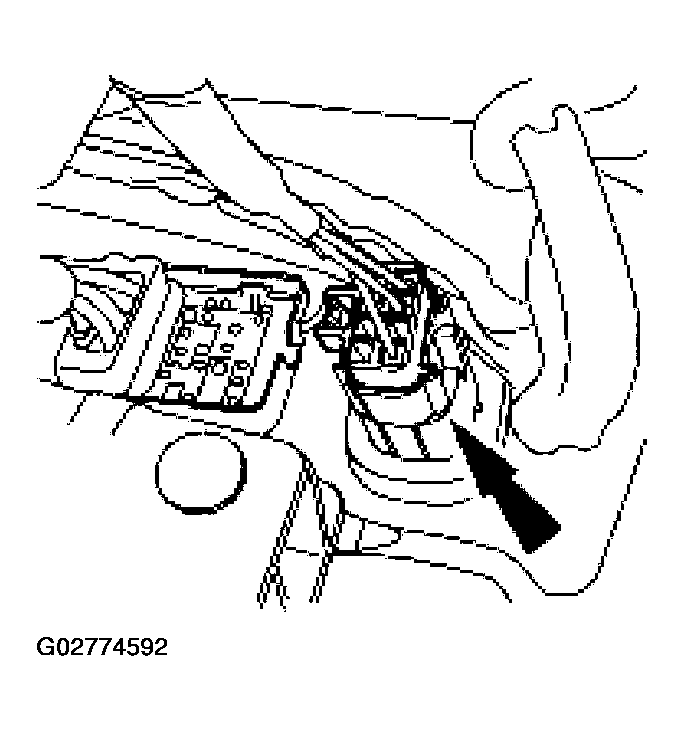

    Fig 4: Disconnecting Heated Seat Switch Electrical Connector
    G02774592Courtesy of FORD MOTOR CO.

    All seats

    7. NOTE: Note the seat control switch wire harness routing for installation.
  7. Remove the side trim cover.
  8. Remove the seat backrest trim panel.
    1. Using a pin-type retainer removal tool, release the two pin-type retainers at the bottom of the seat backrest trim panel (see inset for location).
    2. Push the sides of the seat backrest trim panel together and release the retaining clips (see inset for location).
    3. Slide the seat backrest trim panel down, releasing the upper retainers and remove the seat backrest trim panel.

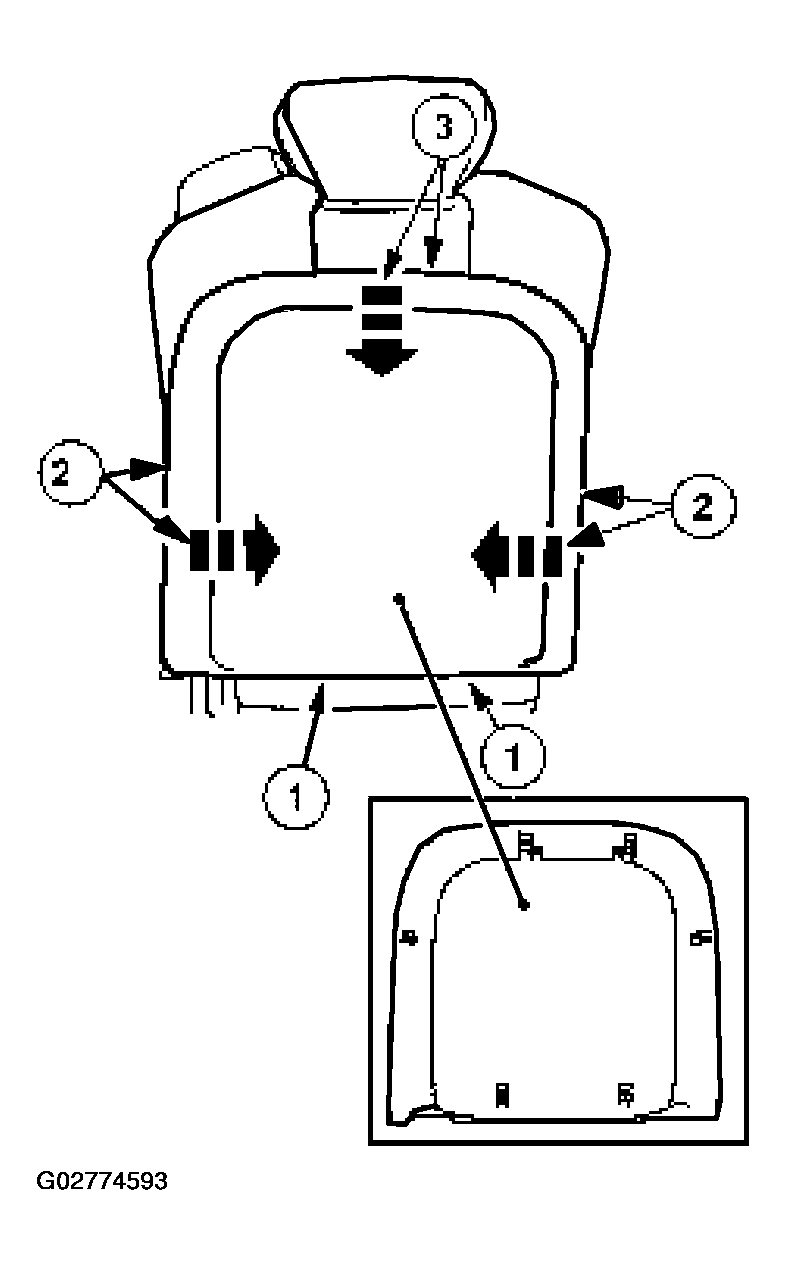

    Fig 5: Removing Seat Backrest Trim Panel
    G02774593Courtesy of FORD MOTOR CO.
  9. Release the seat backrest trim cover J-clips.

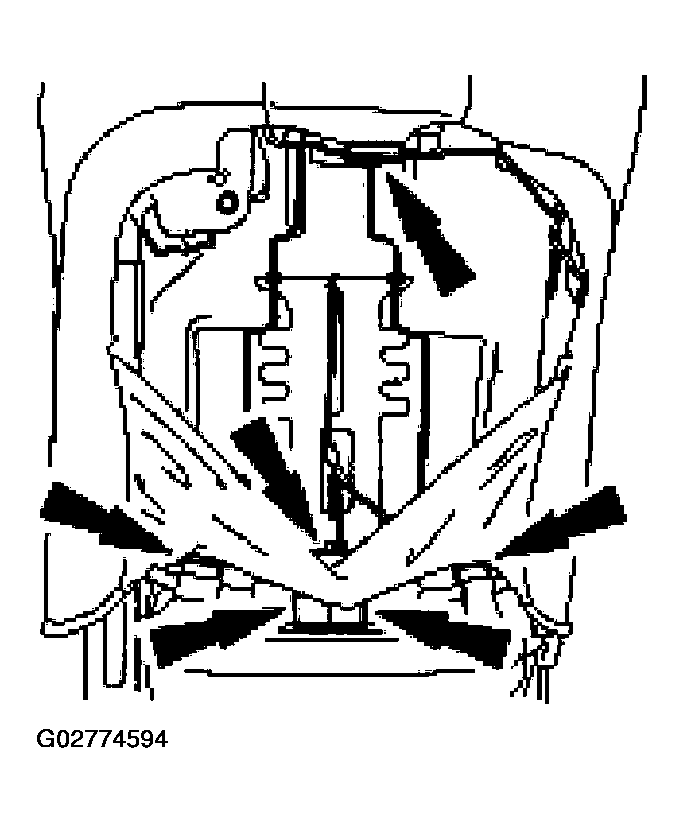

    Fig 6: Releasing Seat Backrest Trim Cover J-Clips
    G02774594Courtesy of FORD MOTOR CO.
    10. NOTE: The inboard and outboard tower cap covers are not interchangeable.
    Fig 7: Removing Four Tower Cap Attachment Screws
    G02774595Courtesy of FORD MOTOR CO.
  10. Remove the inboard, outboard and front tower cap screw covers. Remove four tower cap attachment screws.
    11. NOTE: Observe the retainer bracket orientation.

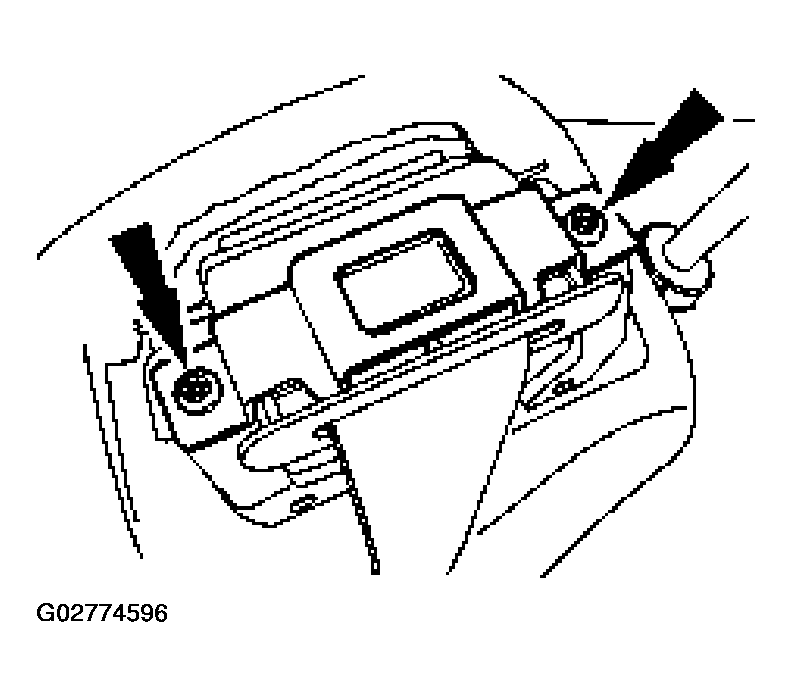

    Fig 8: Removing Screws And Bracket
    G02774596Courtesy of FORD MOTOR CO.
  11. Remove the screws and the bracket.
  12. Using an appropriate pry tool, separate and remove the outer and front safety belt web guides.
    1. Using a pin-type retainer removal tool, release the two pin-type retainers for the web guide.
    2. Remove the front safety belt web guide.
    3. Remove the upper safety belt web guide.
    Fig 9: Removing Upper Safety Belt Web Guide
    G02774597Courtesy of FORD MOTOR CO.
  13. Remove the nut and the safety belt anchor.
    Fig 10: Removing Nut And Safety Belt Anchor
    G02774598Courtesy of FORD MOTOR CO.
    14. NOTE: If reusing the safety belt retractor, do not allow safety belt to completely recoil back into the retractor.
    NOTE: Safety belt retractors are specific to LH or RH seats and are not interchangeable.
    Fig 11: Removing Safety Belt Retractor Through Back Of Seat
    G02774599Courtesy of FORD MOTOR CO.
  14. Remove the safety belt retractor.
    1. Remove the bolt
    2. Remove the safety belt retractor through the back of the seat.
      • Route out the safety belt, guide, tongue and anchor.
