Front Safety Belt Retractor - Seat Integrated Restraint (SIR), SuperCab: Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All seats

    NOTE: Make sure the safety belt webbing is not twisted prior to installation.
    Fig 1: Identifying Safety Belt Guide
    G02774600Courtesy of FORD MOTOR CO.
  1. Route the safety belt anchor, tongue, web guide and safety belt up through the opening at the safety belt guide.
  2. Install the safety belt retractor.
    1. Align the tab into the seat backrest bracket.
    2. Install the bolt.
    Fig 2: Aligning Tab Into Seat Backrest Bracket
    G02774601Courtesy of FORD MOTOR CO.
  3. NOTE: Prior to installation, make sure the safety belt webbing is not twisted.

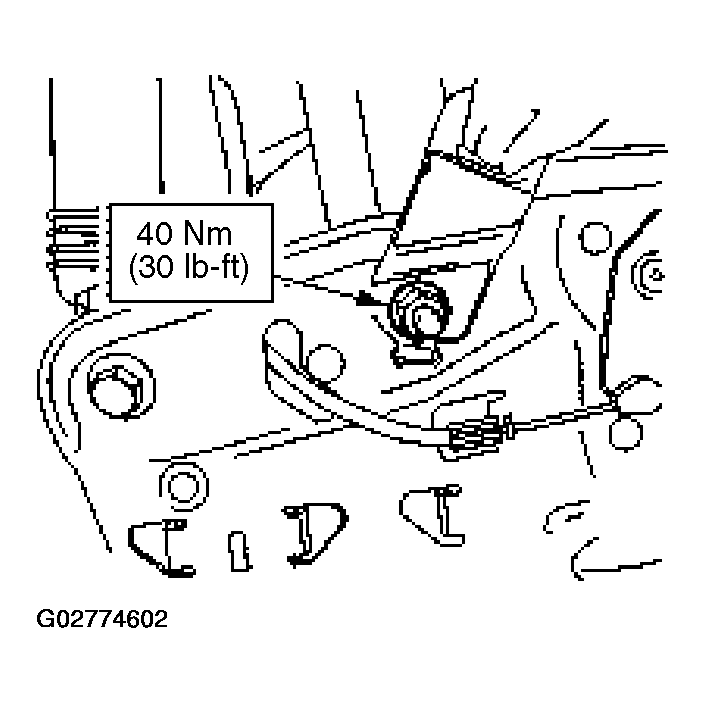

    Fig 3: Installing Safety Belt Anchor And Nut
    G02774602Courtesy of FORD MOTOR CO.
  4. Install the safety belt anchor and nut.
    • Make sure the anti-rotation tab is properly positioned into the seat frame.
  5. Install the safety belt web guides.
    1. Position the front safety belt web guide.
    2. Position the upper safety belt web guide.
    3. Install the pin-type retainers.
    Fig 4: Installing Pin-Type Retainers
    G02774603Courtesy of FORD MOTOR CO.
  6. NOTE: Do not reverse the bracket during installation.

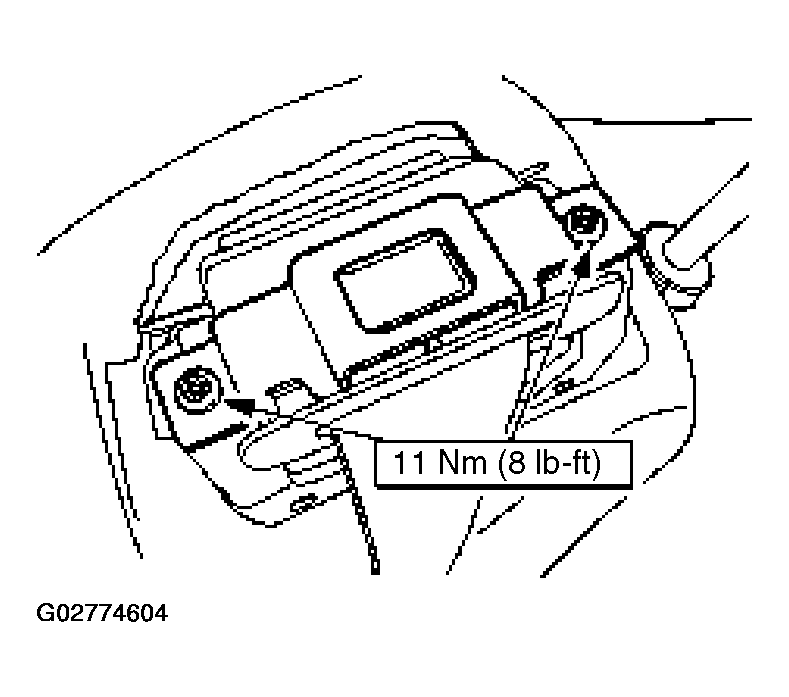

    Fig 5: Installing Bracket
    G02774604Courtesy of FORD MOTOR CO.
  7. Position the bracket as noted in removal. Install the screws.
  8. NOTE: The inboard and outboard tower cap covers are not interchangeable. The outboard cover sits flat on the tower cap. The inboard cover sticks out from the tower cap.
    Fig 6: Installing Inboard, Outboard And Front Screw Covers
    G02774605Courtesy of FORD MOTOR CO.
  9. Install the four tower cap attachment screws. Install the inboard, outboard and front screw covers.
  10. Install the seat backrest trim cover J-clips.

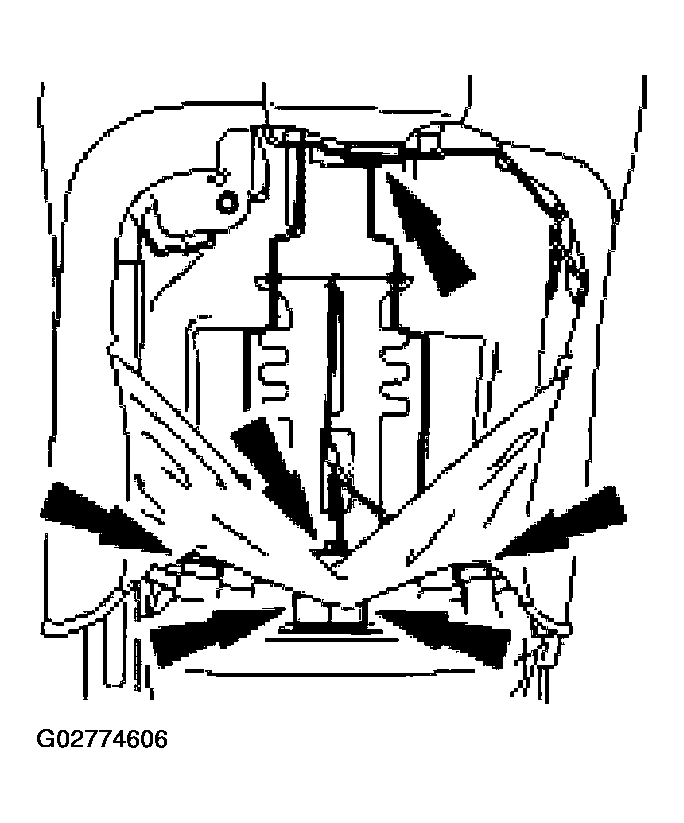

    Fig 7: Installing Seat Backrest Trim Cover J-Clips
    G02774606Courtesy of FORD MOTOR CO.
  11. Install the seat backrest trim panel.
    1. Position the seat backrest trim panel to the seat backrest and lift up, engaging the upper retaining clips.
    2. Push the sides of the seat backrest trim panel together, align the retaining clips to the seat backrest frame wires and release the cover, engaging the retaining clips into the seat backrest frame wire retainer.
    3. Install the seat backrest trim panel pin-type retainers.

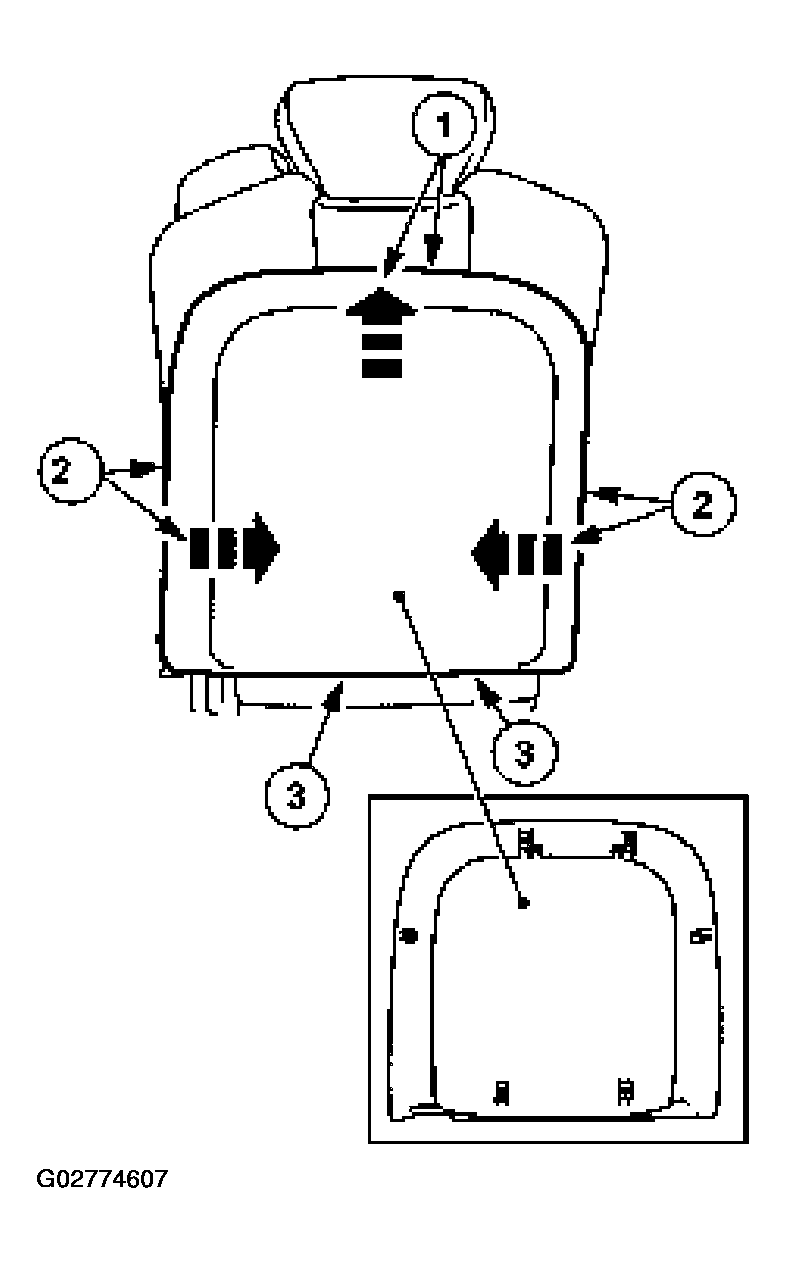

    Fig 8: Installing Seat Backrest Trim Panel Pin-Type Retainers
    G02774607Courtesy of FORD MOTOR CO.
  12. Position the side trim cover onto the seat.
    • Vehicles with power seat, feed the seat control switch wire harness through the seat opening as noted in removal.
    • Align the side shield to the pivot bolt.
    Fig 9: Aligning Side Shield To Pivot Bolt
    G02774608Courtesy of FORD MOTOR CO.

    Vehicles with heated seat

  13. Connect the heated seat switch electrical connector.

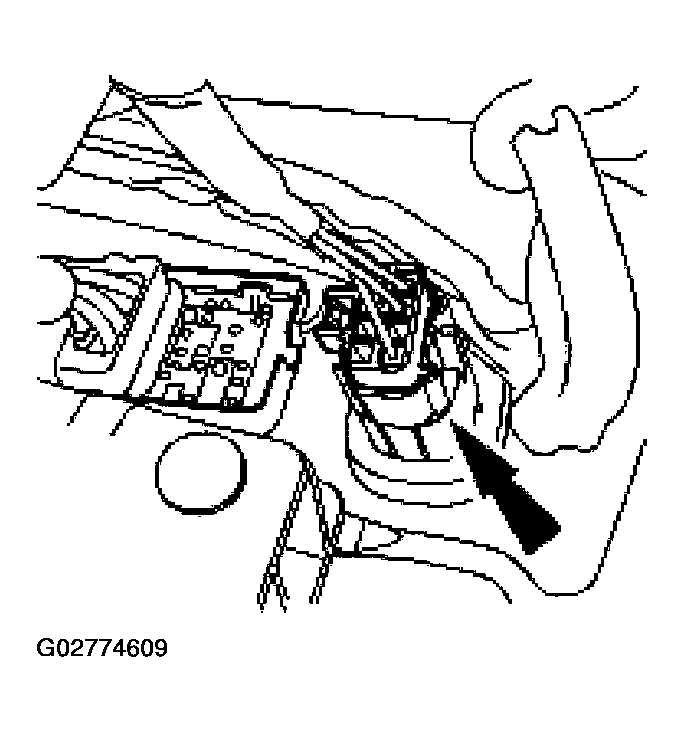

    Fig 10: Connecting Heated Seat Switch Electrical Connector
    G02774609Courtesy of FORD MOTOR CO.

    All seats

  14. Position the lumbar adjuster control. Install the two screws securing the lumbar adjuster control to the seat track riser.
    Fig 11: Installing Lumbar Adjuster Control To Seat Track Riser
    G02774610Courtesy of FORD MOTOR CO.
  15. Install the seat side trim panel screws, the seat adjuster control knob and cover.
    1. Install the three seat side trim panel attachment screws (two shown).
    2. Install the seat recliner lever cover and screw.
    3. Install the lumbar control knob.
    Fig 12: Installing Lumbar Control Knob
    G02774611Courtesy of FORD MOTOR CO.

    Vehicles with power seats

  16. Connect the seat control switch electrical connector.

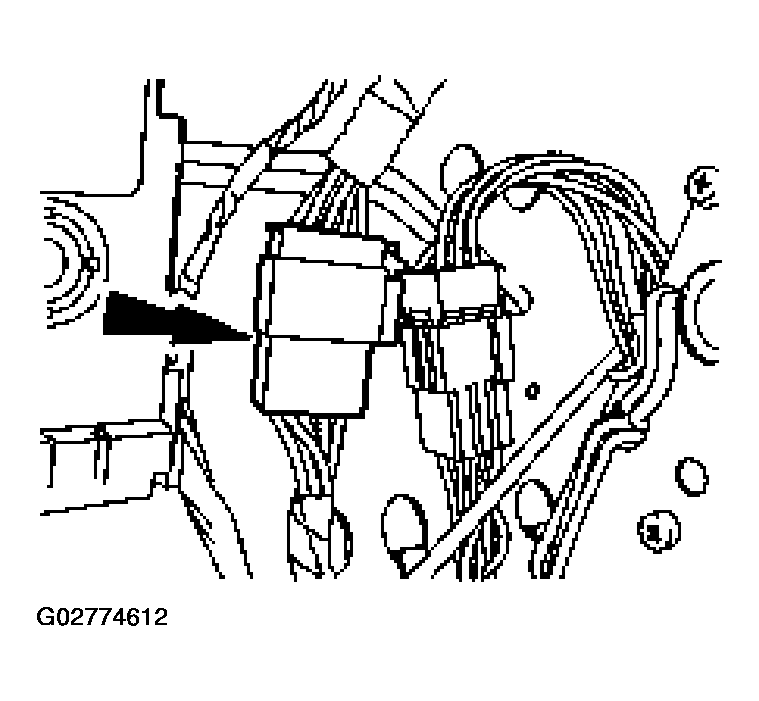

    Fig 13: Connecting Seat Control Switch Electrical Connector
    G02774612Courtesy of FORD MOTOR CO.

    All seats

  17. Install the seat on the side with the affected safety belt retractor. Refer to SEATING .
  18. Repower the SRS. Refer to AIR BAG RESTRAINT SYSTEMS .
  19. Check the active restraints for correct operation. Refer to SAFETY BELT SYSTEM .
