Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate release handle. Refer to TAILGATE RELEASE HANDLE .
  2. Remove the lock cylinder.
    1. Remove the clip.
    2. Remove the lock cylinder.

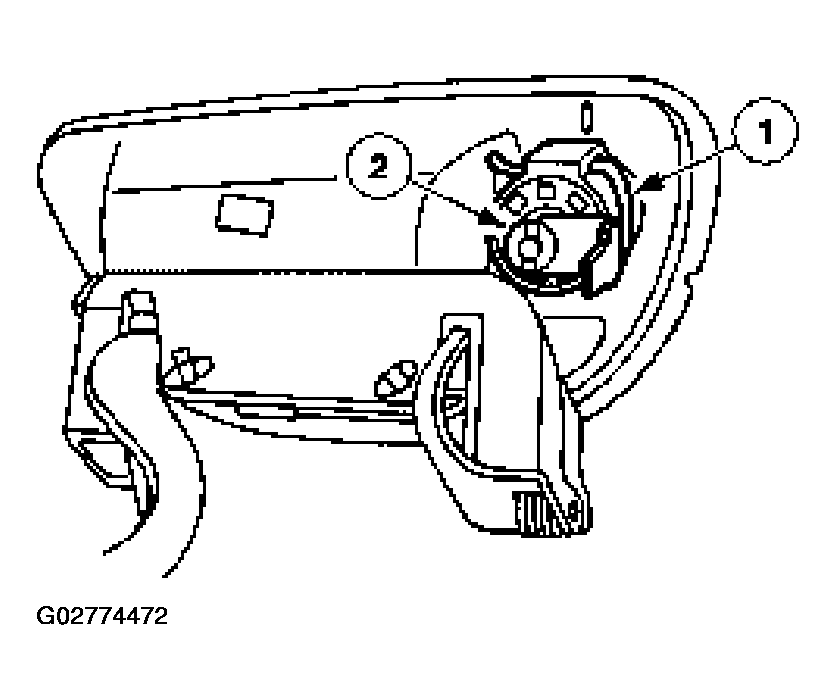

      Fig 1: Removing Lock Cylinder
      G02774472Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
