Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the rear door speaker. Refer to SPEAKERS .
  3. Release the lower door latch cable and conduit from the remote control.
    1. Open the locking clip and release the cable.
    2. Release the cable conduit.

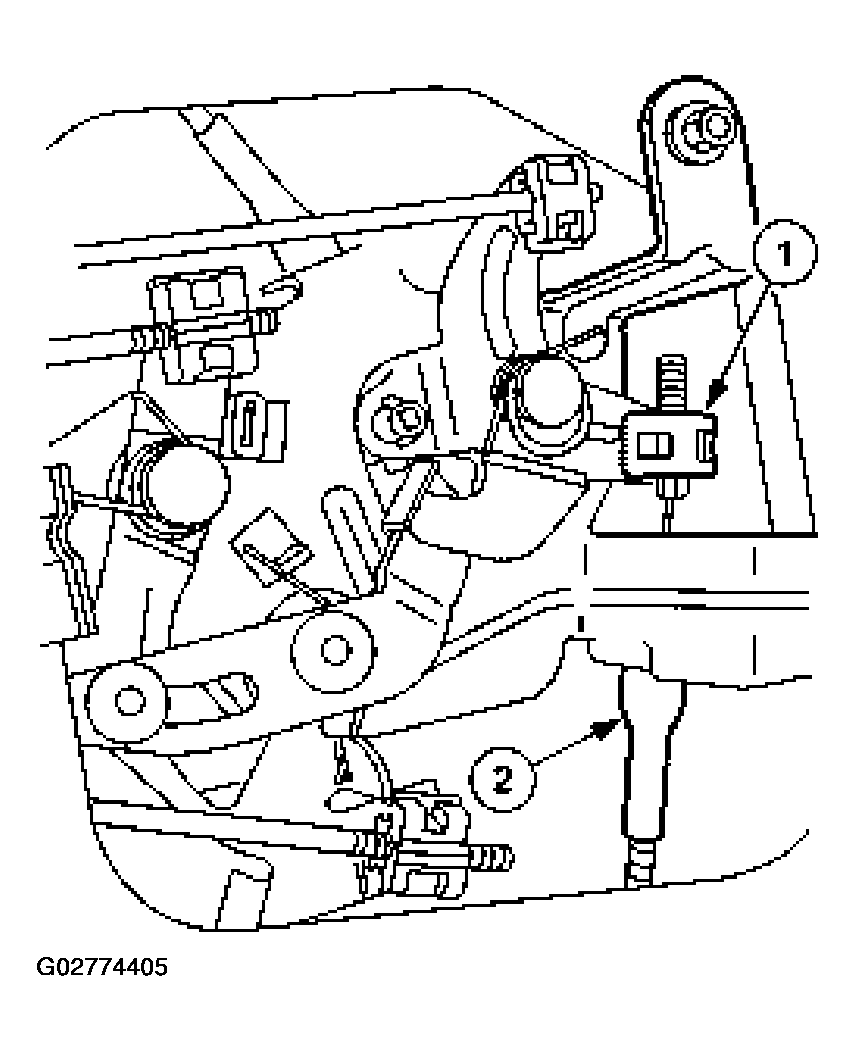

      Fig 1: Releasing Lower Door Latch Cable And Conduit From Remote Control
      G02774405Courtesy of FORD MOTOR CO.
  4. Remove the lower rear door latch.
    • Remove the screws.
      Fig 2: Removing Lower Rear Door Latch Screws
      G02774406Courtesy of FORD MOTOR CO.
    5. NOTE: The linkage must be adjusted during installation. Refer to LATCH CABLE ADJUSTMENT - REAR, SUPERCAB .
  5. To install, reverse the removal procedure.
