Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the powertrain control module (PCM). Refer to ELECTRONIC ENGINE CONTROLS - GASOLINE ENGINES or ELECTRONIC ENGINE CONTROLS - DIESEL ENGINES .
  3. Remove the nuts.

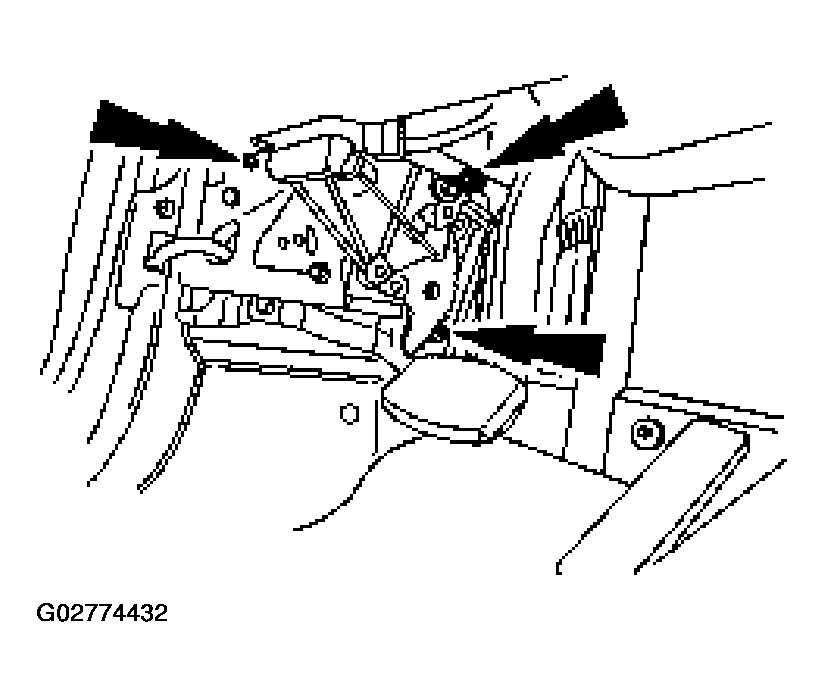

    Fig 1: Removing Nuts
    G02774432Courtesy of FORD MOTOR CO.
  4. Lower the hood latch release/park brake bracket and position aside.
  5. Disconnect the hood latch release cable.
  6. Release the retaining clip from the hood latch release handle to the park brake bracket.
  7. Release the return spring and remove the hood release handle.
  8. To install, reverse the removal procedure.
