Pinpoint Test A: A Single Door Lock Is Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

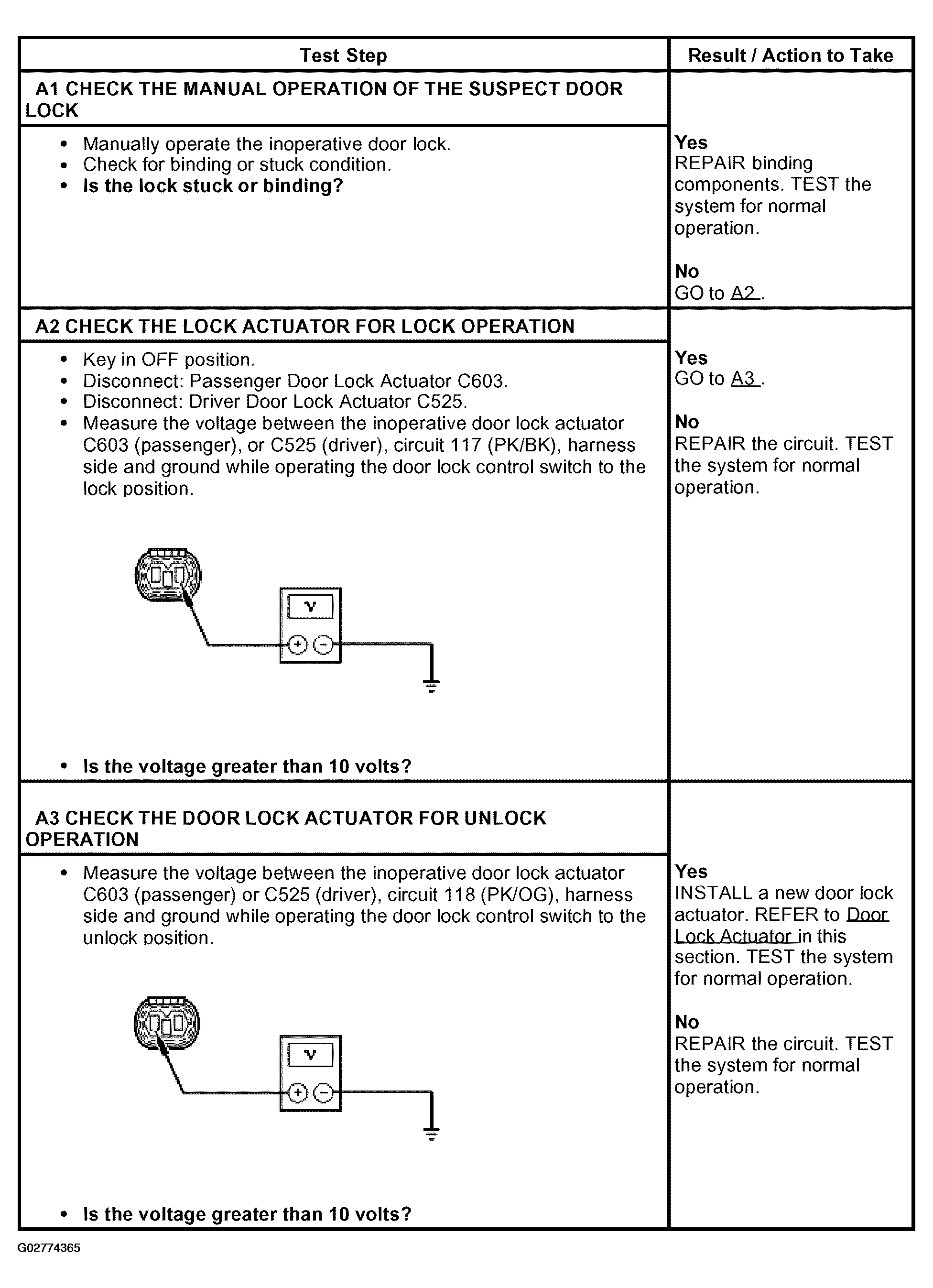

Fig 1: Pinpoint Test A: A Single Door Lock Is Inoperative
G02774365Courtesy of FORD MOTOR CO.
