Pinpoint Test K: The Remote Keyless Entry Transmitter/Wireless Keyless Entry Keypad Is Out Of Synchronization

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: All remote transmitters/wireless keyless entry keypads must be present to begin diagnosis of the remote keyless entry (RKE) system.
NOTE: F-Super Duty vehicles built before 12/03 are equipped with a wireless keyless entry keypad. F-Super Duty vehicles built after 12/03 are equipped with the standard keyless entry keypad.

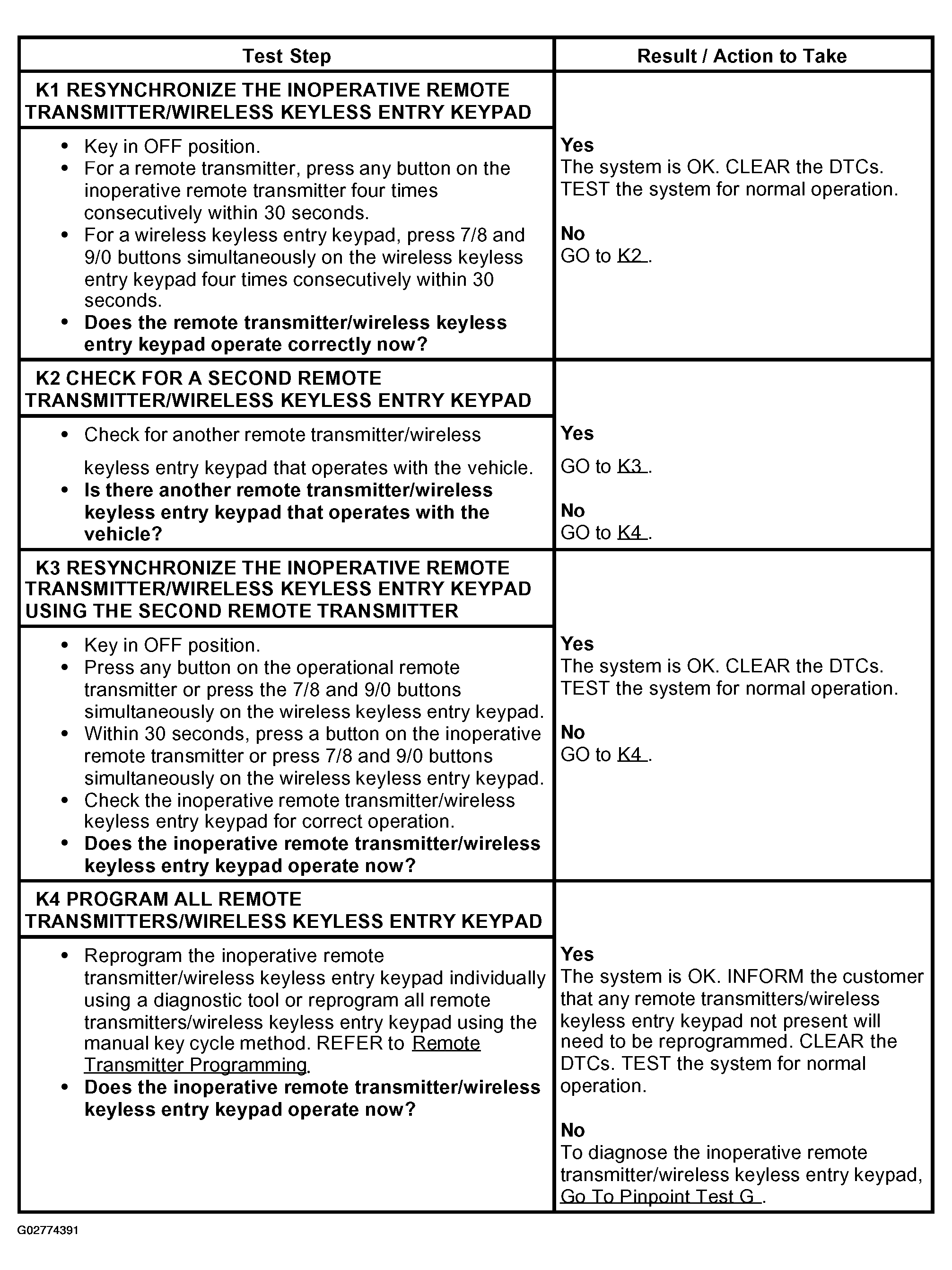

Fig 1: Pinpoint Test K: Remote Keyless Entry Transmitter/Wireless Keyless Entry Keypad Is Out Of Synchronization
G02774391Courtesy of FORD MOTOR CO.
