Pinpoint Test F: The Doors Do Not Lock/Unlock Using The Keyless Entry Keypad (All Excursion And F-Super Duty Vehicles Built After 12/03)

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

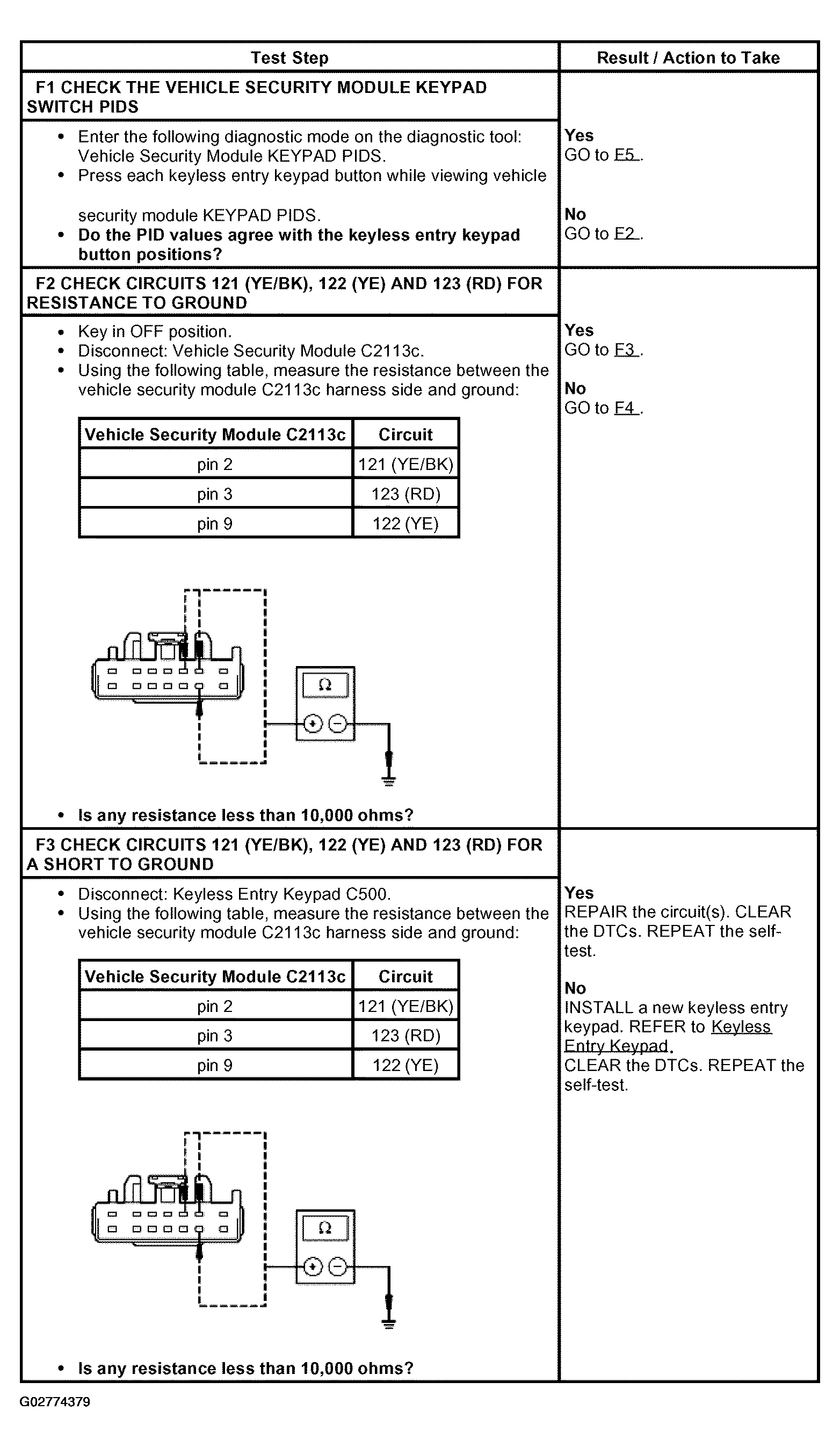

Fig 1: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F1-F3)
G02774379Courtesy of FORD MOTOR CO.

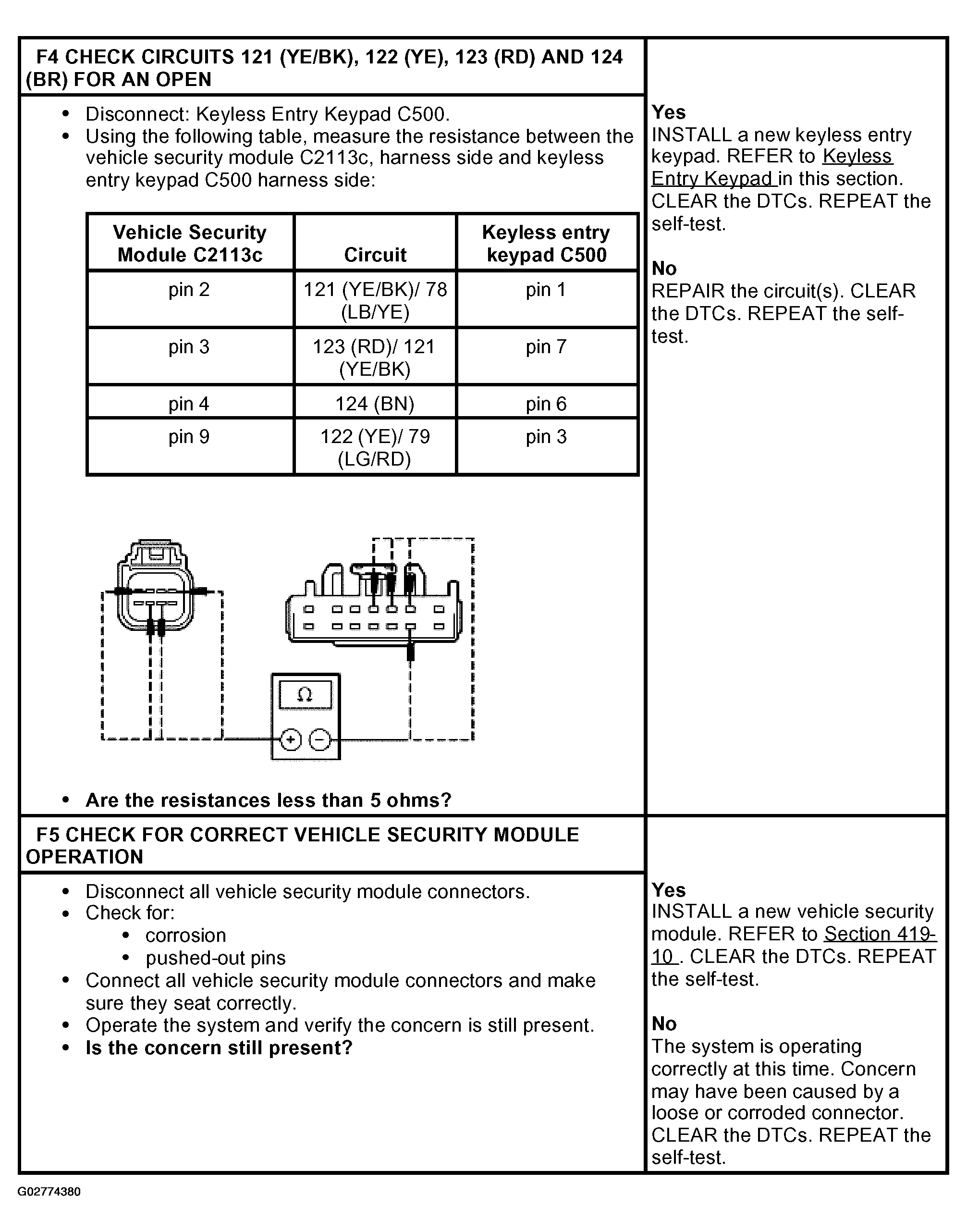

Fig 2: Pinpoint Test F: Doors Do Not Lock/Unlock Using Keyless Entry Keypad (F4 & F5)
G02774380Courtesy of FORD MOTOR CO.
