Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

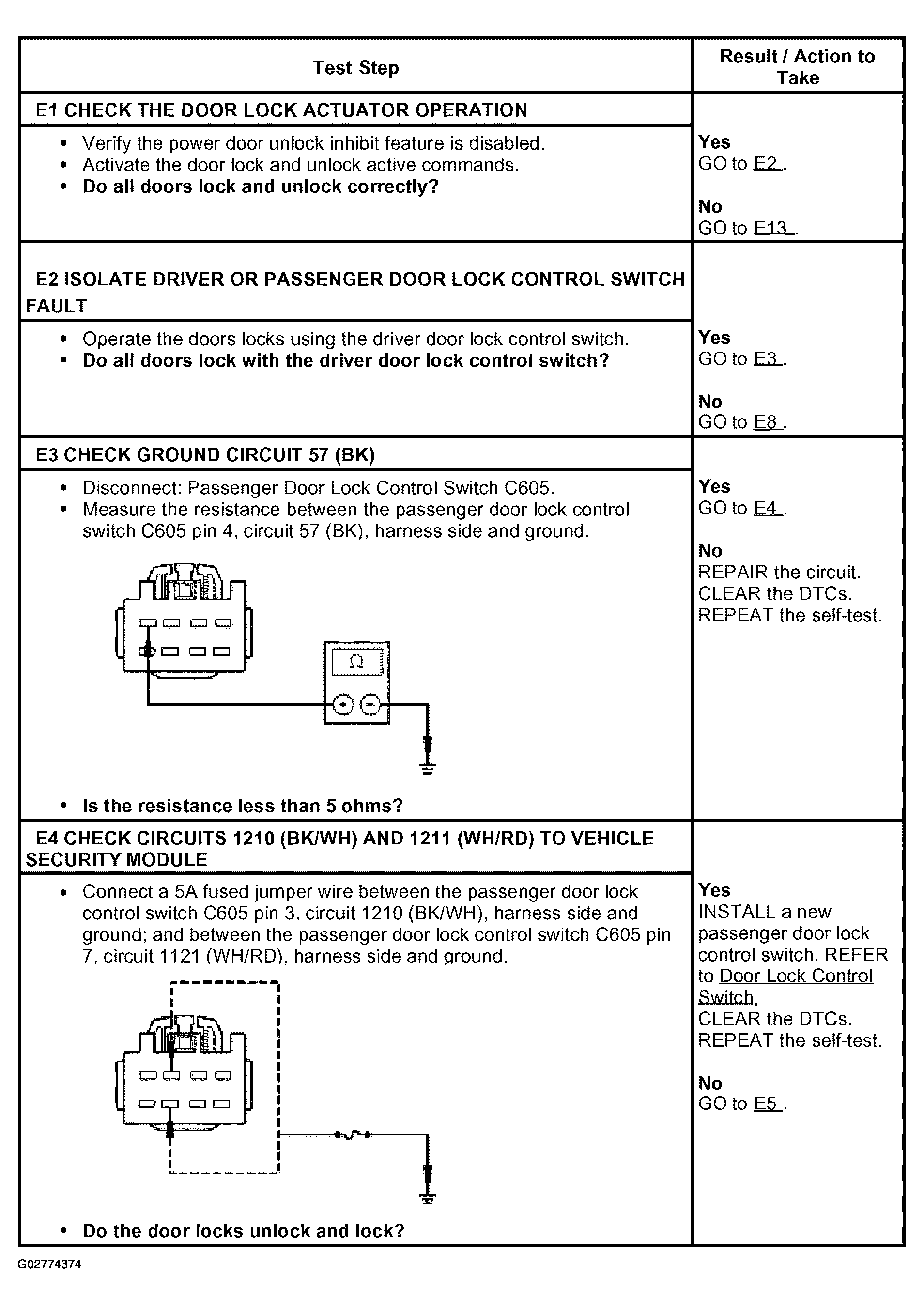

Fig 1: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative (E1-E4)
G02774374Courtesy of FORD MOTOR CO.

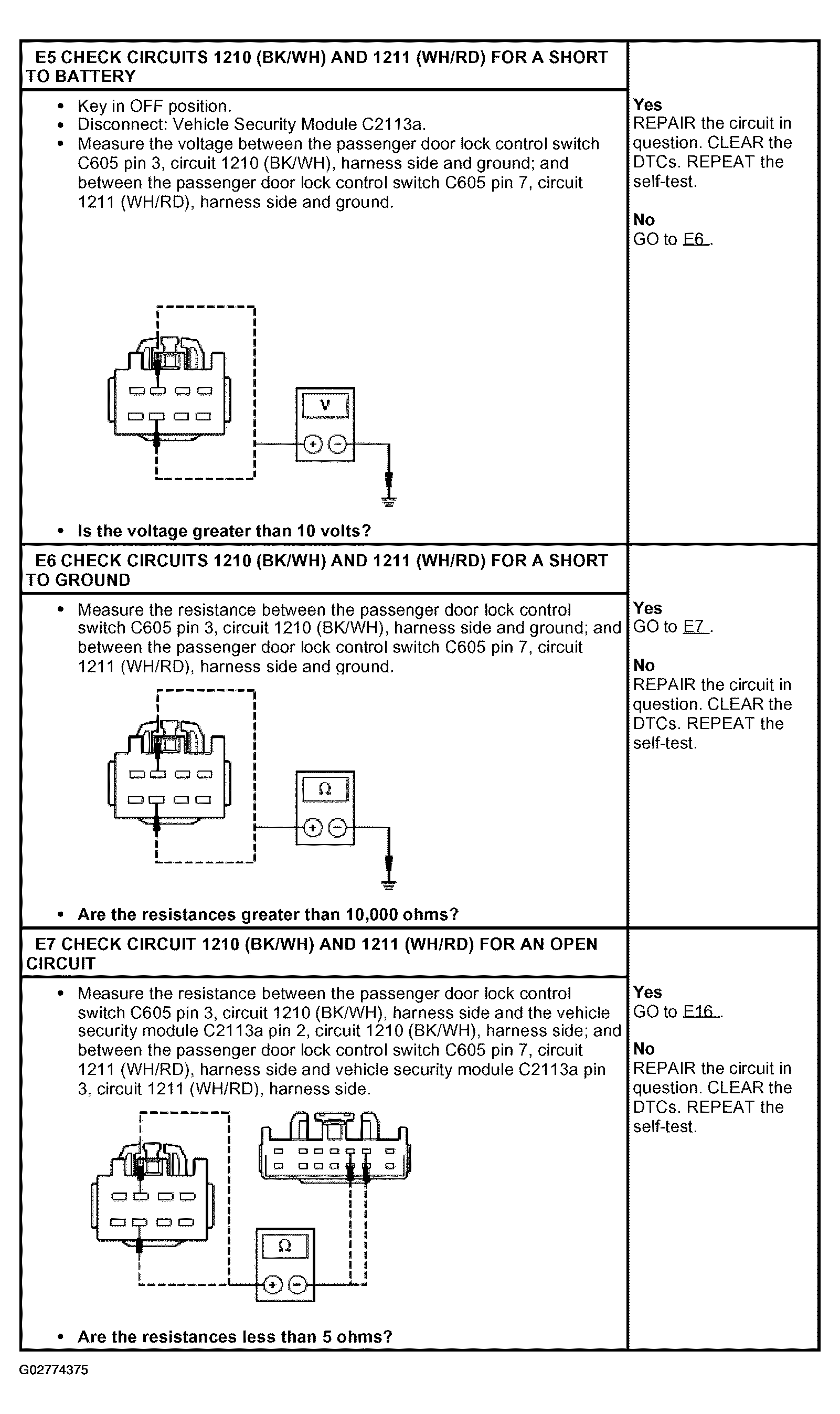

Fig 2: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative (E5-E7)
G02774375Courtesy of FORD MOTOR CO.
Fig 3: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative (E8-E11)
G02774376Courtesy of FORD MOTOR CO.

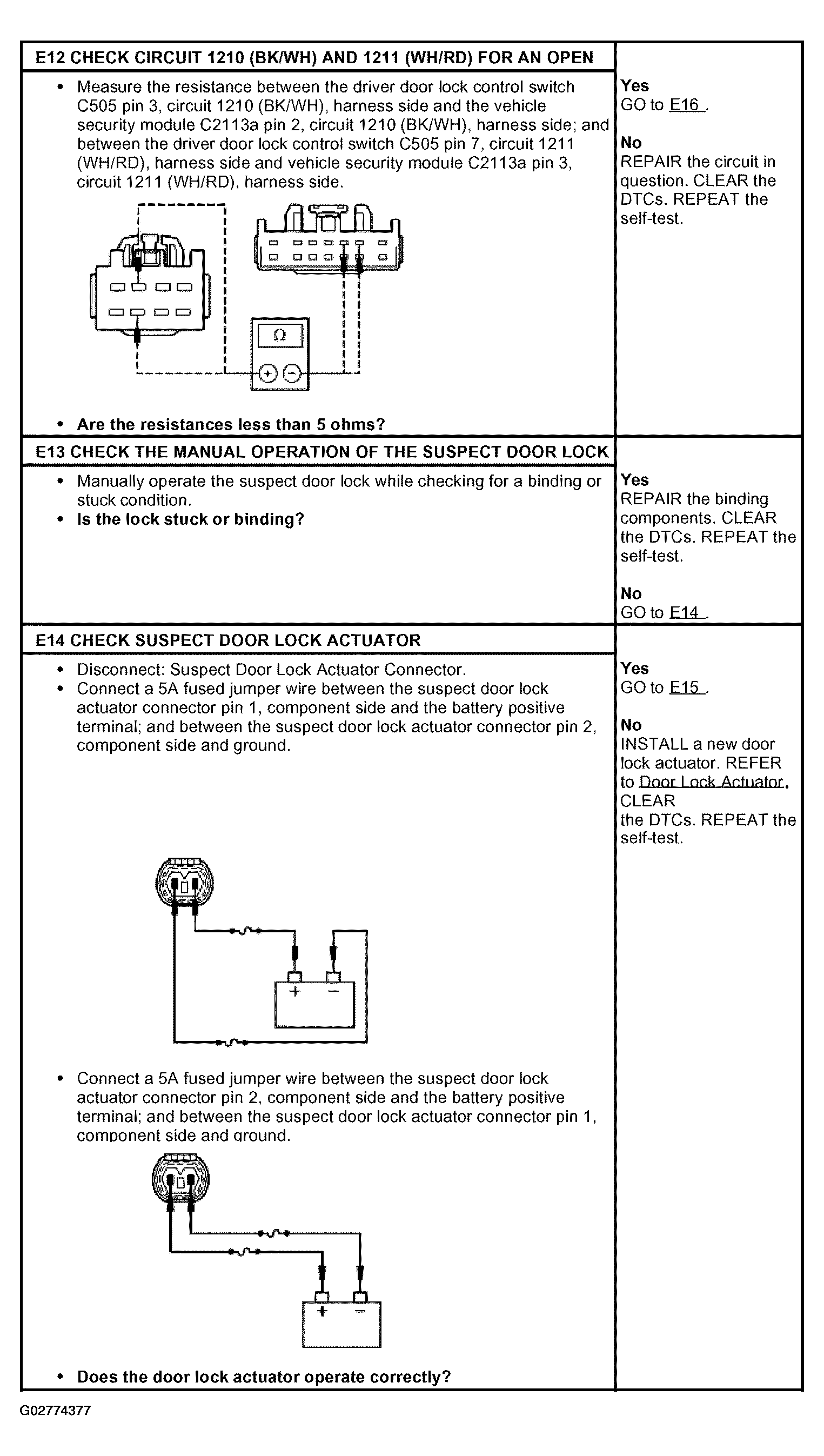

Fig 4: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative (E12-E14)
G02774377Courtesy of FORD MOTOR CO.

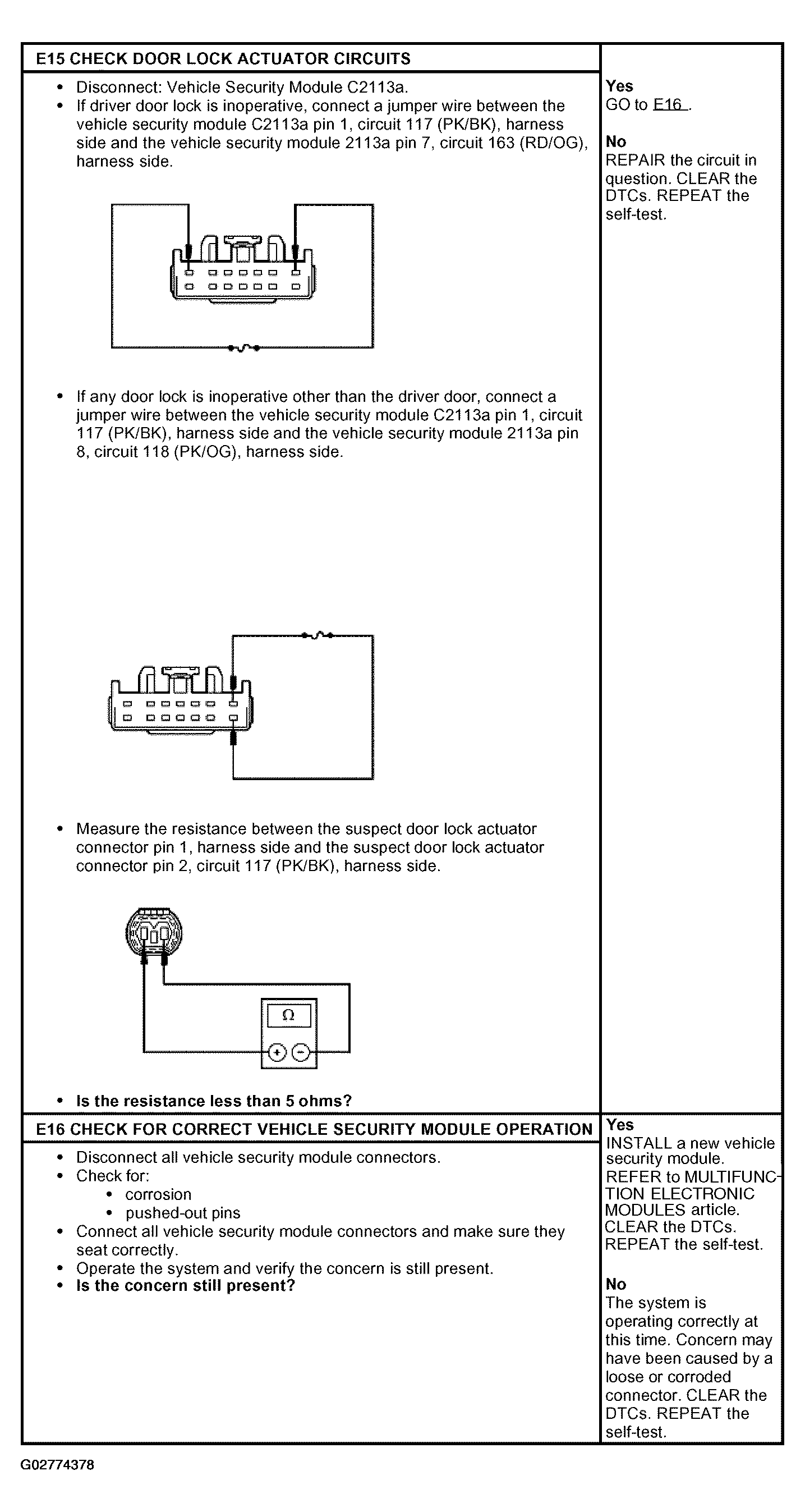

Fig 5: Pinpoint Test E: A Single/More Than One Door Lock Is Inoperative (E15& E16)
G02774378Courtesy of FORD MOTOR CO.
