Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front floor console shown, rear floor console similar.

All vehicles

Open the floor console cover.

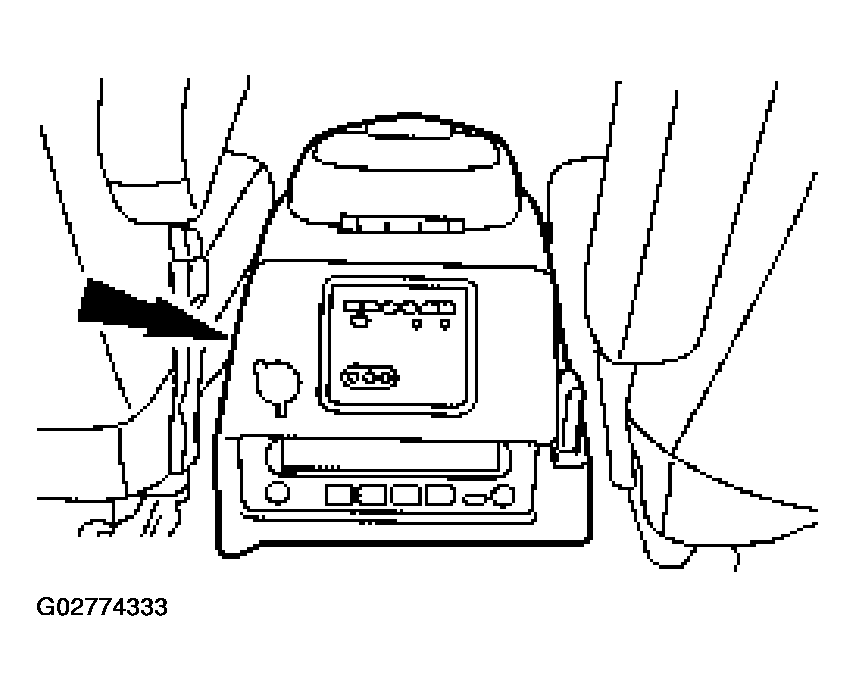

Fig 1: Opening Floor Console Cover
Courtesy of FORD MOTOR CO.
Remove the storage compartment.

Fig 2: Removing Storage Compartment
Courtesy of FORD MOTOR CO.
Remove the console tray mat.
Vehicles not equipped with the rear video entertainment system
Remove the bolts and the floor console.
- If equipped, disconnect the electrical connector.

  Fig 3: Disconnecting Electrical Connector
  Courtesy of FORD MOTOR CO.
Vehicles equipped with the rear video entertainment system
Remove the floor console bolts.

Fig 4: Removing Floor Console Bolts
Courtesy of FORD MOTOR CO.
Remove the floor console.
- Slide the console rearwards to disengage it from the hold down bracket.
- Lift the console to access and disconnect the electrical connectors.

  Fig 5: View Of Floor Console
  Courtesy of FORD MOTOR CO.
All vehicles
To install, reverse the removal procedure.
