Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat. Refer to FRONT SEAT - CAPTAIN'S CHAIR AND 40 PERCENT .
  2. Remove the safety belt buckle nut and disconnect the usage detection switch electrical connector, and remove safety belt buckle.
  3. Remove the bolts.

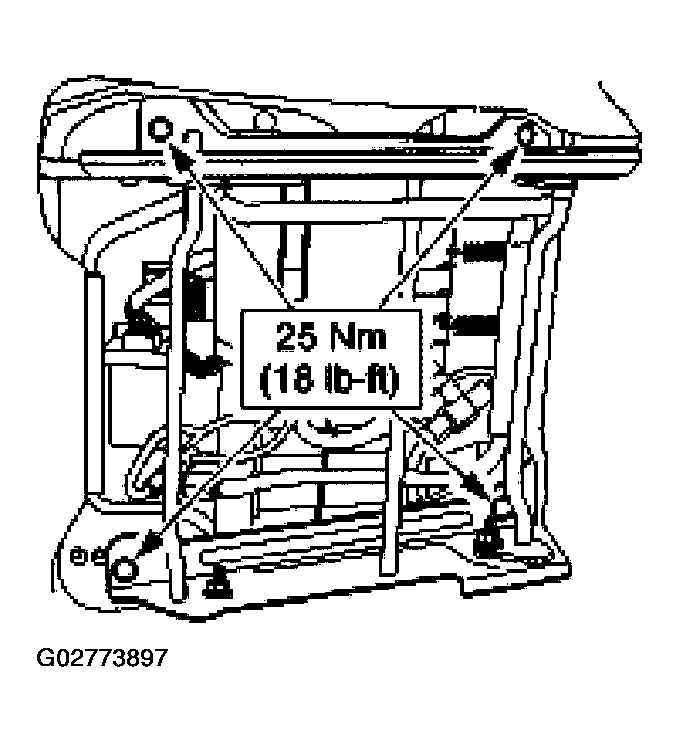

    Fig 1: Removing Safety Belt Buckle Nut
    G02773897Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connector.

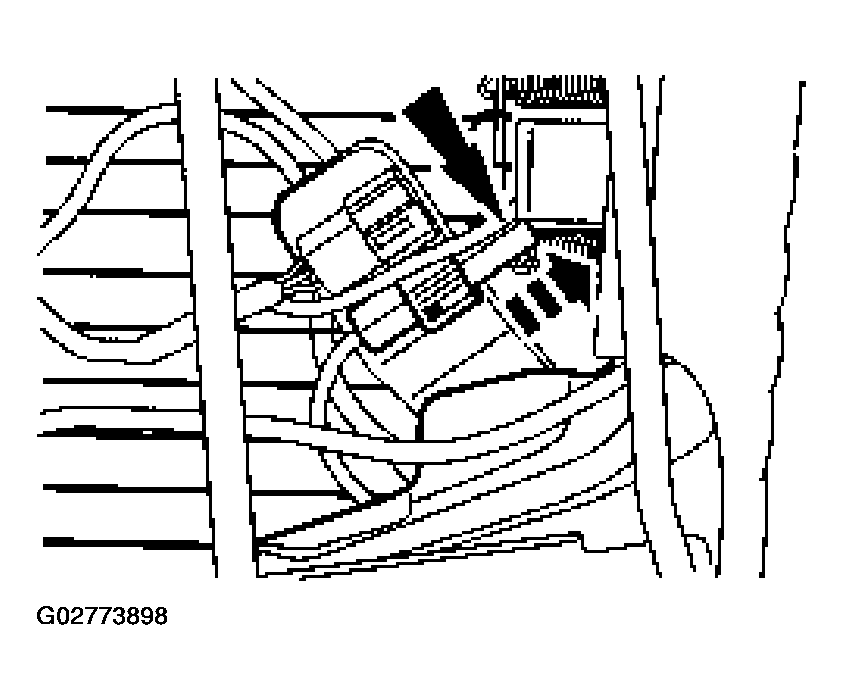

    Fig 2: Disconnecting Electrical Connector
    G02773898Courtesy of FORD MOTOR CO.
  5. Remove the electrical harness pin-type retainer.

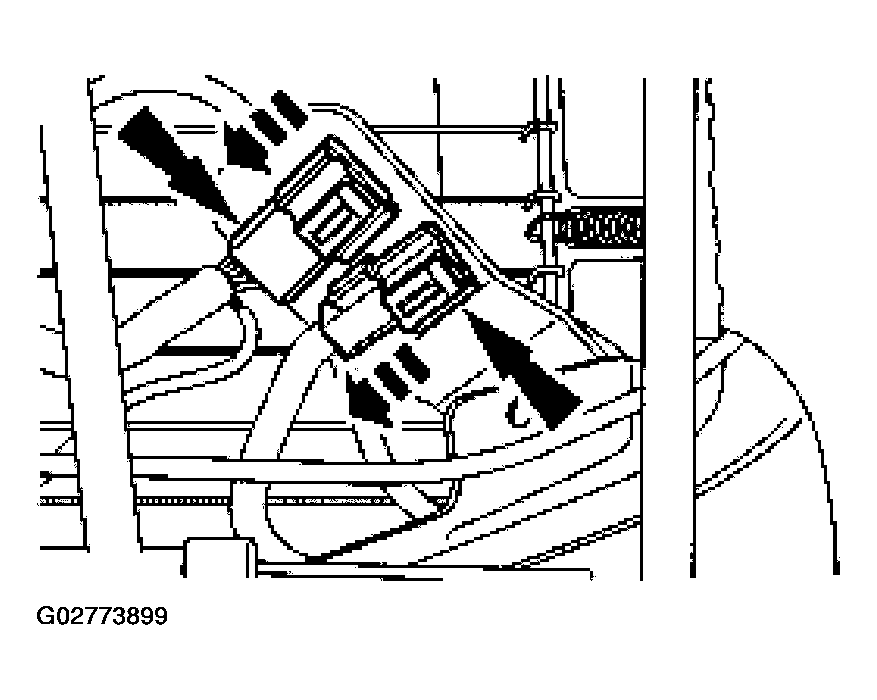

    Fig 3: Removing Electrical Harness Pin-Type Retainer
    G02773899Courtesy of FORD MOTOR CO.
  6. Disconnect the seat motor electrical connector.

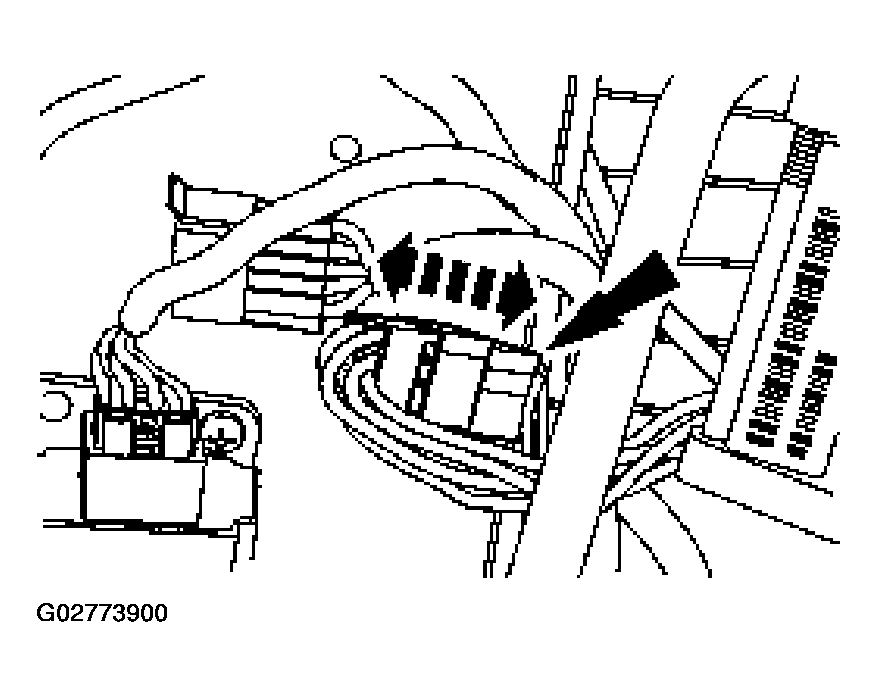

    Fig 4: Disconnecting Seat Motor Electrical Connector
    G02773900Courtesy of FORD MOTOR CO.
  7. Remove the seat track.
  8. To install, reverse the removal procedure.
