Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the seat backrest. Refer to FRONT SEAT BACKREST - BENCH .

NOTE: LH side shown, RH similar.

Fig 1: Removing Both Recliner Handle Clips

Courtesy of FORD MOTOR CO.

Remove both the recliner handle clips and remove the handles.
Release the J-clip and invert the backrest trim up to expose the recliner latches.

Fig 2: Releasing J-Clip
Courtesy of FORD MOTOR CO.
Position the backrest foam pad up for access to the recliner bolts.

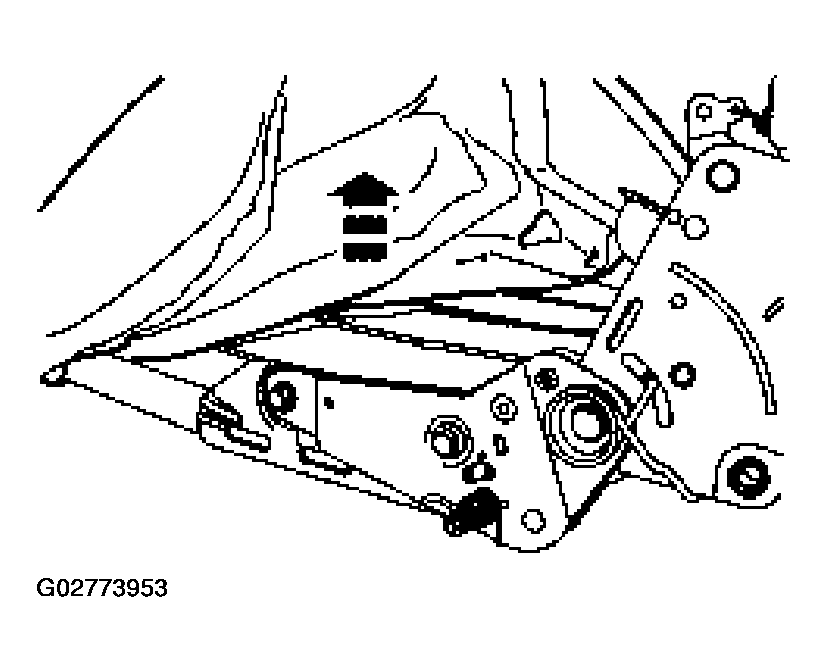

Fig 3: Positioning Backrest Foam Pad Up For Access To Recliner Bolts
Courtesy of FORD MOTOR CO.
Remove the two LH backrest recliner bolts.

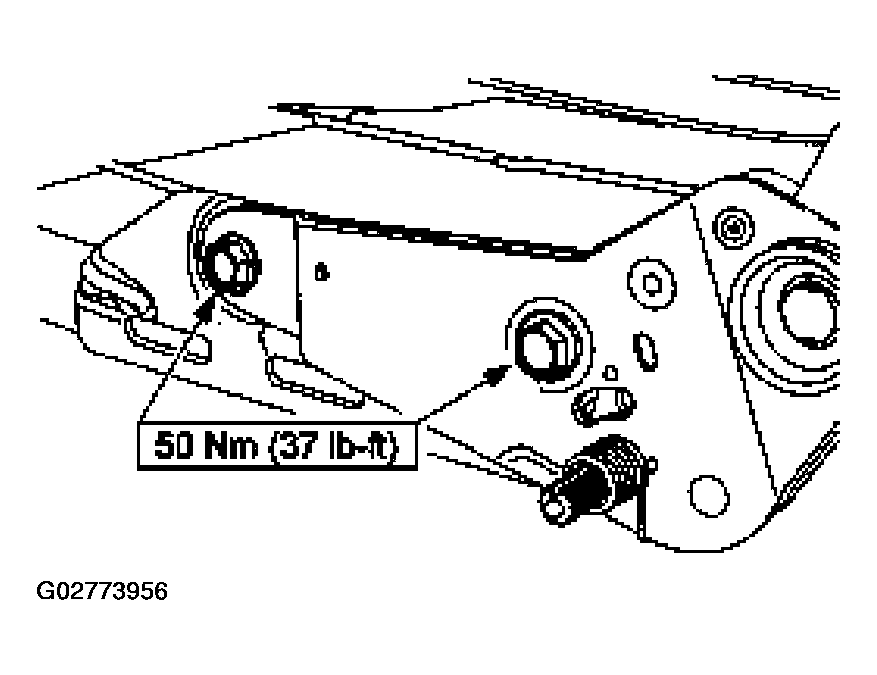

Fig 4: Removing LH Backrest Recliner Bolts
Courtesy of FORD MOTOR CO.

NOTE: During installation, make sure the recliner latches are seated in the adjusting rod before installing the recliner latch bolts.

Remove the LH recliner latch and adjusting rod.
1. Remove the LH recliner latch from the adjusting rod.
2. Remove the recliner adjusting rod from the RH recliner latch and slide the adjusting rod out of the seat frame tubes.

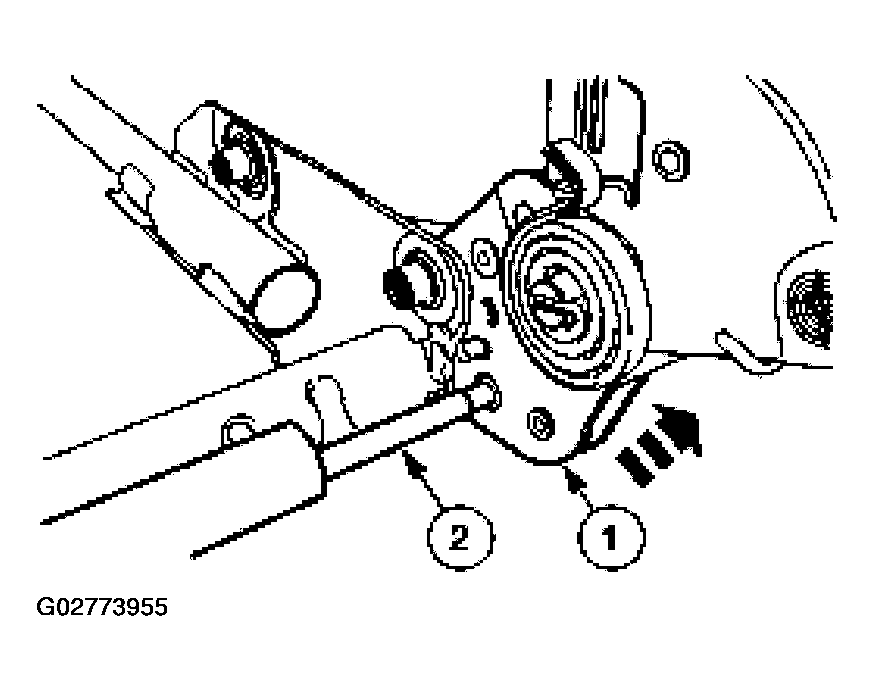

  Fig 5: Removing LH Recliner Latch From Adjusting Rod
  Courtesy of FORD MOTOR CO.
Remove the two RH backrest recliner bolts and remove the recliner latch.

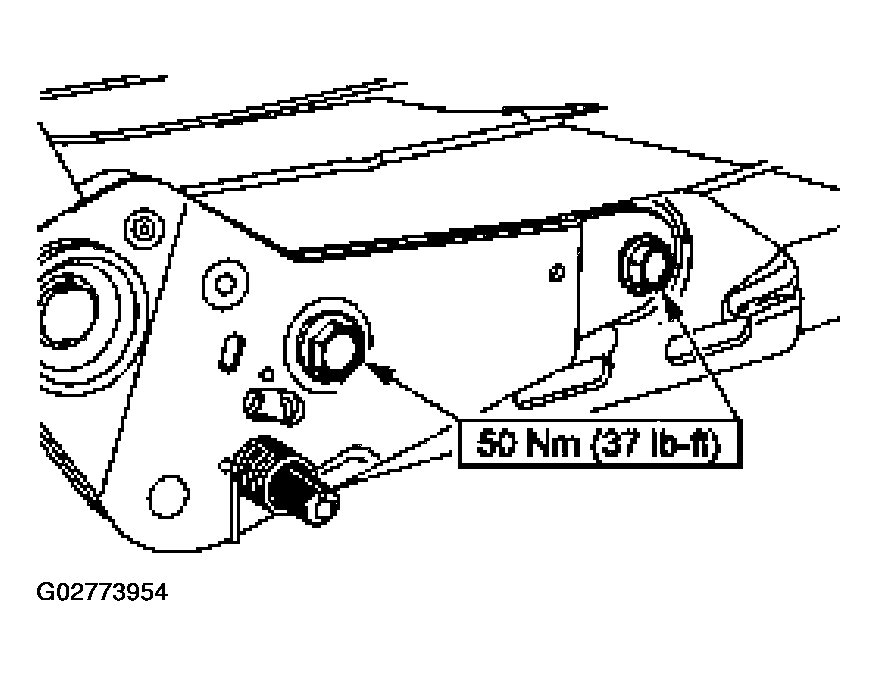

Fig 6: Removing RH Backrest Recliner Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
