Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat back. Refer to FRONT SEAT BACKREST - CAPTAIN'S CHAIR AND 40 PERCENT .
  2. Release the J-clip.

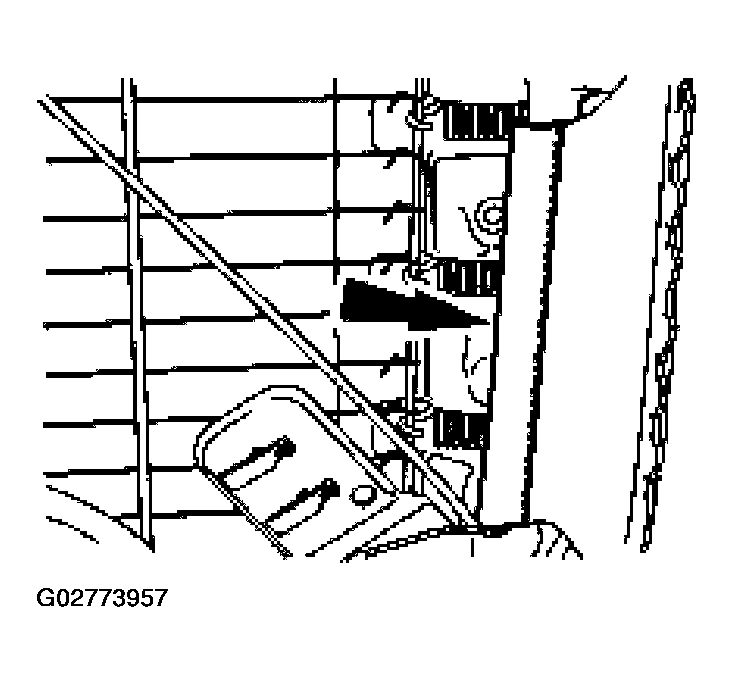

    Fig 1: Releasing J-Clip
    G02773957Courtesy of FORD MOTOR CO.
  3. Remove the seat latch bolts, and remove latch.
    Fig 2: Removing Seat Latch Bolts
    G02773958Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
