Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All seats

Remove the seat. Refer to FRONT SEAT - CAPTAIN'S CHAIR AND 40 PERCENT .
Remove the lumbar knob.

Fig 1: Removing Lumbar Knob
Courtesy of FORD MOTOR CO.
Remove the seat backrest lever.

Fig 2: Removing Seat Backrest Lever
Courtesy of FORD MOTOR CO.
Remove the screws.

Fig 3: Removing Screws
Courtesy of FORD MOTOR CO.
Remove the pin-type retainer.

Fig 4: Removing Pin-Type Retainer
Courtesy of FORD MOTOR CO.

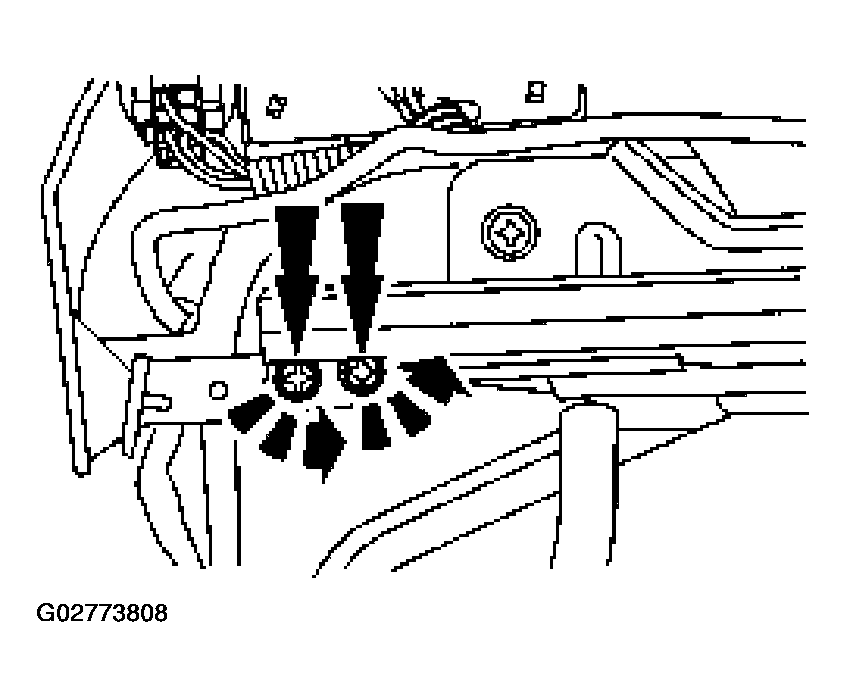

Remove the screws.

Fig 5: Removing Screws
Courtesy of FORD MOTOR CO.

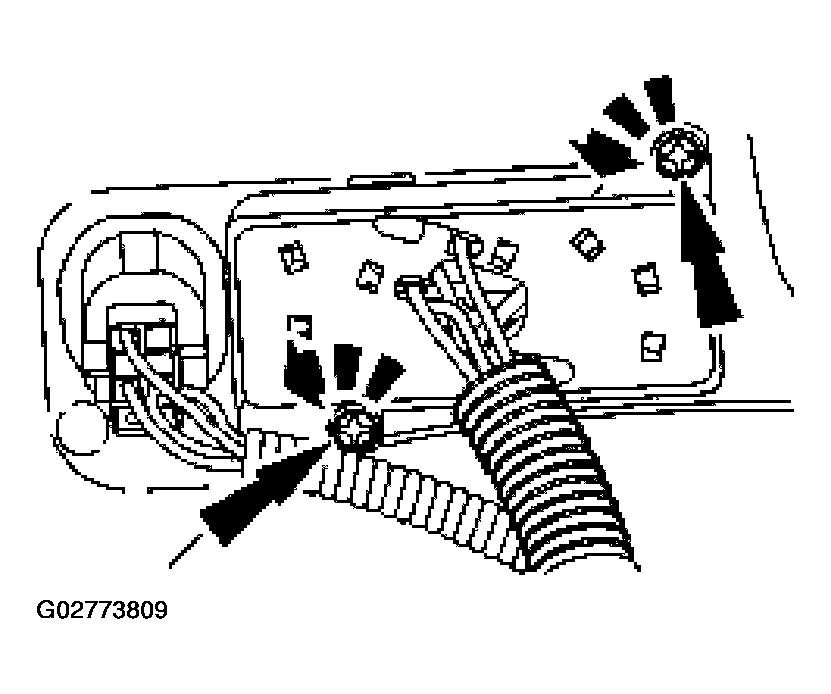

Remove the screws.

Fig 6: Removing Screws
Courtesy of FORD MOTOR CO.

Vehicles with heated seats

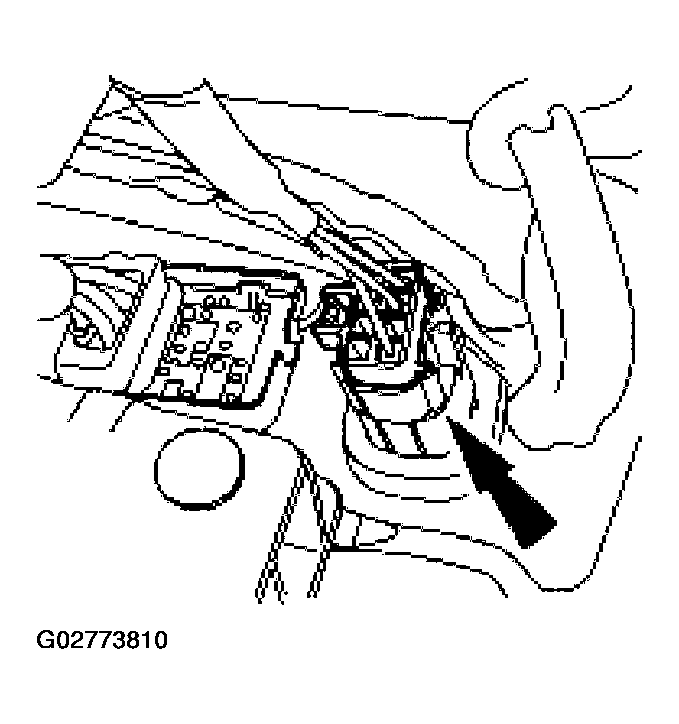

Disconnect heated seat switch electrical connector.

Fig 7: Disconnecting Heated Seat Switch Electrical Connector
Courtesy of FORD MOTOR CO.

All seats

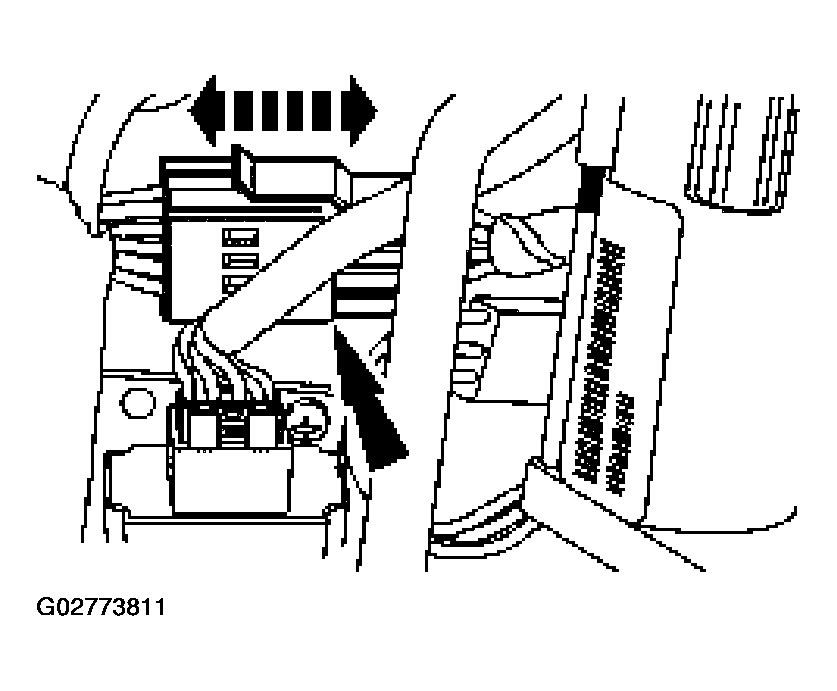

Disconnect the electrical connector and remove the seat control switch.

Fig 8: Removing Seat Control Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
