Seat Control Switch - With Seat Integrated Restraints (SIR): Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Position the seat control switch and install two screws.

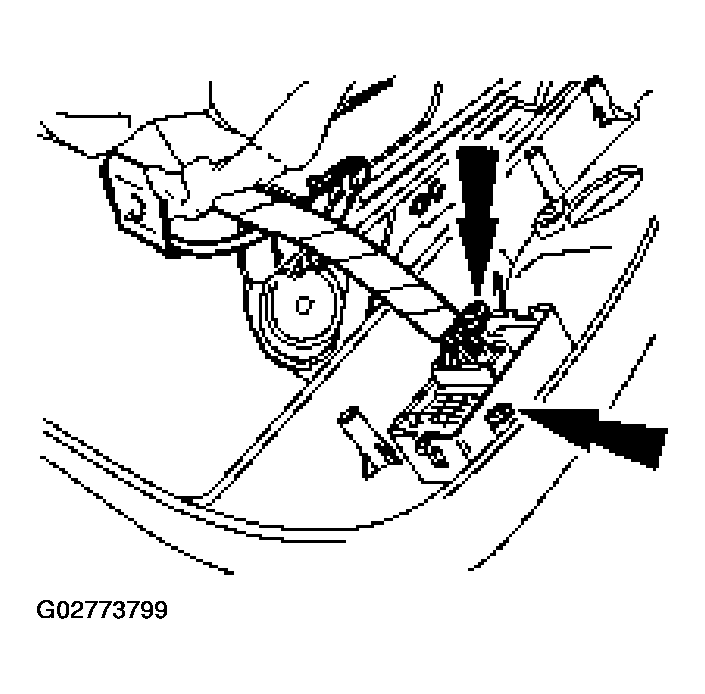

Fig 1: Positioning Seat Control Switch
Courtesy of FORD MOTOR CO.
Connect the seat control switch electrical connector.

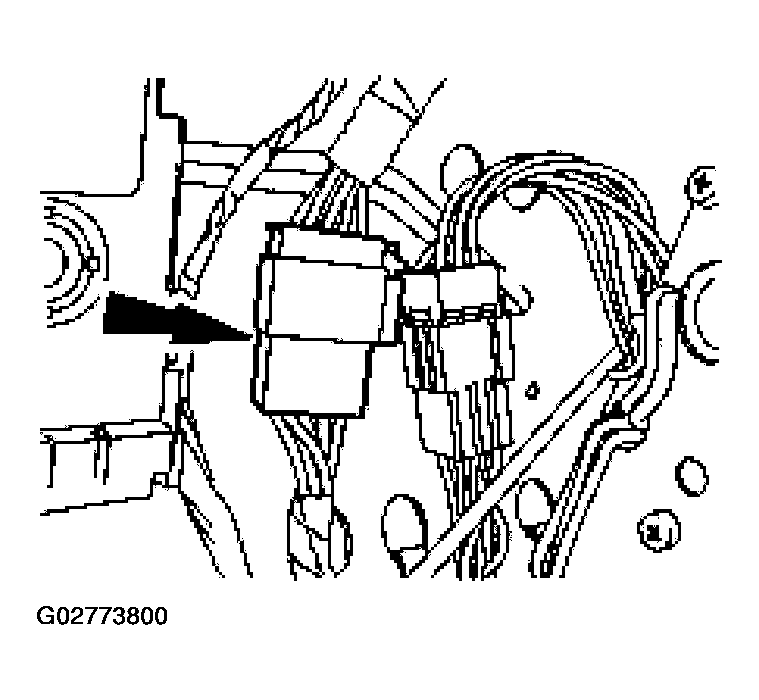

Fig 2: Connecting Seat Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.

NOTE: Bend the side shield slightly to insure the shield is not scratched by the recliner lever.

Position the side trim cover. Install the three trim cover screws.
- The seat backrest pivot bolt shaft must be inserted into the cover standoff.

  Fig 3: Installing Trim Cover Screws
  Courtesy of FORD MOTOR CO.
Push the rearward lower corner of the side shield to engage the metal retaining clip.
Position the lumbar adjuster control. Install the two mounting screws. Install the adjuster knob.

Fig 4: Installing Adjuster Knob
Courtesy of FORD MOTOR CO.
Position the seat back recliner lever cover. Install the screw.

Fig 5: Installing Seat Back Recliner Lever Cover Screws
Courtesy of FORD MOTOR CO.
Install the front seat. Refer to FRONT SEAT - WITH SEAT INTEGRATED RESTRAINTS (SIR) .
Repower the SRS. Refer to AIR BAG RESTRAINT SYSTEMS .
