Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. From the bottom of the seat backrest, push the seat backrest upward, then pull the bottom outward and remove from vehicle.

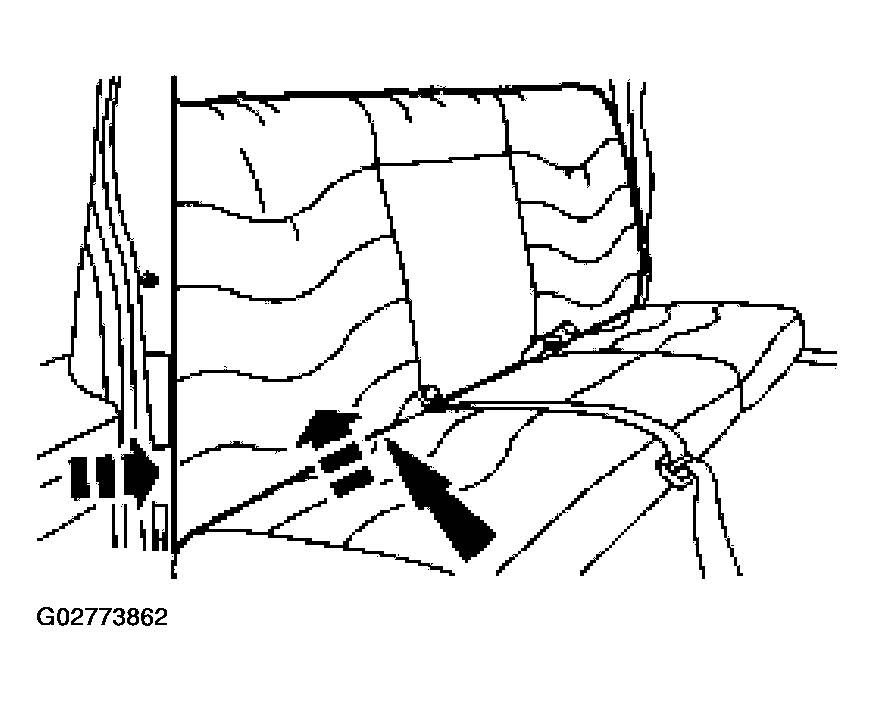

    Fig 1: Pushing Seat Backrest Upward
    G02773862Courtesy of FORD MOTOR CO.
    2. NOTE: Make sure all seat backrest hooks are in place.
  2. To install, reverse the removal procedure.
  3. Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .
