Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear quad bucket seats from the vehicle. Refer to REAR SEAT - QUAD BUCKET, CREW CAB .
  2. Remove the lumbar knob.
    Fig 1: Removing Lumbar Knob
    G02773863Courtesy of FORD MOTOR CO.
  3. Remove the side shield screw.
    Fig 2: Removing Side Shield Screw
    G02773864Courtesy of FORD MOTOR CO.
  4. Remove the recliner handle cover screw and remove the handle cover.
    Fig 3: Removing Recliner Handle Cover Screw
    G02773865Courtesy of FORD MOTOR CO.
  5. Remove the screw from the behind the recliner handle.
    Fig 4: Removing Screw From Behind Recliner Handle
    G02773866Courtesy of FORD MOTOR CO.
  6. Remove the pin-type retainer from the rear of the side shield.
    Fig 5: Removing Pin-Type Retainer From Rear Of Side Shield
    G02773867Courtesy of FORD MOTOR CO.
  7. Remove the two screws from under the front of the side shield.

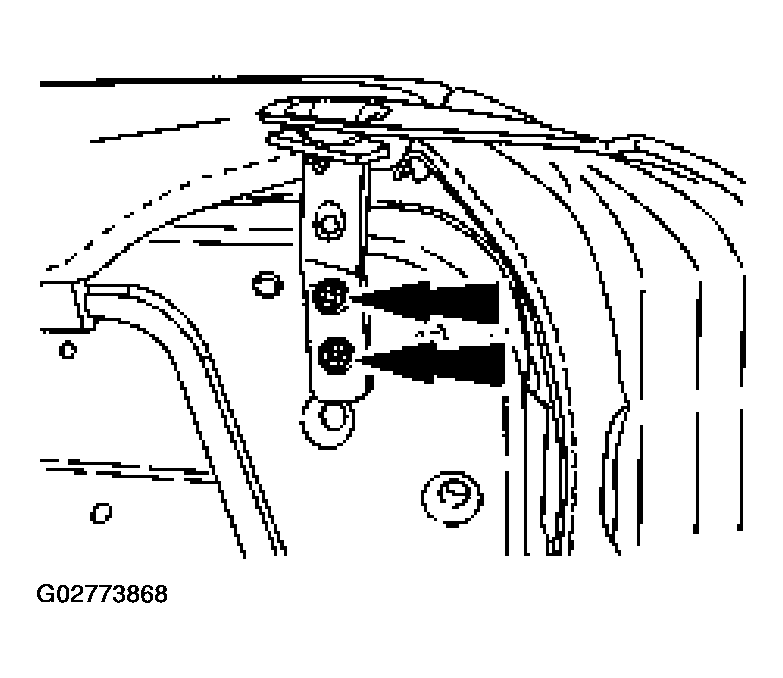

    Fig 6: Removing Screws From Under Front Of Side Shield
    G02773868Courtesy of FORD MOTOR CO.
  8. Remove the side shield, being careful not to scratch the side shield at the recliner handle.
  9. Remove the two screws and remove the lumbar adjuster.
    Fig 7: Removing Lumbar Adjuster
    G02773869Courtesy of FORD MOTOR CO.
    10. NOTE: The lumbar assembly must be fully relaxed.
    Fig 8: Uncliping Lumbar Control Cable From Actuator
    G02773870Courtesy of FORD MOTOR CO.
  10. Unclip the lumbar control cable from the actuator.
    11. NOTE: Note the route of the lumbar cable for installation.
  11. Route the lumbar cable through the seat cushion and frame.
  12. Remove the two cushion-to-latch bolts.
    Fig 9: Removing Cushion-To-Latch Bolts
    G02773871Courtesy of FORD MOTOR CO.
    13. NOTE: Do not damage the plastic pivot bushing when removing the seat backrest. Pull the front seat backrest away from the seat hinge and feed the lumbar cable and heating element wire through the seat cushion opening.
    Fig 10: Removing Backrest Assembly
    G02773872Courtesy of FORD MOTOR CO.
  13. Carefully pry the backrest pivot bushing apart from the cushion pin and remove the backrest assembly.
  14. To install, reverse the removal procedure.
