Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

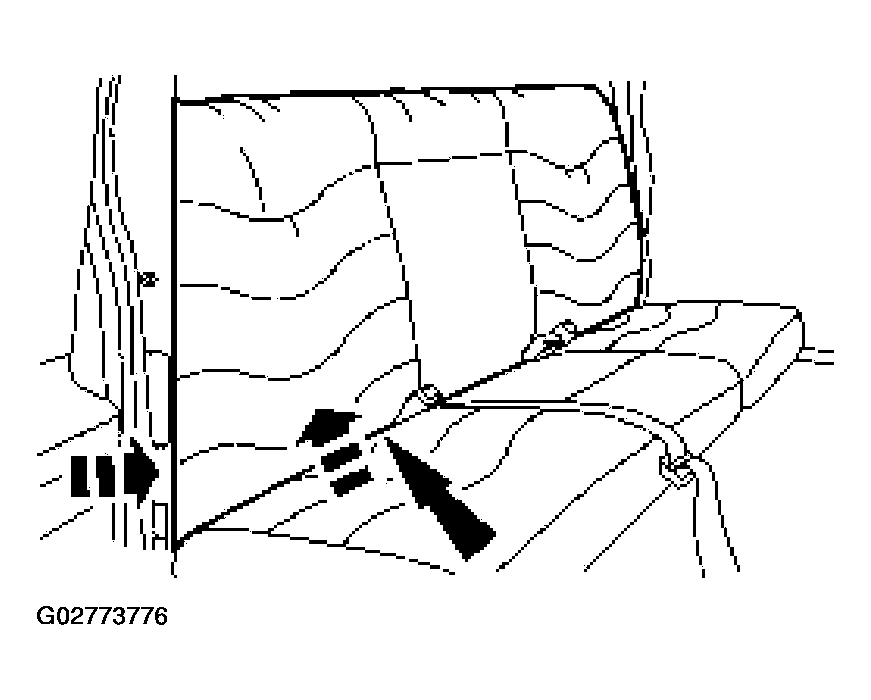

  1. From the bottom of the seat backrest, push the seat backrest upward, then pull the bottom outward and remove from vehicle.
    Fig 1: Pulling Bottom Outward
    G02773776Courtesy of FORD MOTOR CO.
  2. Position the seat cushions back, then remove the bolts.
    Fig 2: Removing Bolts
    G02773777Courtesy of FORD MOTOR CO.
  3. Remove the bolt.
    Fig 3: Removing Bolt
    G02773778Courtesy of FORD MOTOR CO.
  4. Remove the nut and bolt.
    Fig 4: Removing Nut And Bolt
    G02773779Courtesy of FORD MOTOR CO.
  5. Remove the nut.
    Fig 5: Removing Nut
    G02773780Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
  7. Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .
    • Make sure the safety belt webbing is not twisted prior to installation.
