Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removing the rear seat requires more than one technician.

Vehicles with second row center console

Remove the center console. Refer to INSTRUMENT PANEL AND CONSOLE .
All vehicles
Remove the safety belt buckles from the retaining strap on both rear seats.

Fig 1: Removing Safety Belt Buckles From Retaining Strap On Both Rear Seats
Courtesy of FORD MOTOR CO.
Remove the two seat riser-to-floor front bolts (one shown).

Fig 2: Removing Seat Riser-To-Floor Front Bolts
Courtesy of FORD MOTOR CO.
Remove the two seat riser-to-floor rear nuts (one shown).

Fig 3: Removing Seat Riser-To-Floor Rear Nuts
Courtesy of FORD MOTOR CO.
Position the front seats forward for access to remove the rear seats.

NOTE: Removing the rear seat requires more than one technician.

Lift the rear seats off of the floor and rotate forward 180 degrees.
Remove the seats from the vehicle.

NOTE: Left seat shown, right seat similar.

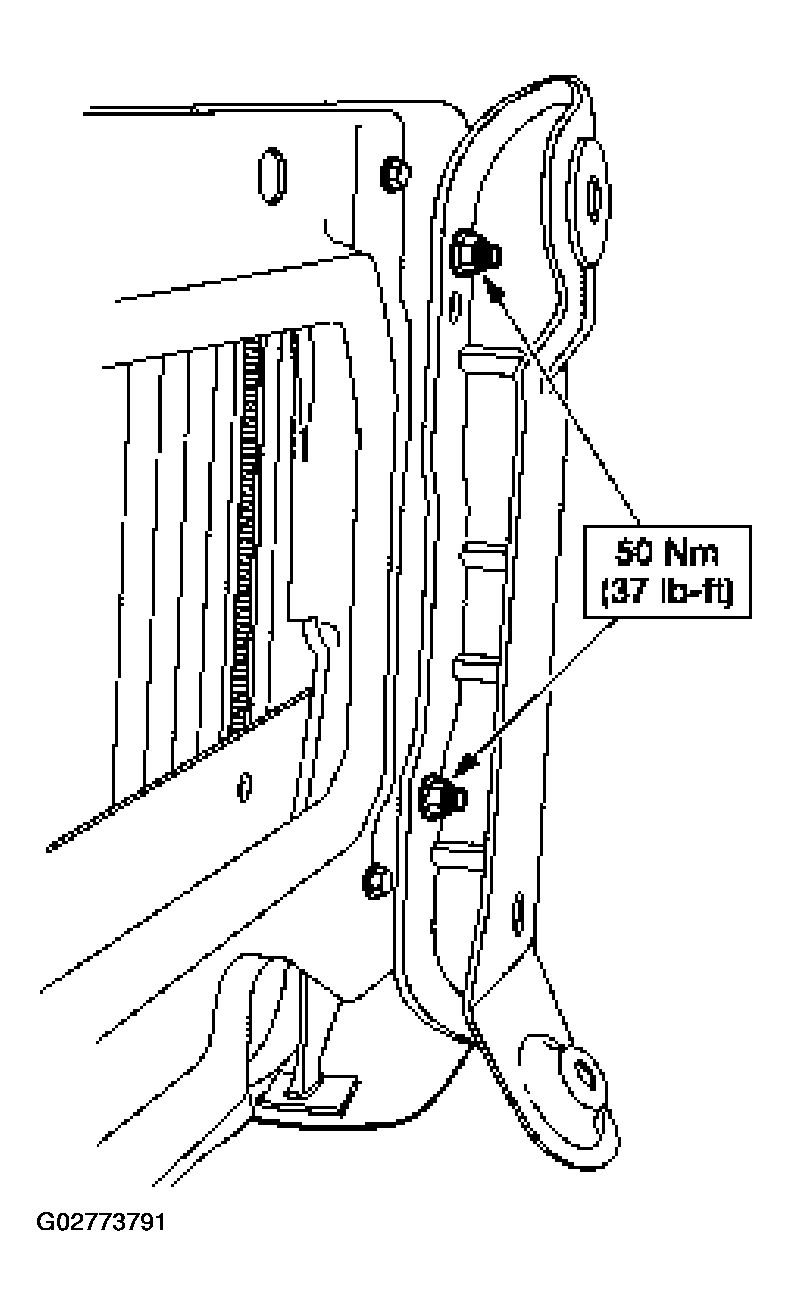

Fig 4: Removing Nuts For Seat Riser On Affected Seat

Courtesy of FORD MOTOR CO.

Remove the nuts for the seat riser on the affected seat.
Remove the four bolts for the affected seat.

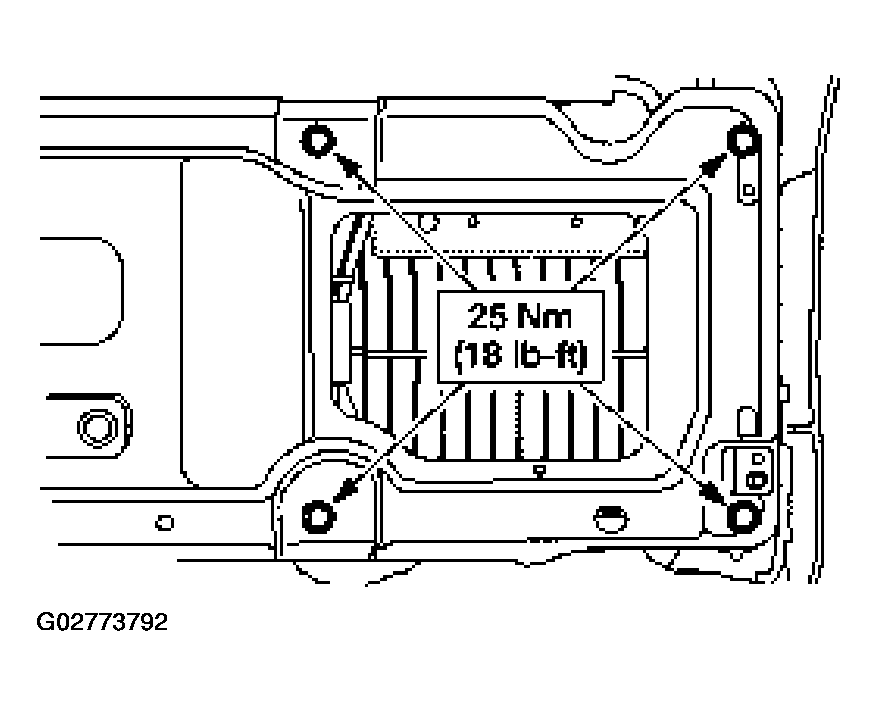

Fig 5: Removing Bolts For Affected Seat
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Check the active restraint system for correct operation. Refer to SAFETY BELT SYSTEM .
1. Make sure the safety belt is not twisted prior to installation.
