Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side shield. Refer to FRONT SEAT BACKREST - CAPTAIN'S CHAIR AND 40 PERCENT .
Remove the seat track. Refer to SEAT TRACK - CAPTAIN'S CHAIR AND 40 PERCENT .
Disconnect the electrical connectors and remove the wire harness.

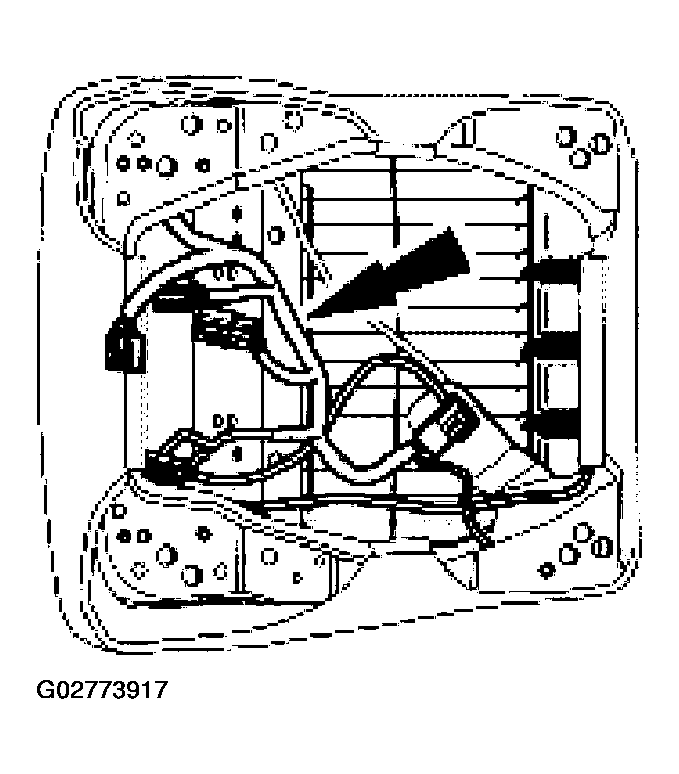

Fig 1: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the two lumbar actuator screws.

Fig 2: Removing Lumbar Actuator Screws
Courtesy of FORD MOTOR CO.
Unclip the lumbar control cable from actuator.

Fig 3: Uncliping Lumbar Control Cable From Actuator
Courtesy of FORD MOTOR CO.
Remove the two bolts and remove the front seat adjuster.

Fig 4: Removing Front Seat Adjuster
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the plastic pivot bushing when removing the seat backrest.

Fig 5: Separating Seat Cushion From Seat Backrest

Courtesy of FORD MOTOR CO.

Pull the front seat backrest away from the seat hinge and feed the lumbar cable and heating element wire through the seat cushion opening. Separate the seat cushion from the seat backrest.
To install, reverse the removal procedure.
