Rear Seat Cushion - Excursion, Second Row, 60 Percent: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat cushion. Refer to REAR SEAT CUSHION - EXCURSION, SECOND ROW .
  2. Unclip the J-clips and remove the hog rings.
    Fig 1: Removing Hog Rings
    G02774072Courtesy of FORD MOTOR CO.
  3. Remove the guide pins.

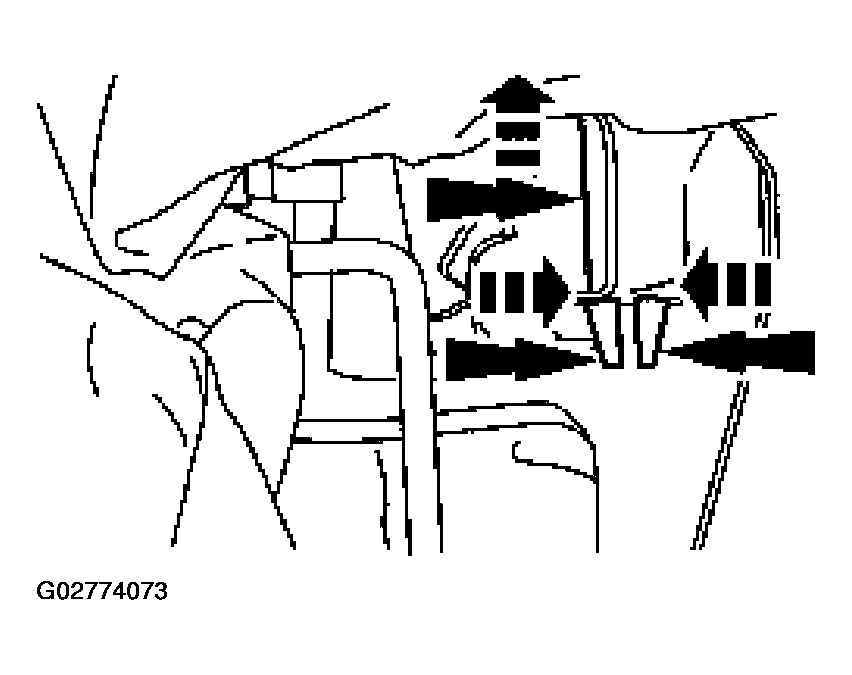

    Fig 2: Removing Guide Pins
    G02774073Courtesy of FORD MOTOR CO.
  4. Remove the seat cushion foam pad from the seat frame.
  5. Position the upholstery back and remove the hog rings.
    Fig 3: Removing Hog Rings
    G02774074Courtesy of FORD MOTOR CO.
  6. Remove the upholstery from the seat cushion foam pad.
