Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat backrest. Refer to REAR SEAT BACKREST - BENCH, CREW CAB .
  2. Remove the right and left seat risers (right side shown, left side similar).

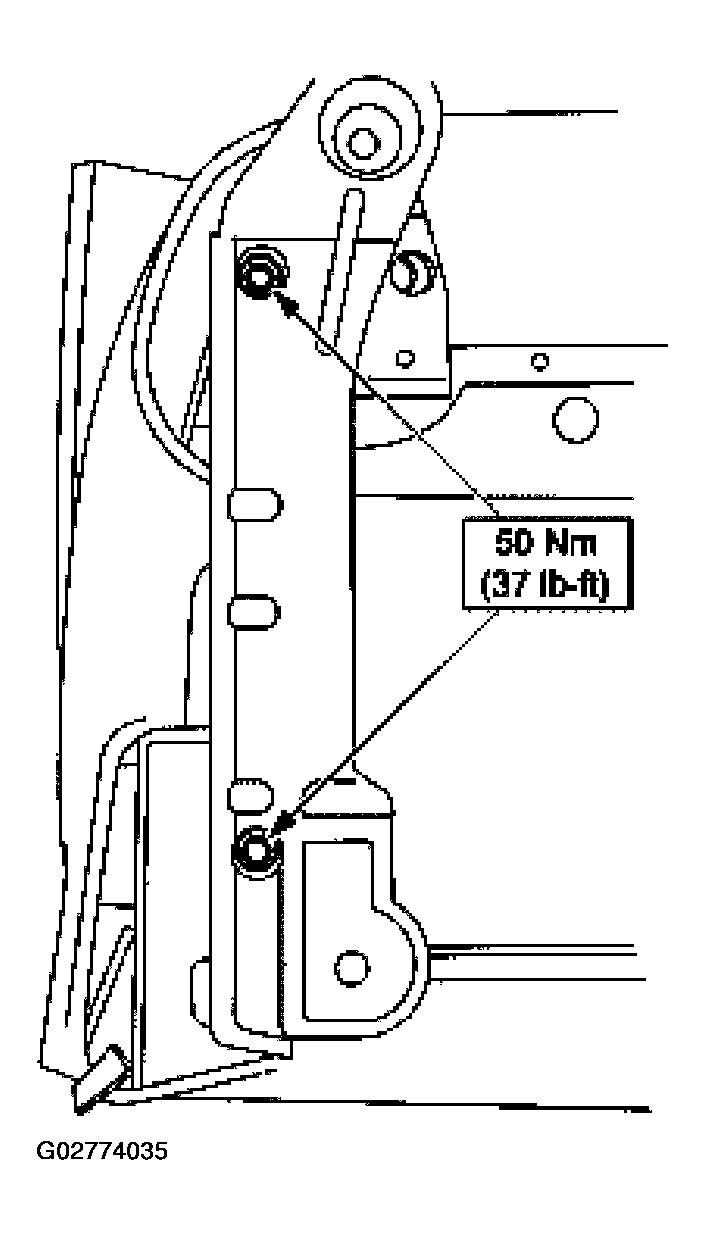

    Fig 1: Removing Right And Left Seat Risers
    G02774035Courtesy of FORD MOTOR CO.
    3. NOTE: Note location of spacers when removing for installation reference.

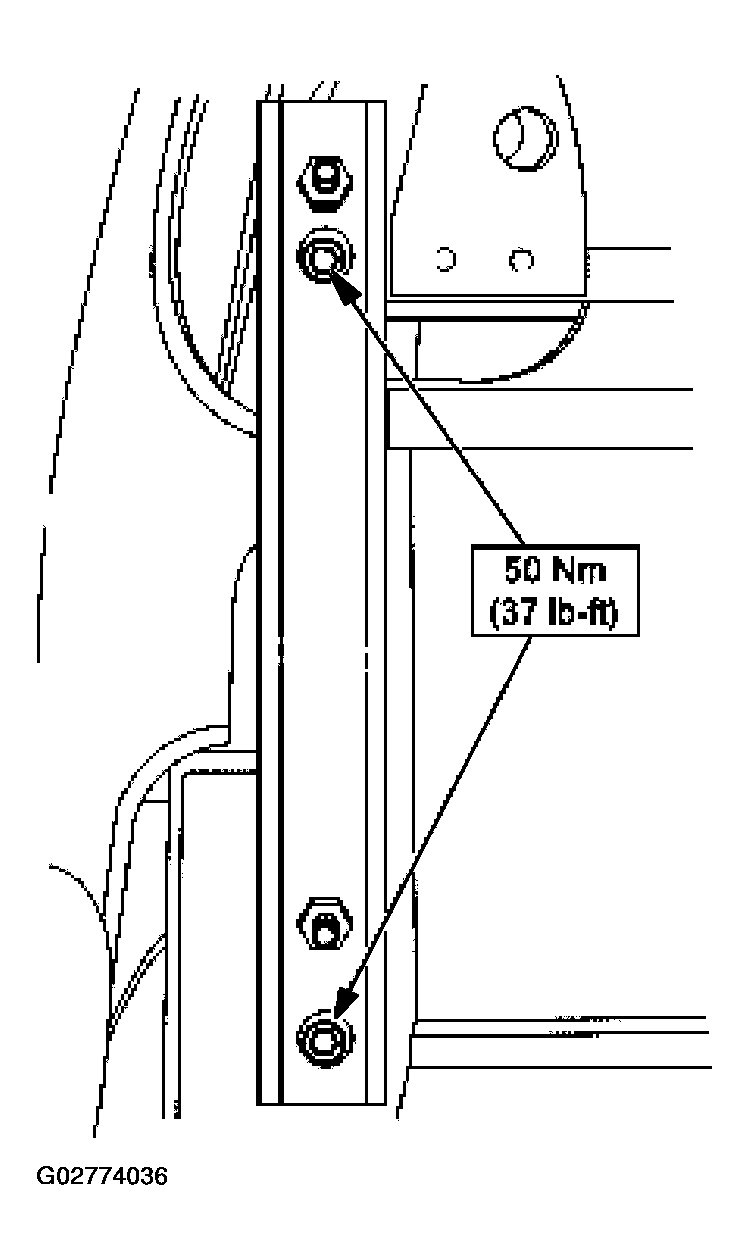

    Fig 2: Removing Right And Left Seat Spacers
    G02774036Courtesy of FORD MOTOR CO.
  3. Remove the right and left seat spacers.
  4. Unfasten the seat cushion cover J-strips and remove the seat cushion cover.
    Fig 3: Removing Seat Cushion Cover
    G02774037Courtesy of FORD MOTOR CO.
  5. Remove the seat cushion foam pad from the seat frame.
  6. To assemble, reverse the disassembly procedure.
