Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front bench seat backrest. Refer to FRONT SEAT BACKREST - BENCH .
  2. Remove the safety belt buckles from the cushion trim retainer (one side shown).
    Fig 1: Removing Safety Belt Buckles From Cushion Trim Retainer
    G02773980Courtesy of FORD MOTOR CO.
  3. Remove the two LH seat riser nuts and remove the seat riser.

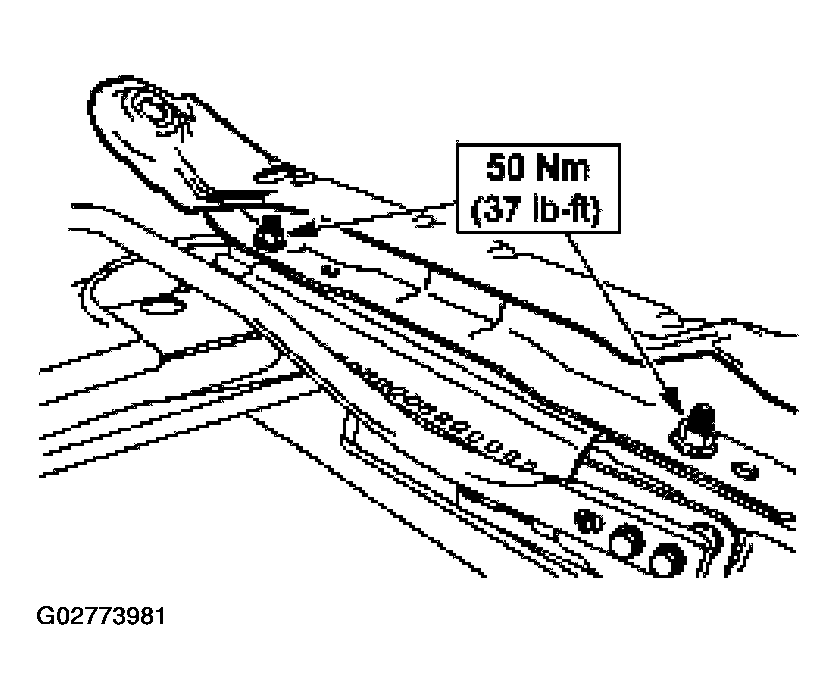

    Fig 2: Removing LH Seat Riser Nuts
    G02773981Courtesy of FORD MOTOR CO.
  4. Remove the two RH seat riser nuts and remove the seat riser.

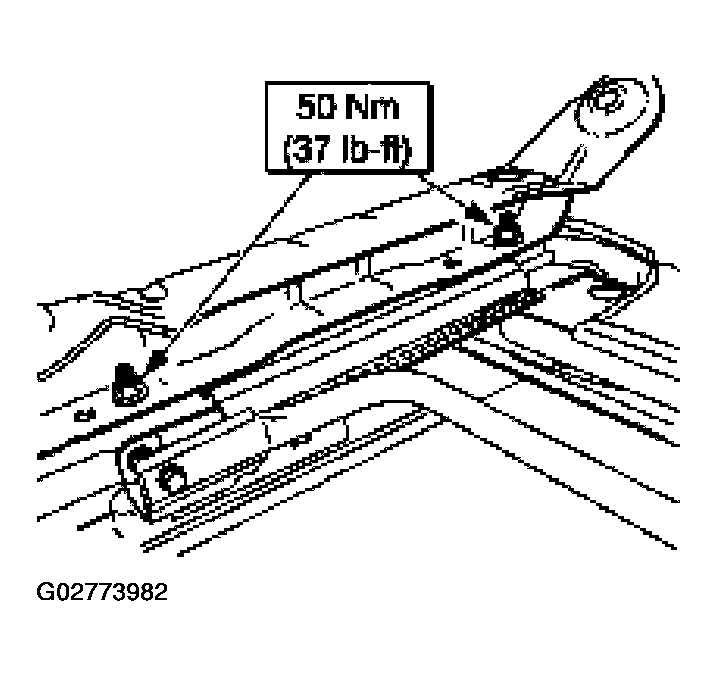

    Fig 3: Removing Rh Seat Riser Nuts
    G02773982Courtesy of FORD MOTOR CO.
  5. Remove two seat track-to-cushion front bolts (one shown).

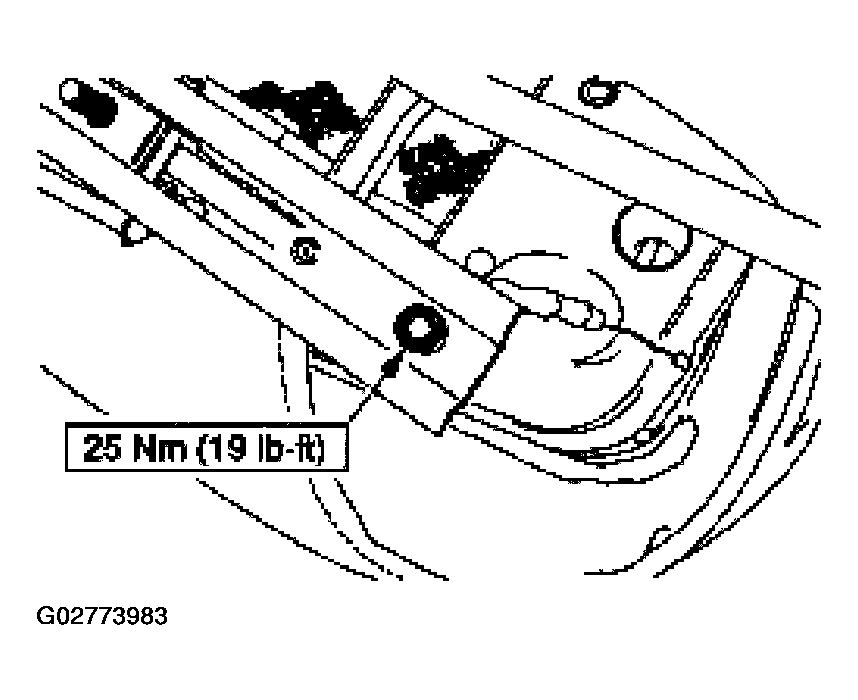

    Fig 4: Removing Seat Track-To-Cushion Front Bolts
    G02773983Courtesy of FORD MOTOR CO.
  6. Remove two seat track-to-cushion rear bolts (one shown) and remove the seat track assembly.

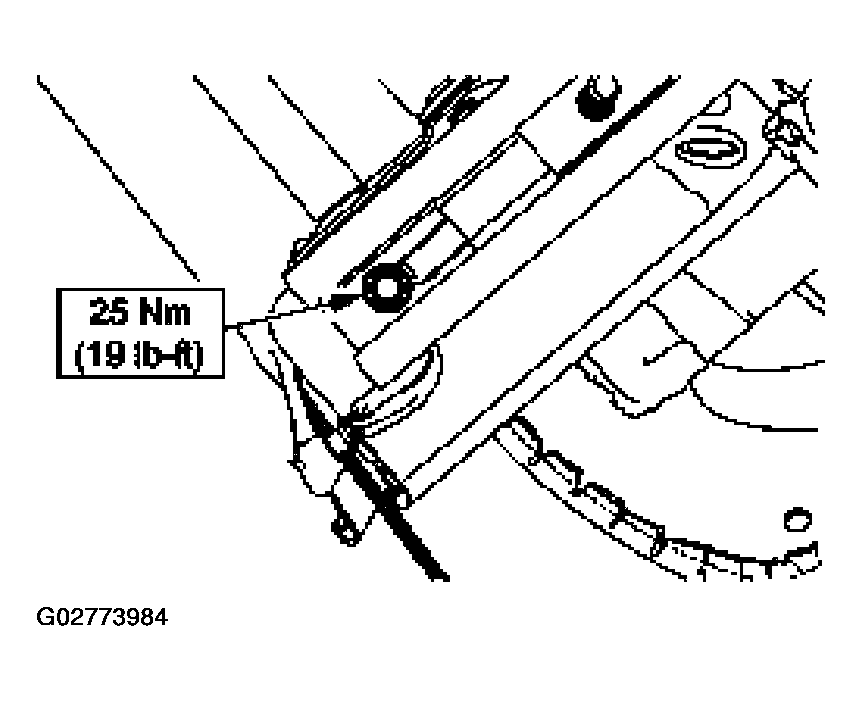

    Fig 5: Removing Seat Track-To-Cushion Rear Bolts
    G02773984Courtesy of FORD MOTOR CO.
  7. Remove the two LH seat track adjusting bar bolts.
    Fig 6: Removing LH Seat Track Adjusting Bar Bolts
    G02773985Courtesy of FORD MOTOR CO.
  8. Remove the RH seat track adjusting bar bolt.
    Fig 7: Removing RH Seat Track Adjusting Bar Bolt
    G02773986Courtesy of FORD MOTOR CO.
  9. Release the seat cushion J-clips
    Fig 8: Releasing Seat Cushion J-Clips
    G02773987Courtesy of FORD MOTOR CO.
    10. NOTE: Note the position of the recliner cable for installation.
    Fig 9: Releasing Recliner Cable Anchor Clips
    G02773988Courtesy of FORD MOTOR CO.
  10. Release the recliner cable anchor clips and remove the recliner cable.
  11. Remove the seat cushion frame from the seat cushion and trim cover assembly.
    Fig 10: Removing Seat Cushion Frame From Seat Cushion
    G02773989Courtesy of FORD MOTOR CO.
    12. CAUTION: Use care when separating the seat cushion trim cover from the hook-and-loop strip, or the hook-and-loop strip can be torn from the seat cushion foam.
    Fig 11: Removing Seat Cushion Trim Cover From Foam Pad
    G02773990Courtesy of FORD MOTOR CO.
  12. Invert the cushion trim cover and release the hook-and-loop strips and remove the seat cushion trim cover from the foam pad.
  13. To assemble, reverse the disassembly procedure.
