Front Seat Cushion - 20 Percent: Disassembly

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
WARNING: To reduce the risk of personal injury, do not use any memory saver devices.
NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

Vehicles with seat integrated restraints (SIR)

  1. Depower the SRS. Refer to AIR BAG RESTRAINT SYSTEMS .

    All vehicles

  2. Remove the front seats. Refer to FRONT SEAT - WITH SEAT INTEGRATED RESTRAINTS (SIR)  or FRONT SEAT - CAPTAIN'S CHAIR AND 40 PERCENT .
  3. Remove the front seat. Refer to FRONT SEAT - 20 PERCENT .
  4. Remove the seat backrest. Refer to FRONT SEAT BACKREST - 20 PERCENT .
  5. Remove the seat latch. Refer to SEAT LATCH - 20 PERCENT .
  6. Remove the LH seat backrest bracket retaining bolts.
    Fig 1: Removing LH Seat Backrest Bracket Retaining Bolts
    G02773991Courtesy of FORD MOTOR CO.
    7. NOTE: LH shown, RH similar.

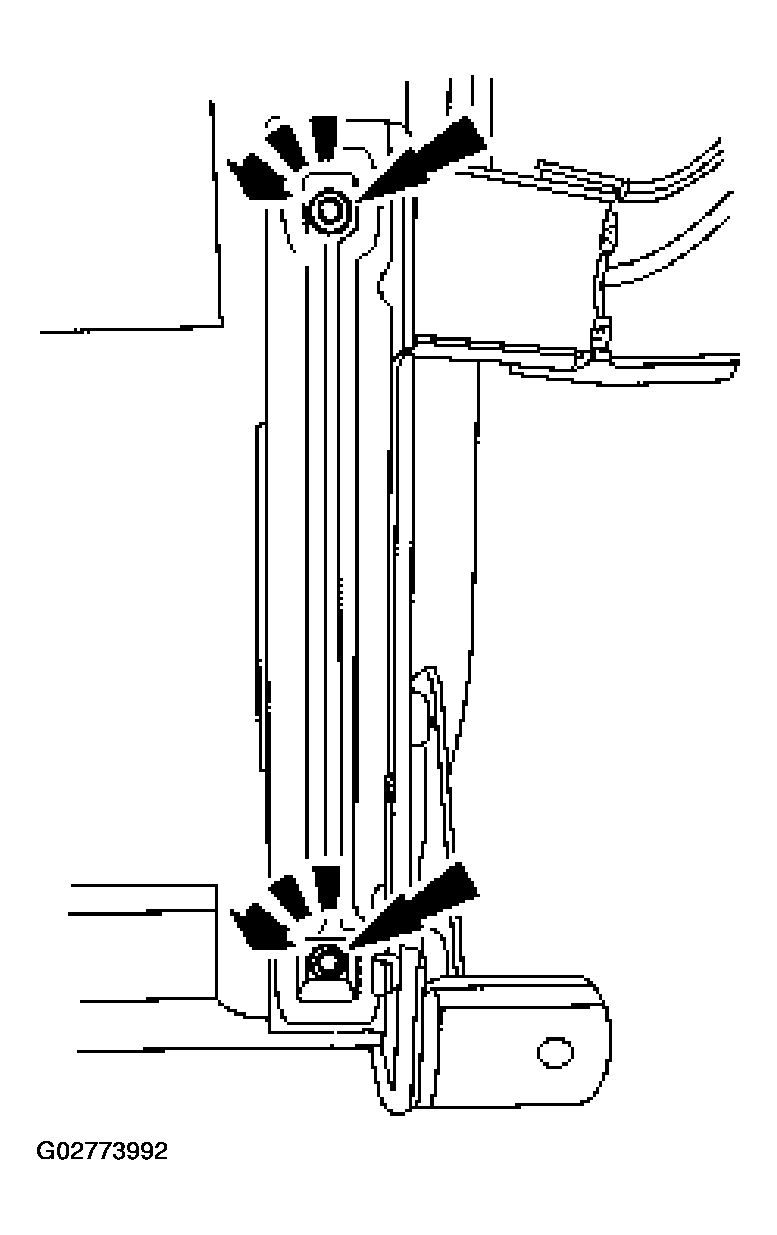

    Fig 2: Removing RH And LH Seat Riser Retaining Bolts
    G02773992Courtesy of FORD MOTOR CO.
  7. Remove the five RH and LH seat riser retaining bolts.
  8. Unfasten the J-clips. Remove the seat cushion foam pad.
    Fig 3: Removing Seat Cushion Foam Pad
    G02773993Courtesy of FORD MOTOR CO.
