Disassembly and Assembly
WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front seat bench backrest. Refer to FRONT SEAT BACKREST - BENCH .
- Remove both the recliner handle clips and remove the handles.
- Release the J-clip.
- Invert the backrest trim cover and release the first row of hook-and-loop strips.
- Invert the backrest trim cover up and release the second row of hook-and-loop strips and remove the backrest trim cover.
- Remove the backrest foam pad from the backrest frame assembly.

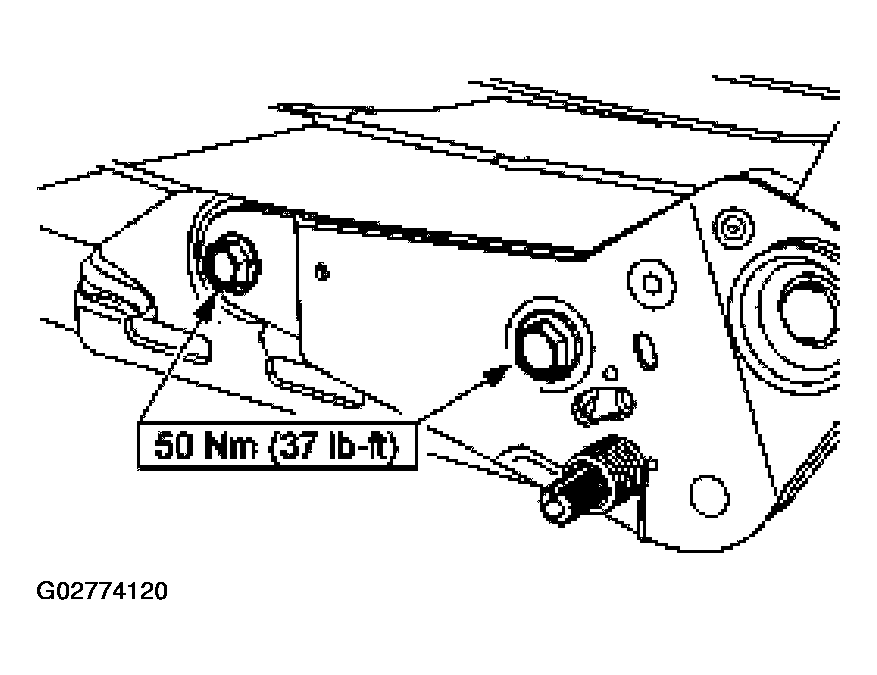

- Remove the two LH backrest recliner bolts.

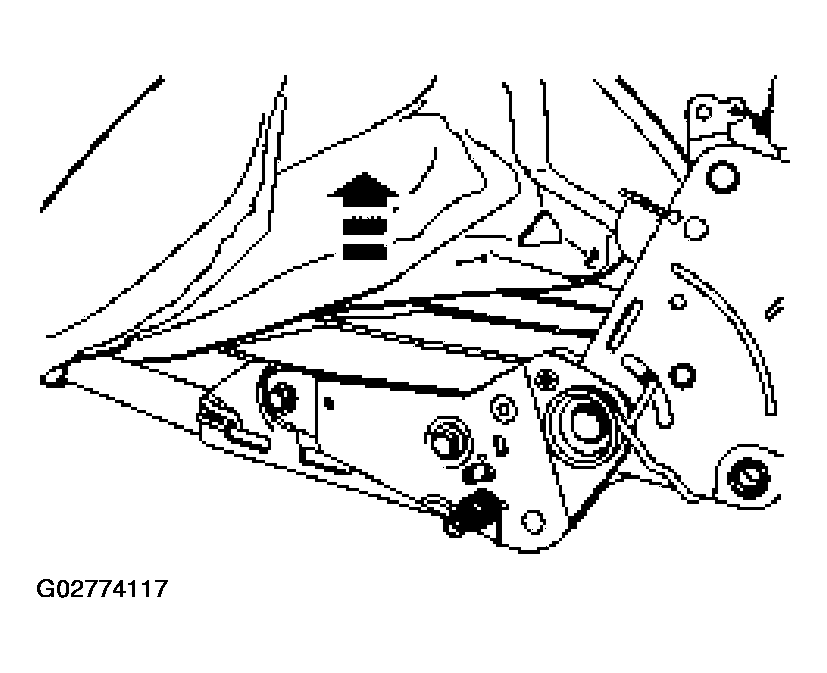

- Remove the LH recliner latch and adjusting rod.
- Remove the LH recliner latch from the adjusting rod.

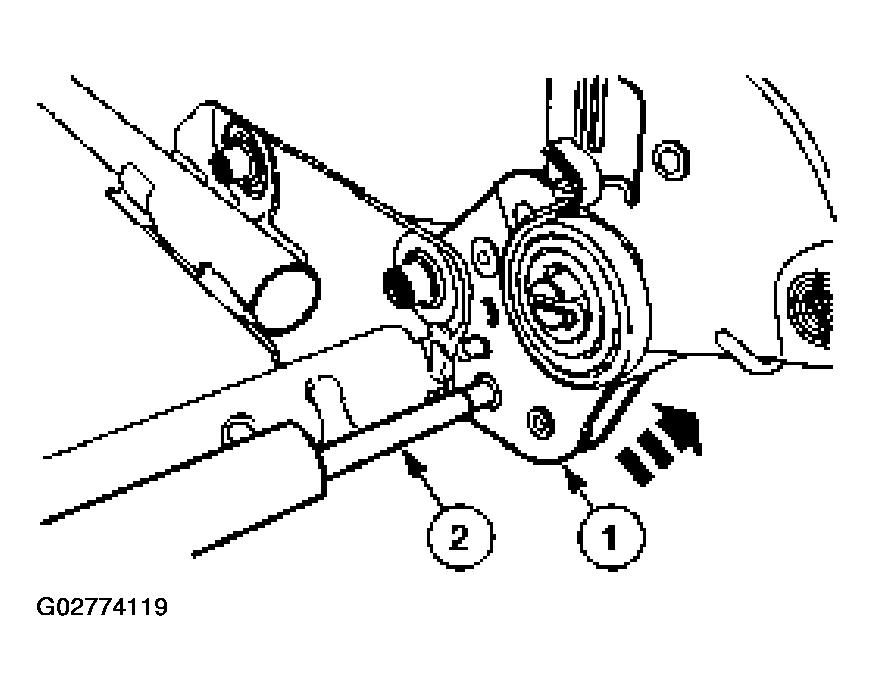

- Remove the recliner adjusting rod from the RH recliner latch and slide the adjusting rod out of the seat frame tubes.

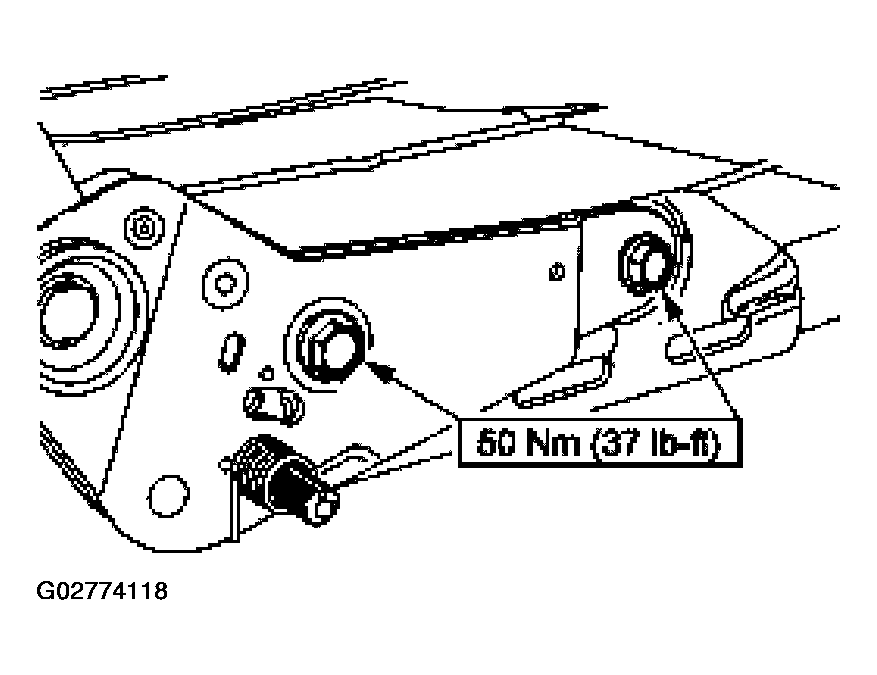

- Remove the two RH backrest recliner bolts and remove the recliner latch.
- To assemble, reverse the disassembly procedure.
NOTE:
LH side shown, RH similar.
CAUTION:
Use care when separating the seat back trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat back foam.
CAUTION:
Use care when separating the seat back trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the seat back foam.
NOTE:
During assembly, make sure the recliner latches are seated in the adjusting rod before installing the recliner latch bolts.
