Pinpoint Test G: The Memory Seats Is Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

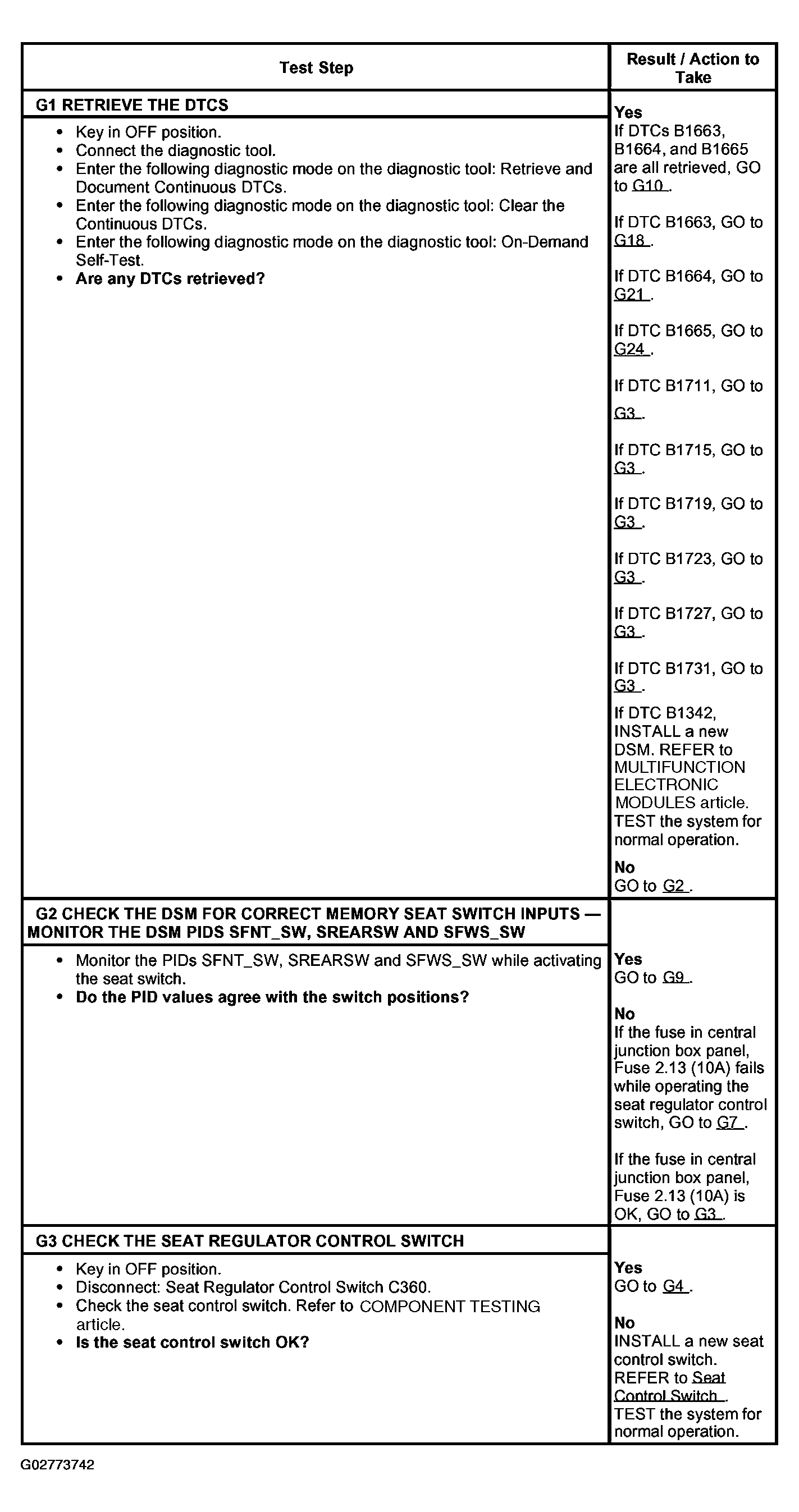

Fig 1: Pinpoint Test G: Memory Seats Is Inoperative (Step G1-G3)

G02773742

Courtesy of FORD MOTOR CO.

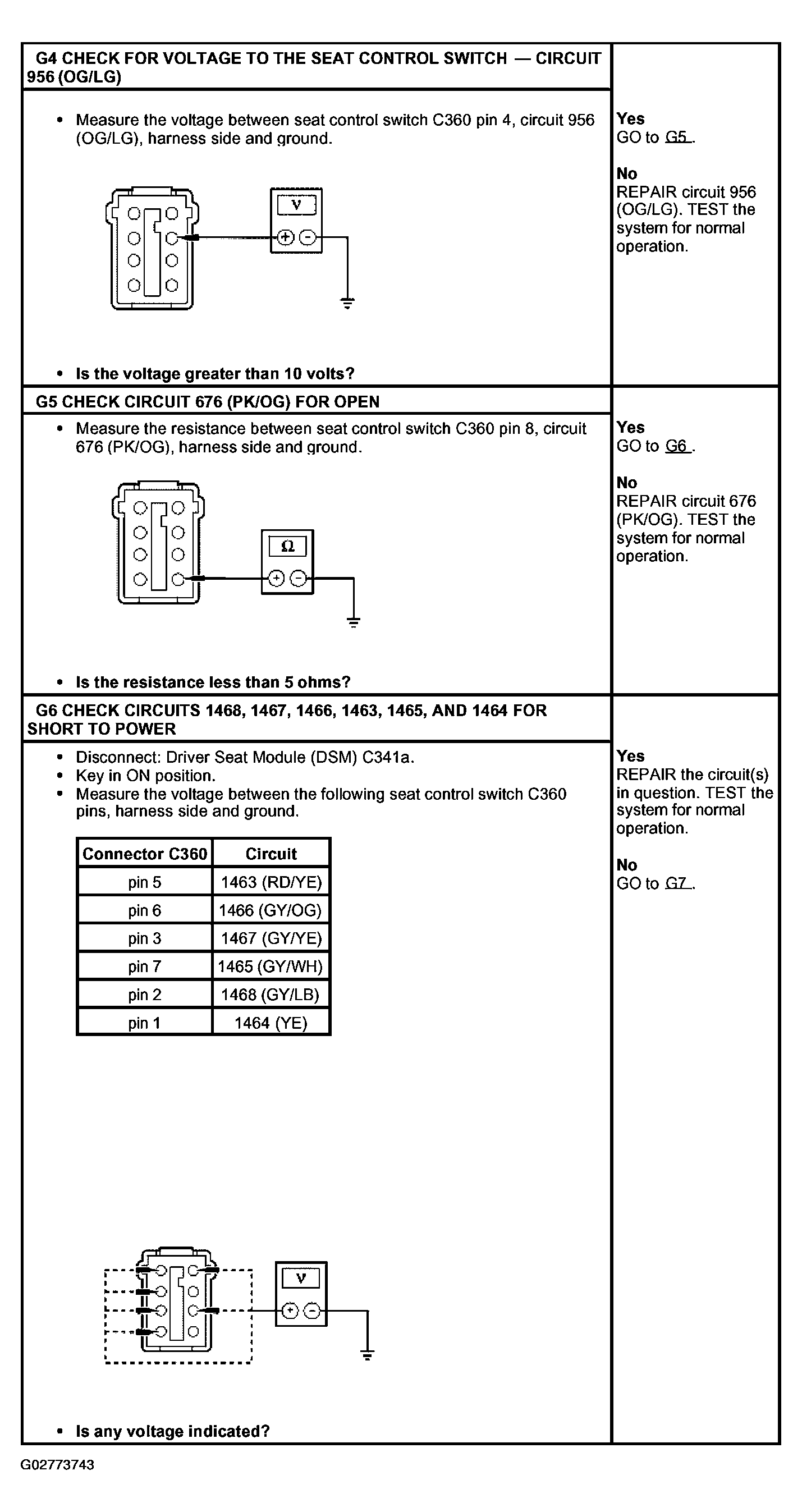

Fig 2: Pinpoint Test G: Memory Seats Is Inoperative (Step G4-G6)

G02773743

Courtesy of FORD MOTOR CO.

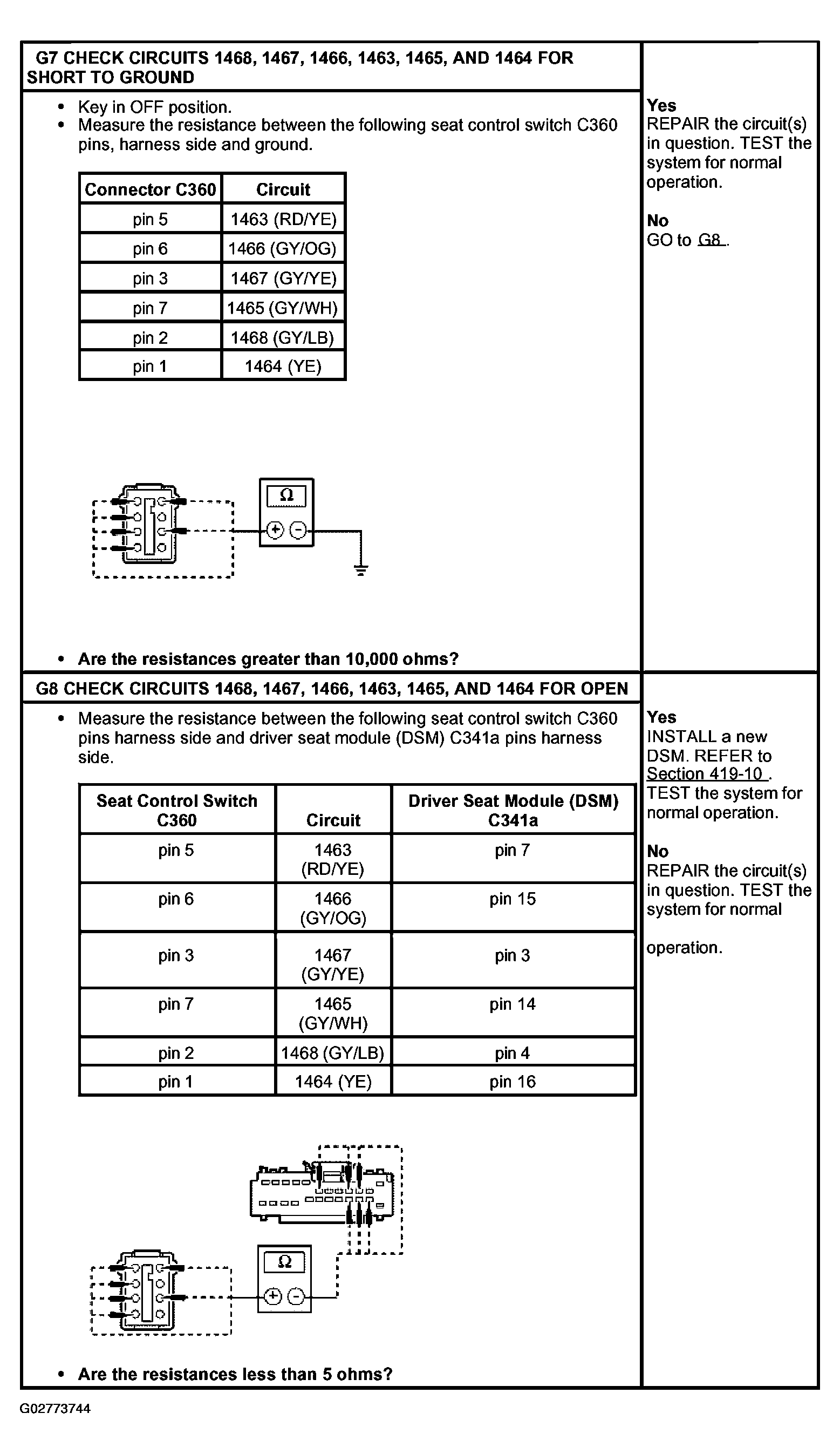

Fig 3: Pinpoint Test G: Memory Seats Is Inoperative (Step G7 & G8)

G02773744

Courtesy of FORD MOTOR CO.

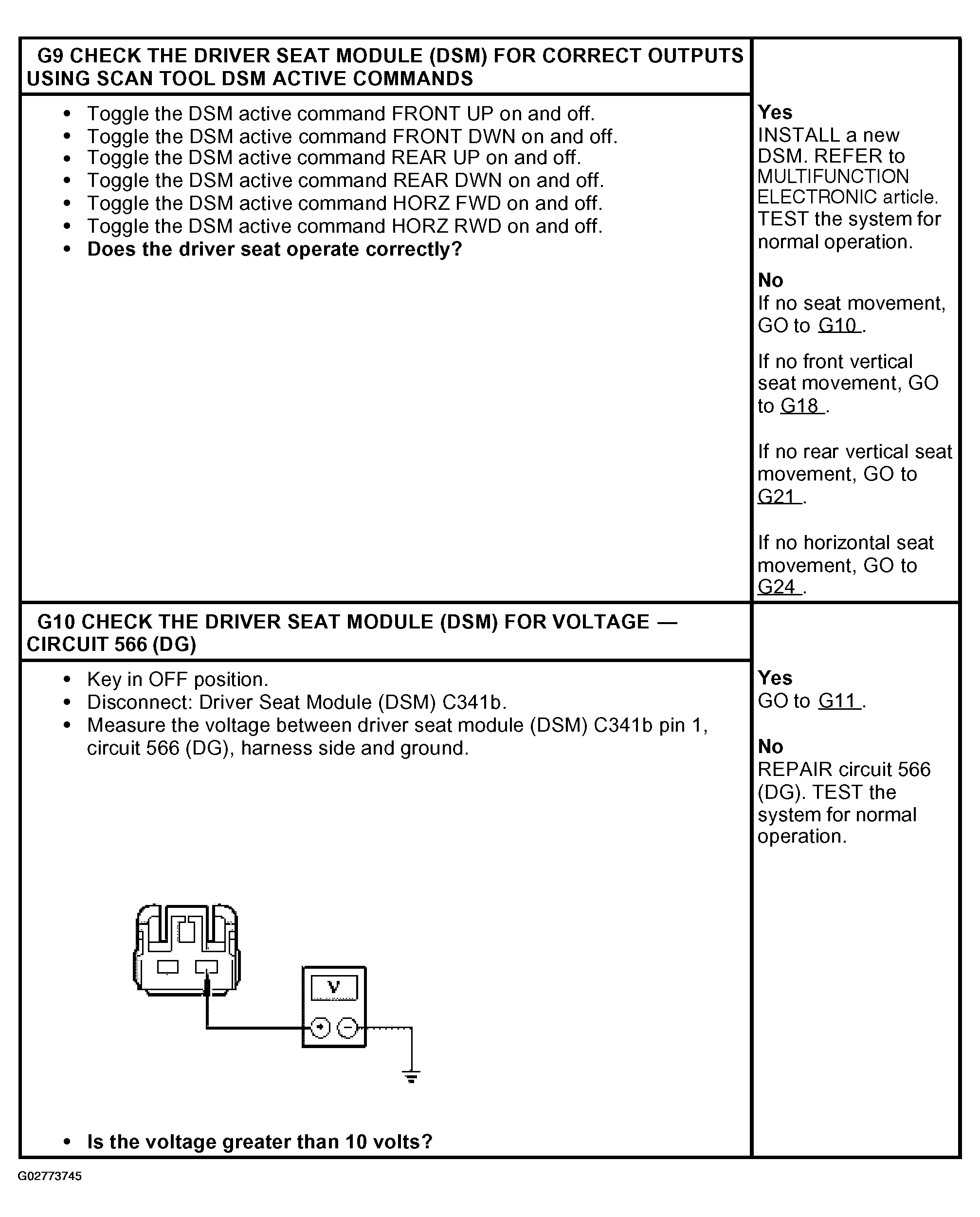

Fig 4: Pinpoint Test G: Memory Seats Is Inoperative (Step G9 & G10)

G02773745

Courtesy of FORD MOTOR CO.

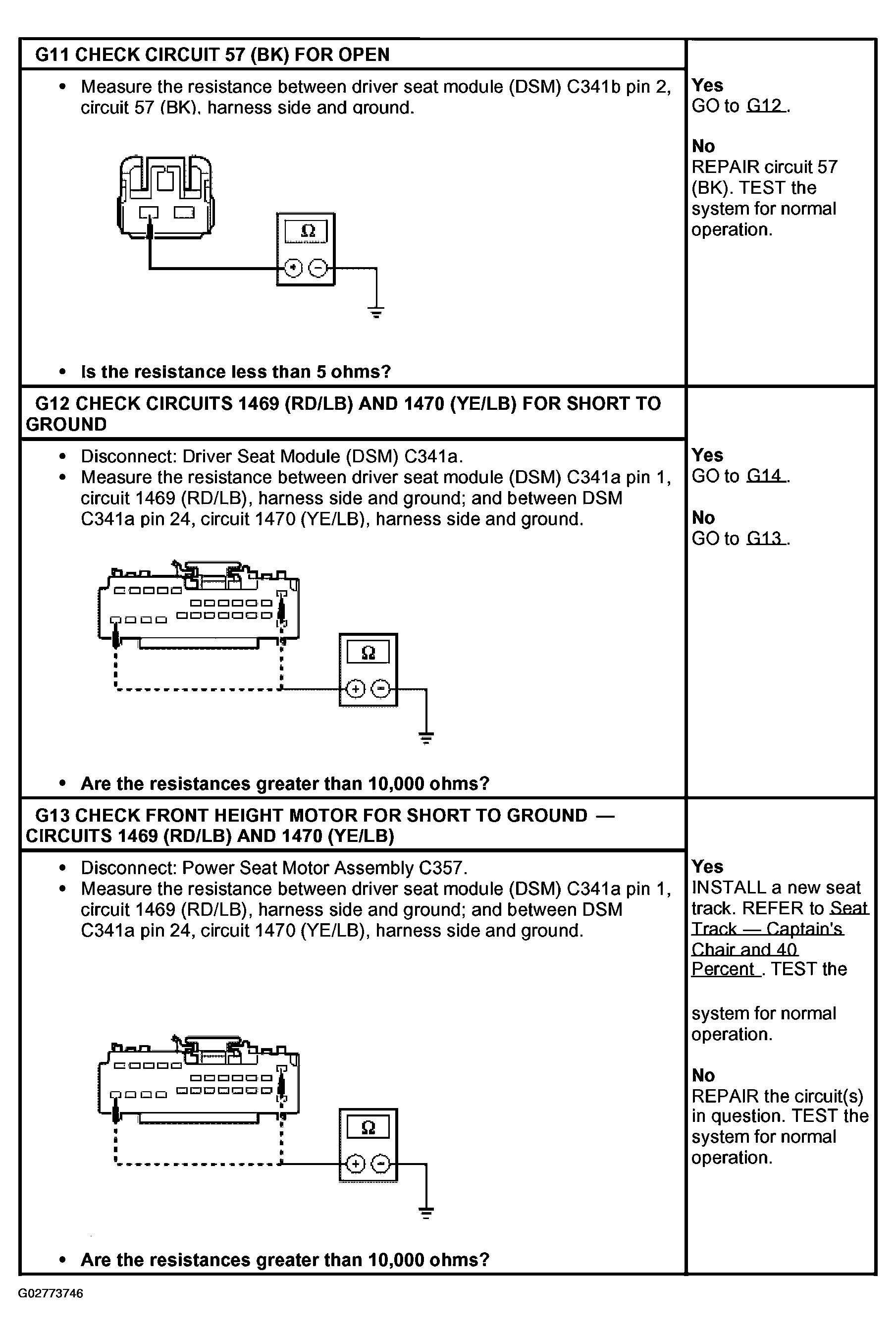

Fig 5: Pinpoint Test G: Memory Seats Is Inoperative (Step G11-G13)

G02773746

Courtesy of FORD MOTOR CO.

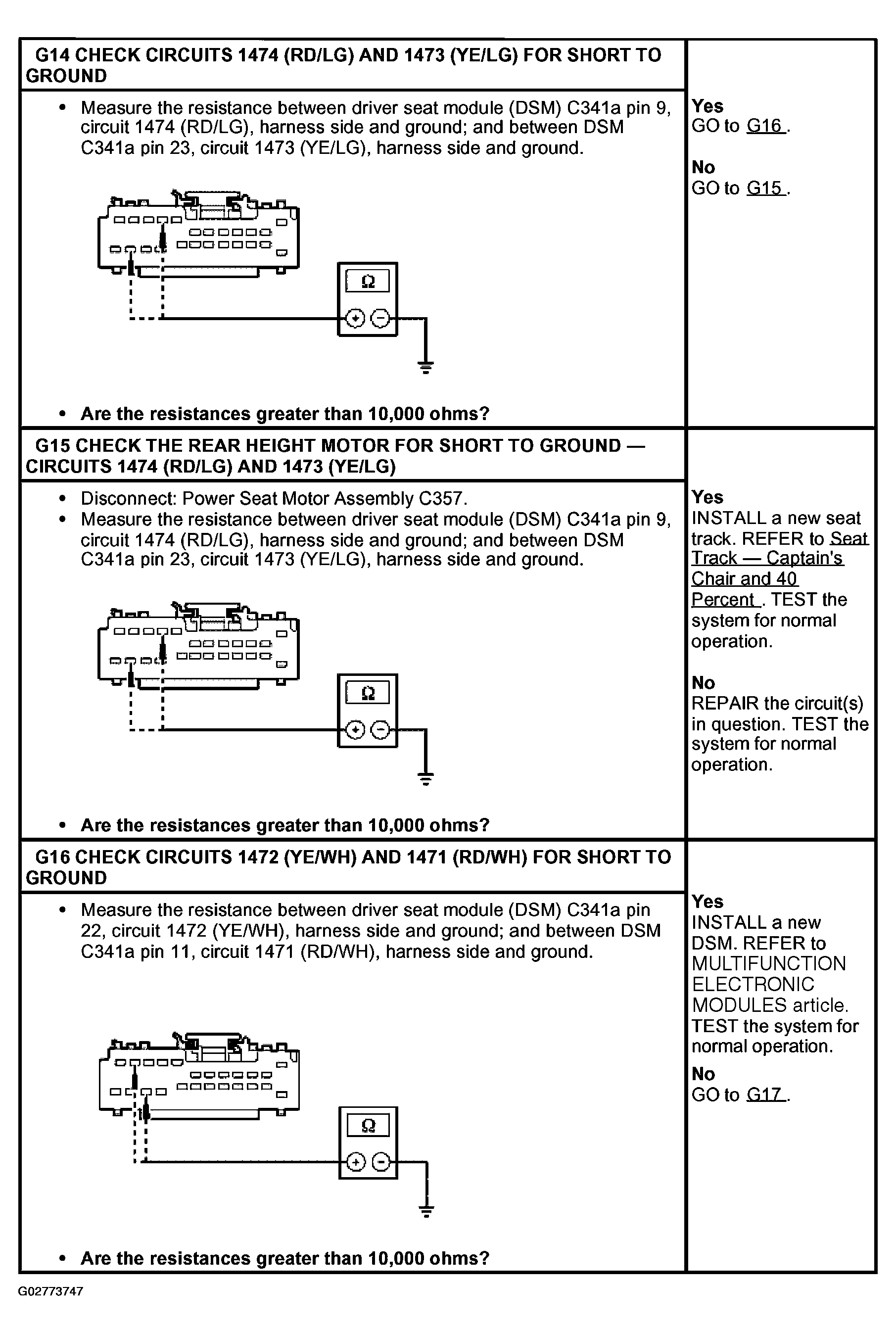

Fig 6: Pinpoint Test G: Memory Seats Is Inoperative (Step G14-G16)

G02773747

Courtesy of FORD MOTOR CO.

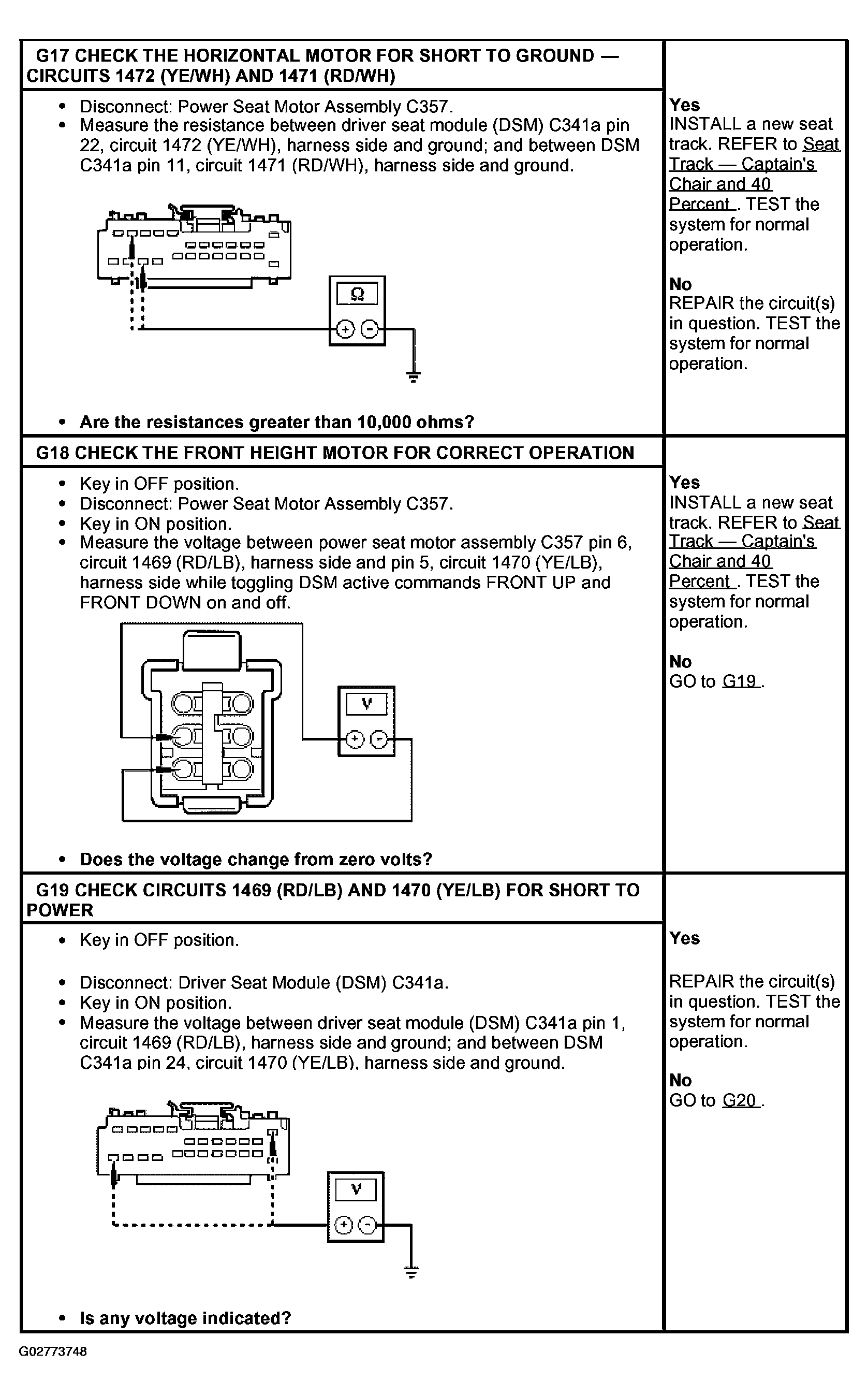

Fig 7: Pinpoint Test G: Memory Seats Is Inoperative (Step G17-G19)

G02773748

Courtesy of FORD MOTOR CO.

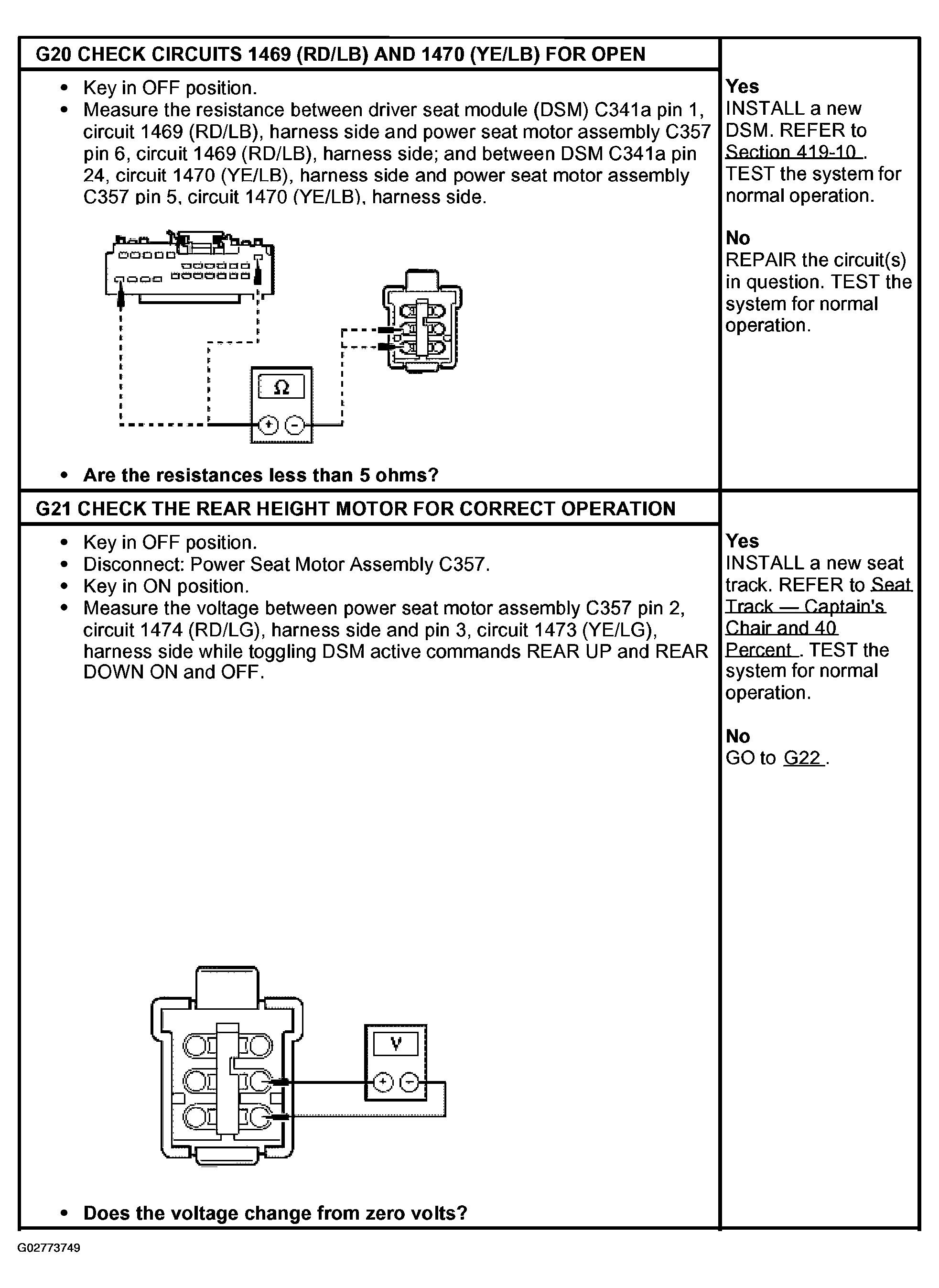

Fig 8: Pinpoint Test G: Memory Seats Is Inoperative (Step G20 & G21)

G02773749

Courtesy of FORD MOTOR CO.

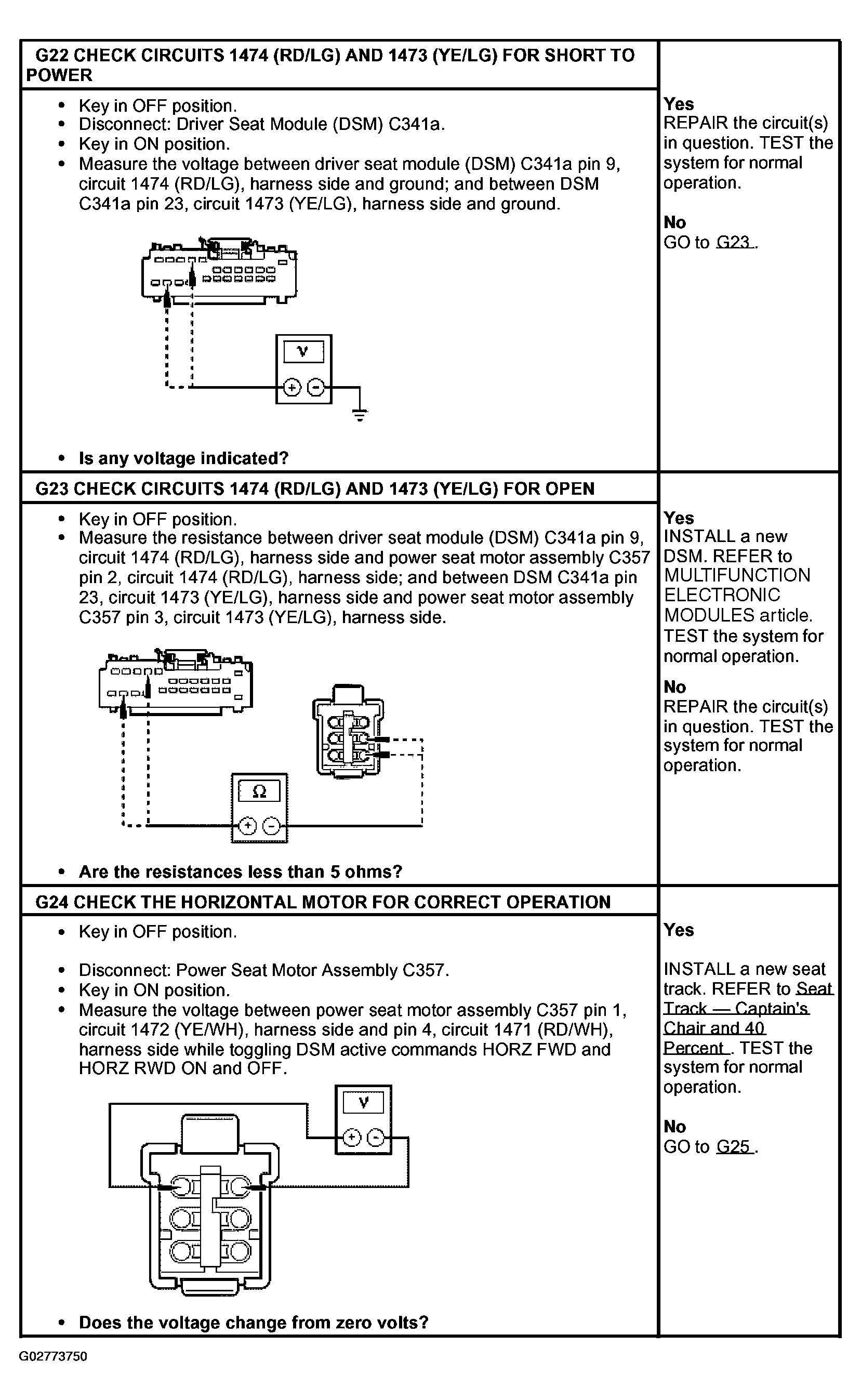

Fig 9: Pinpoint Test G: Memory Seats Is Inoperative (Step G22-G24)

G02773750

Courtesy of FORD MOTOR CO.

Fig 10: Pinpoint Test G: Memory Seats Is Inoperative (Step G25 & G26)

G02773751

Courtesy of FORD MOTOR CO.
