Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the scuff plate.

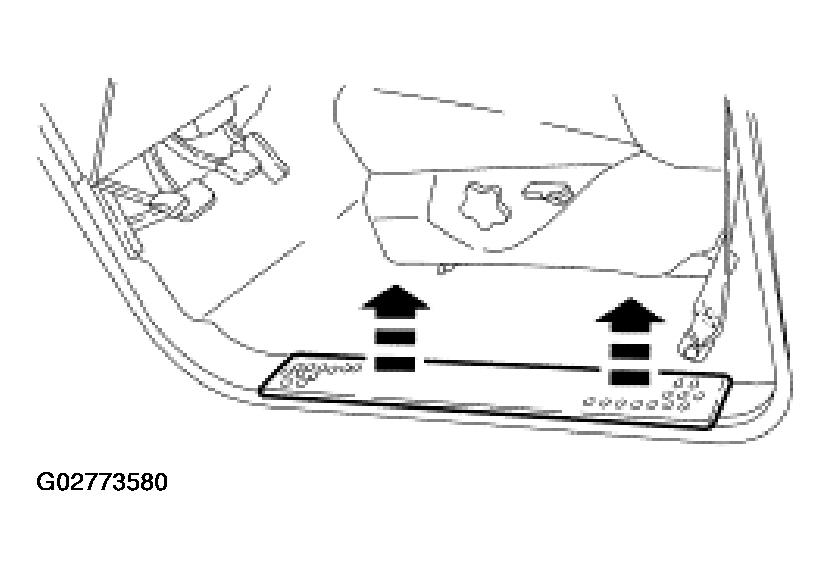

    Fig 1: Removing Scuff Plate
    G02773580Courtesy of FORD MOTOR CO.
  2. Remove the push pin.

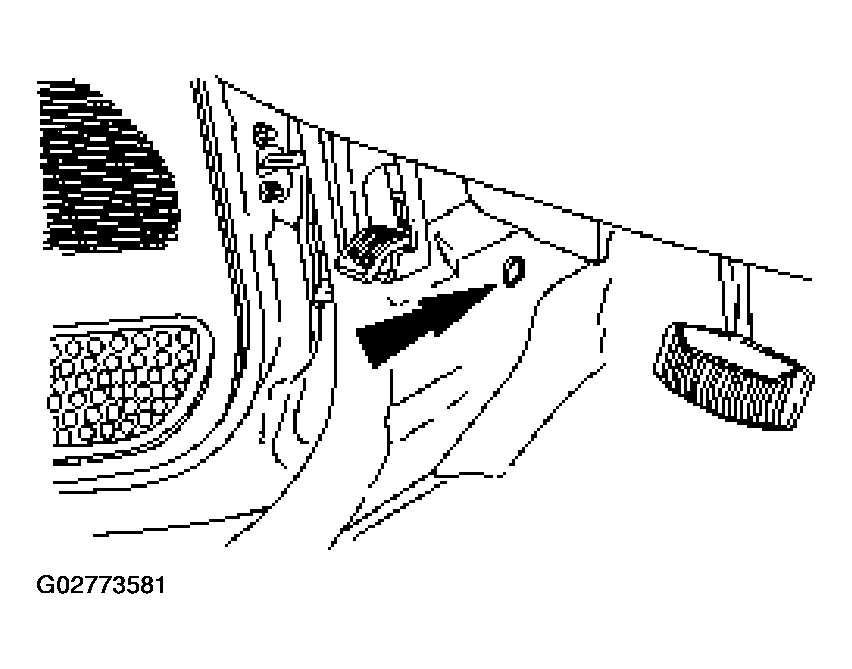

    Fig 2: Removing Push Pin
    G02773581Courtesy of FORD MOTOR CO.
  3. Remove the cowl side trim panel.

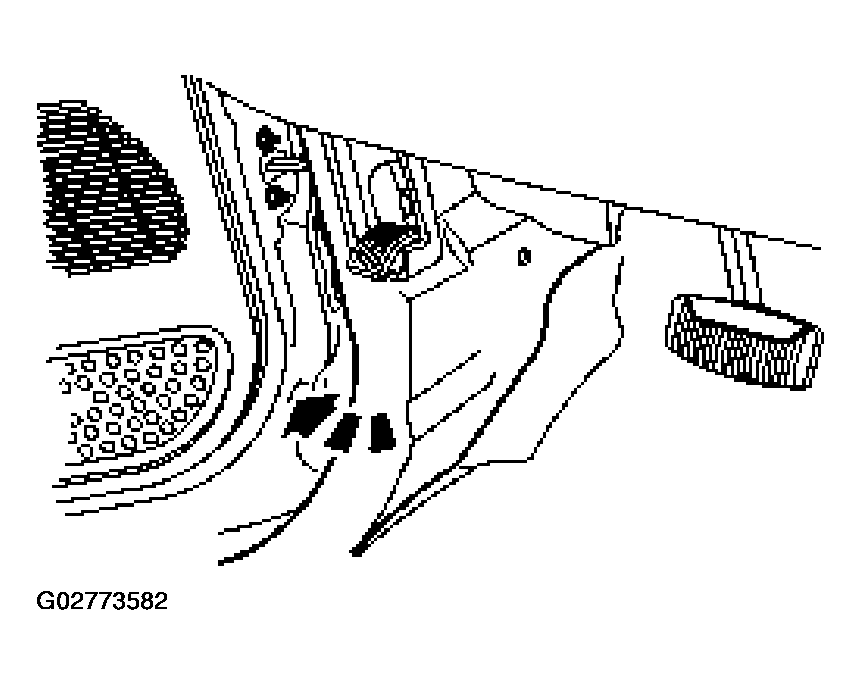

    Fig 3: Removing Cowl Side Trim Panel
    G02773582Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
