Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove child safety seat tether anchor. Refer to SAFETY BELT SYSTEM .
  2. If equipped, remove the utility trays and jack assembly.
    Fig 1: Removing Utility Trays
    G02773610Courtesy of FORD MOTOR CO.
  3. Remove the left and right rear corner trim panels. Refer to TRIM PANEL - REAR CORNER, REGULAR CAB .
  4. Remove the four push pins.

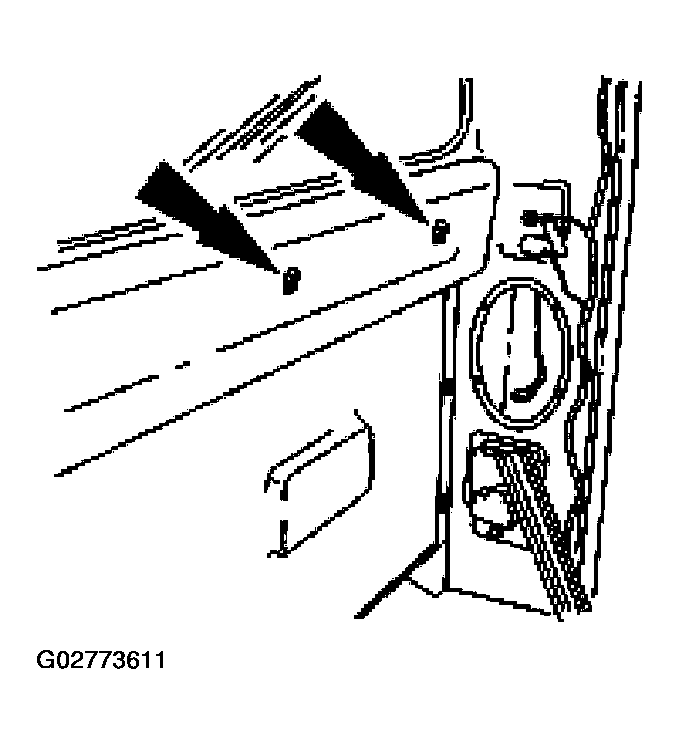

    Fig 2: Removing Push Pins
    G02773611Courtesy of FORD MOTOR CO.
  5. Remove the trim cover.
  6. To install, reverse the removal procedure.
