Liftgate Trim Panel: Removal

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the interior liftgate handle trim covers.

Fig 1: Removing Interior Liftgate Handle Trim Covers
Courtesy of FORD MOTOR CO.
Remove the interior liftgate handle.
1. Remove the screws.
2. Remove the interior liftgate handle.

  Fig 2: Removing Interior Liftgate Handle
  Courtesy of FORD MOTOR CO.

NOTE: Right side shown, left side similar.

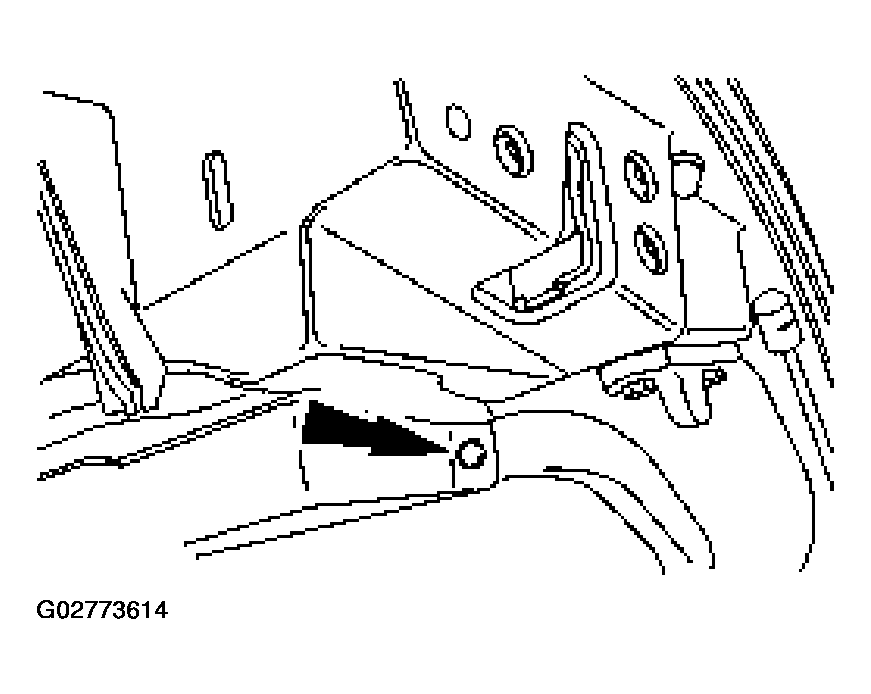

Fig 3: Removing Push Pins

Courtesy of FORD MOTOR CO.

Remove the push pins.
Remove the lower interior liftgate trim panel.

Fig 4: Removing Lower Interior Liftgate Trim Panel
Courtesy of FORD MOTOR CO.
Remove the upper and side interior liftgate trim panels.
1. Release the upper interior liftgate trim panel.
2. Slide the upper and side interior liftgate trim panel assembly toward the front of the vehicle to release.

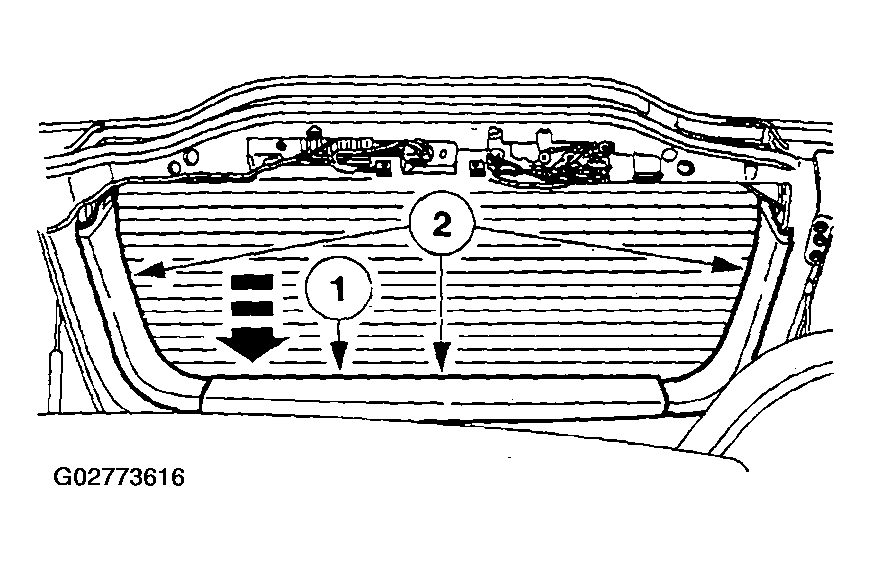

  Fig 5: Removing Upper And Side Interior Liftgate Trim Panels
  Courtesy of FORD MOTOR CO.
Separate the interior liftgate side trim panels from the upper trim panel.
