Removal and Installation

All vehicles

1. If equipped, remove the overhead console.
   • Release the locking tabs while pulling down.
2. Remove the left and right screws and visors.
   • If equipped, disconnect the electrical connector.
     Fig 1: Removing Left And Right Screws And Visors

     Courtesy of FORD MOTOR CO.
3. Position the left and right front door opening weatherstrips down from the headliner.

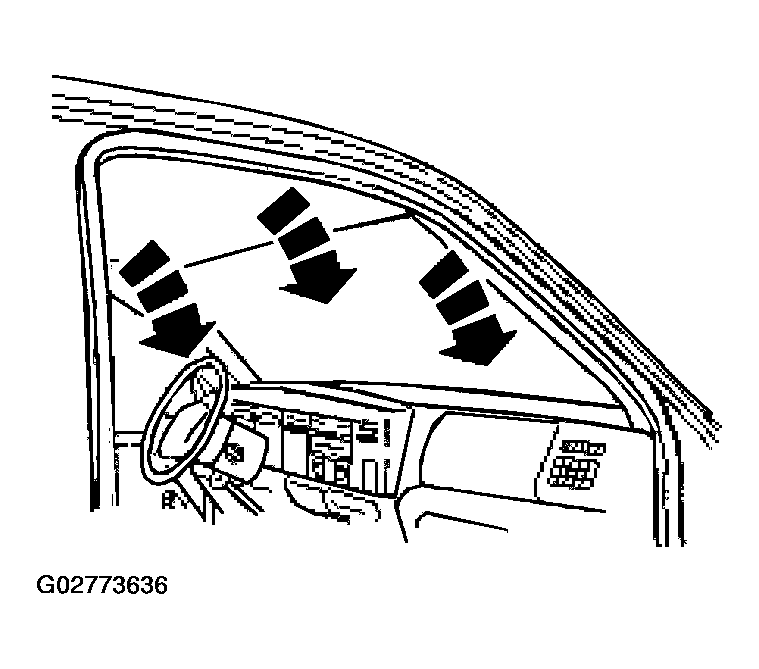

   Fig 2: Identifying Position Left And Right Front Door Opening Weatherstrips Down From Headliner

   Courtesy of FORD MOTOR CO.
4. Remove the left and right windshield side garnish moulding. Refer to MOULDING - WINDSHIELD SIDE GARNISH .
NOTE: SuperCab shown, regular cab similar.
Fig 3: Removing Courtesy Lamp Lens
Courtesy of FORD MOTOR CO.
5. Remove the courtesy lamp lens, then remove the screws.

   SuperCab vehicles

6. Remove the left and right rear door striker covers at the roof trim panel.
   Fig 4: Removing Left And Right Rear Door Striker Covers At Roof Trim Panel

   Courtesy of FORD MOTOR CO.
7. If equipped, remove the safety belt shoulder height adjuster cover pin-type retainers.
   Fig 5: Removing Safety Belt Shoulder Height Adjuster Cover Pin-Type Retainers

   Courtesy of FORD MOTOR CO.
8. If equipped, remove the safety belt shoulder height adjusters.
   1. Position the safety belt shoulder height adjuster cover down.
   2. Remove the bolt.
   3. Remove the safety belt shoulder height adjuster.
      Fig 6: Removing Safety Belt Shoulder Height Adjuster

      Courtesy of FORD MOTOR CO.
9. Remove the two headliner rear pin-type retainers.
   Fig 7: Removing Headliner Rear Pin-Type Retainers

   Courtesy of FORD MOTOR CO.

   All vehicles

10. Remove both of the left and right safety belt guides.
    1. Position the shoulder safety belt guide cover up.
    2. Remove the shoulder safety belt guide nut.
    3. Remove the shoulder safety belt guide.
       Fig 8: Removing Shoulder Safety Belt Guide

       Courtesy of FORD MOTOR CO.
11. Remove the left and right coat hooks.
    Fig 9: Removing Left And Right Coat Hooks

    Courtesy of FORD MOTOR CO.
12. Remove the assist handle.
    1. Remove the covers and bolts.
    2. Remove the assist handle.
       Fig 10: Removing Assist Handle

       Courtesy of FORD MOTOR CO.
13. Position aside the rear corner trim panels.
    Fig 11: Identifying Position Aside Rear Corner Trim Panels

    Courtesy of FORD MOTOR CO.
14. Remove the two headliner front pin-type retainers.
    Fig 12: Removing Headliner Front Pin-Type Retainers

    Courtesy of FORD MOTOR CO.
15. Remove the headliner.
16. To install, reverse the removal procedure.
