Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connectors (left side only).

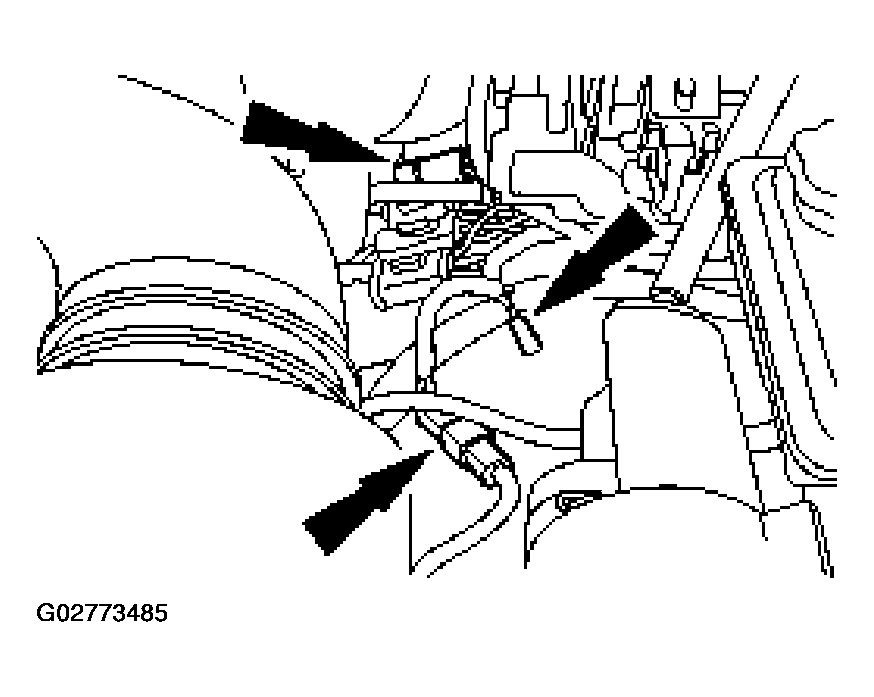

    Fig 1: Disconnecting Electrical Connectors
    G02773485Courtesy of FORD MOTOR CO.
  2. Remove the wheel and tire assembly. For additional information, refer to WHEELS AND TIRES .
  3. If equipped with running boards, loosen the running board bolts.

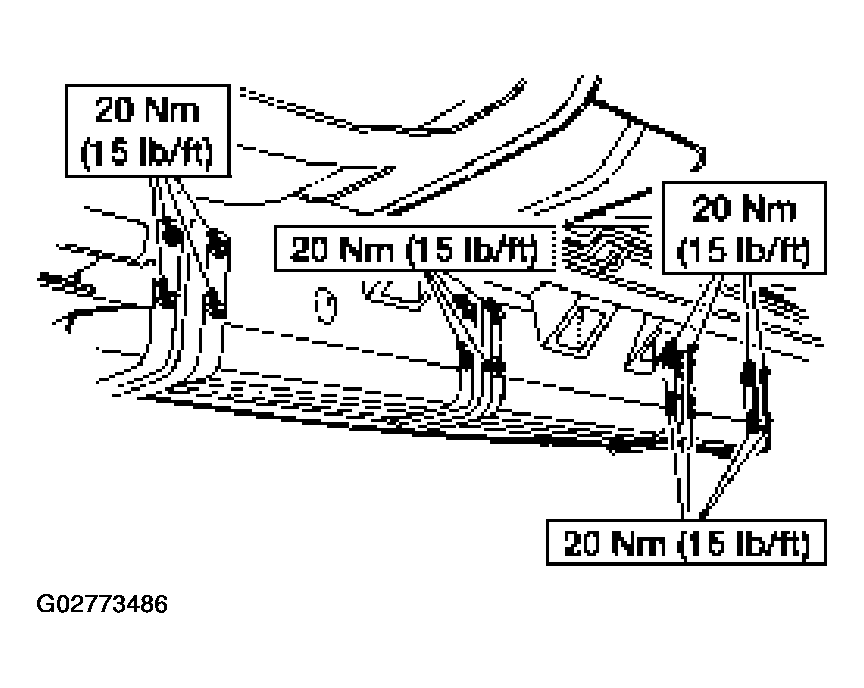

    Fig 2: Loosening Running Board Bolts
    G02773486Courtesy of FORD MOTOR CO.
  4. Remove the front fender splash shield pin-type retainers.
    Fig 3: Removing Front Fender Splash Shield Pin-Type Retainers
    G02773487Courtesy of FORD MOTOR CO.
  5. Remove the front fender splash shield.
    1. Remove the screws.
    2. Remove the nuts (right side only).
    3. Remove the bolts.

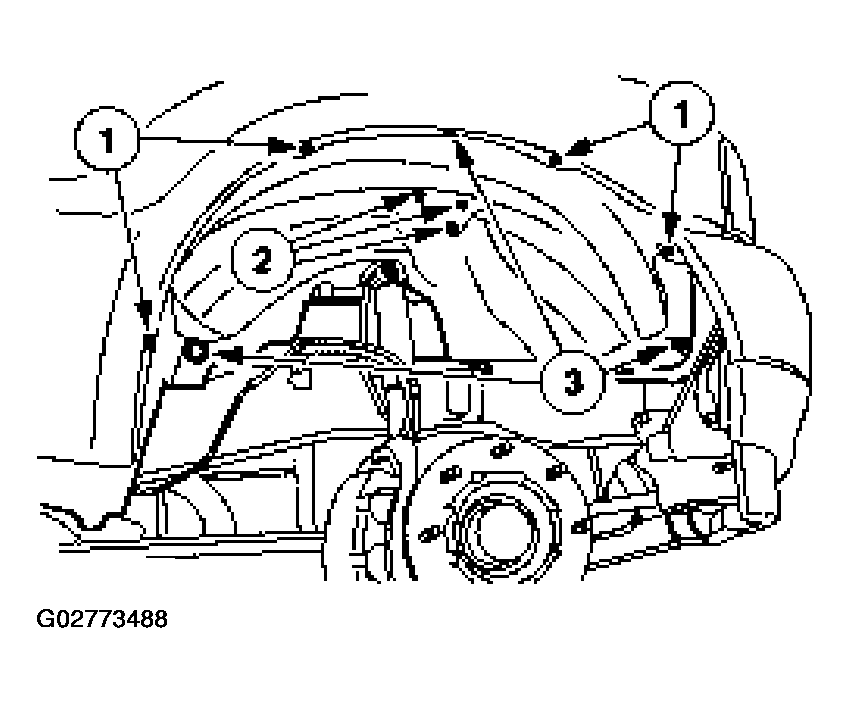

      Fig 4: Removing Front Fender Splash Shield
      G02773488Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
