Strut Assembly: Removal

WARNING: This page is about a different car, the 1999 Mercury Mystique, 1999 Mercury Cougar, 1999 Ford Contour, 1998 Mercury Mystique, and 1998 Ford Contour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove wheel assembly. Disconnect anti-lock brake sensor wiring from strut assembly. Remove anti-lock brake sensor. Disconnect brakeline from brake hose, and remove brake hose from strut assembly. Remove strap attaching parking brake cable to tie rod. Disconnect stabilizer bar link from control arm. Remove bolt securing tie rod to spindle.

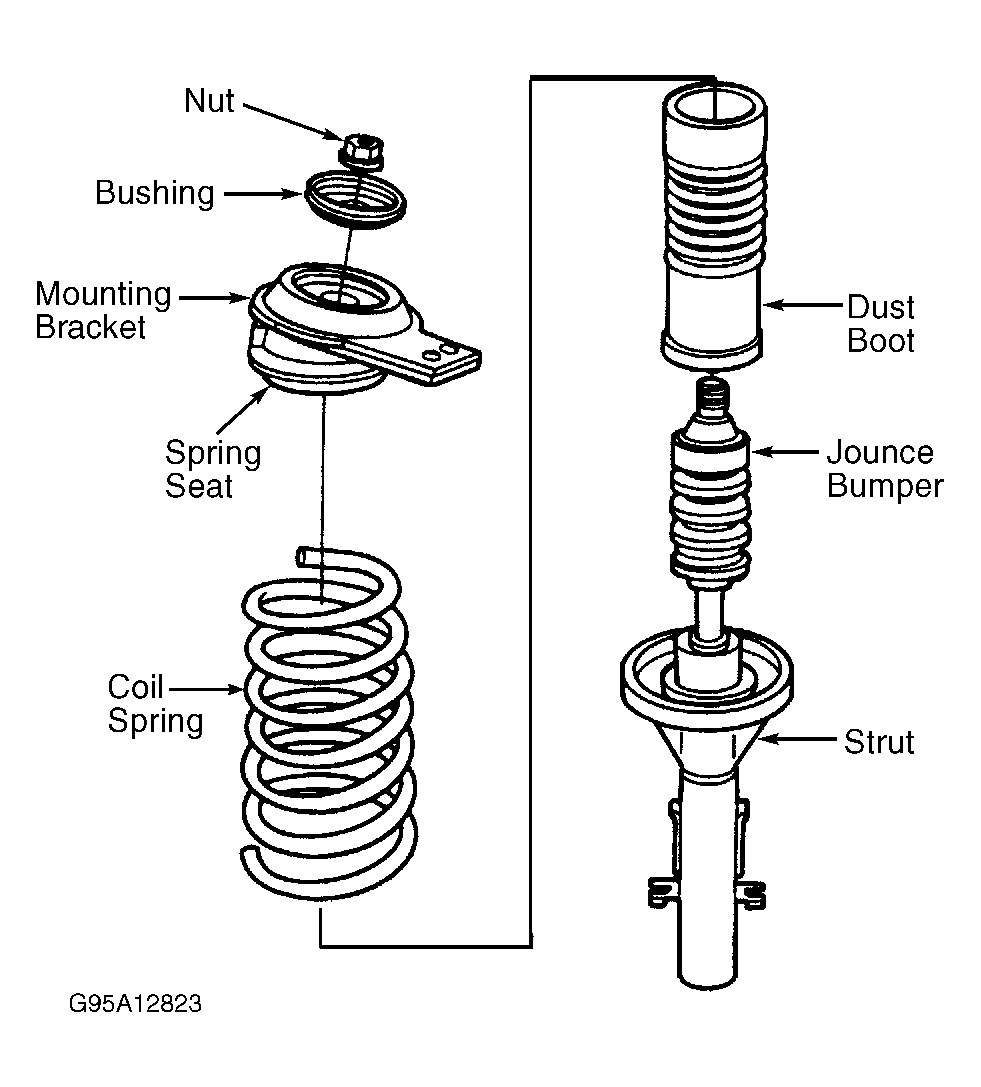

  2. Place jackstands under front and rear control arms, and remove strut-to-spindle pinch bolt. Separate strut from spindle. Using Strut Spring Compressor (T81P-5310-A), compress rear springs. Remove 2 bolts attaching upper strut assembly, and remove strut assembly. See Figure.
