Pinpoint Test J: Pcm Id Does Not Match Between Passive Anti-Theft (Pats) Module And Powertrain Control Module (Pcm)

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

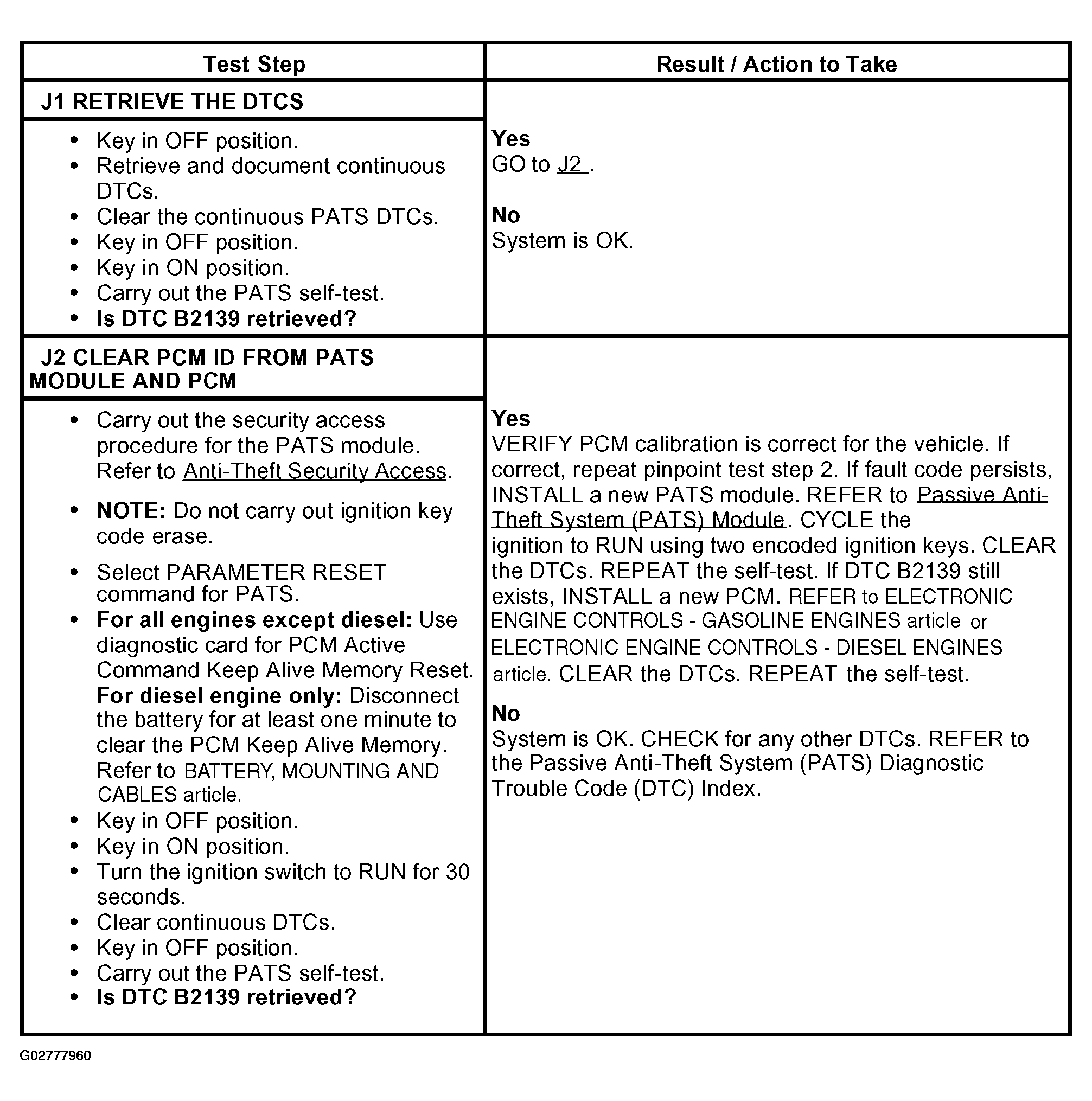

Fig 1: Pinpoint Test J: PCM Id Does Not Match Between Passive Anti-Theft
G02777960Courtesy of FORD MOTOR CO.
