Pinpoint Test I: Passive Anti-Theft System (Pats) Transceiver Signal Is Not Received (Not Connected, Damaged, Or Wiring)

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

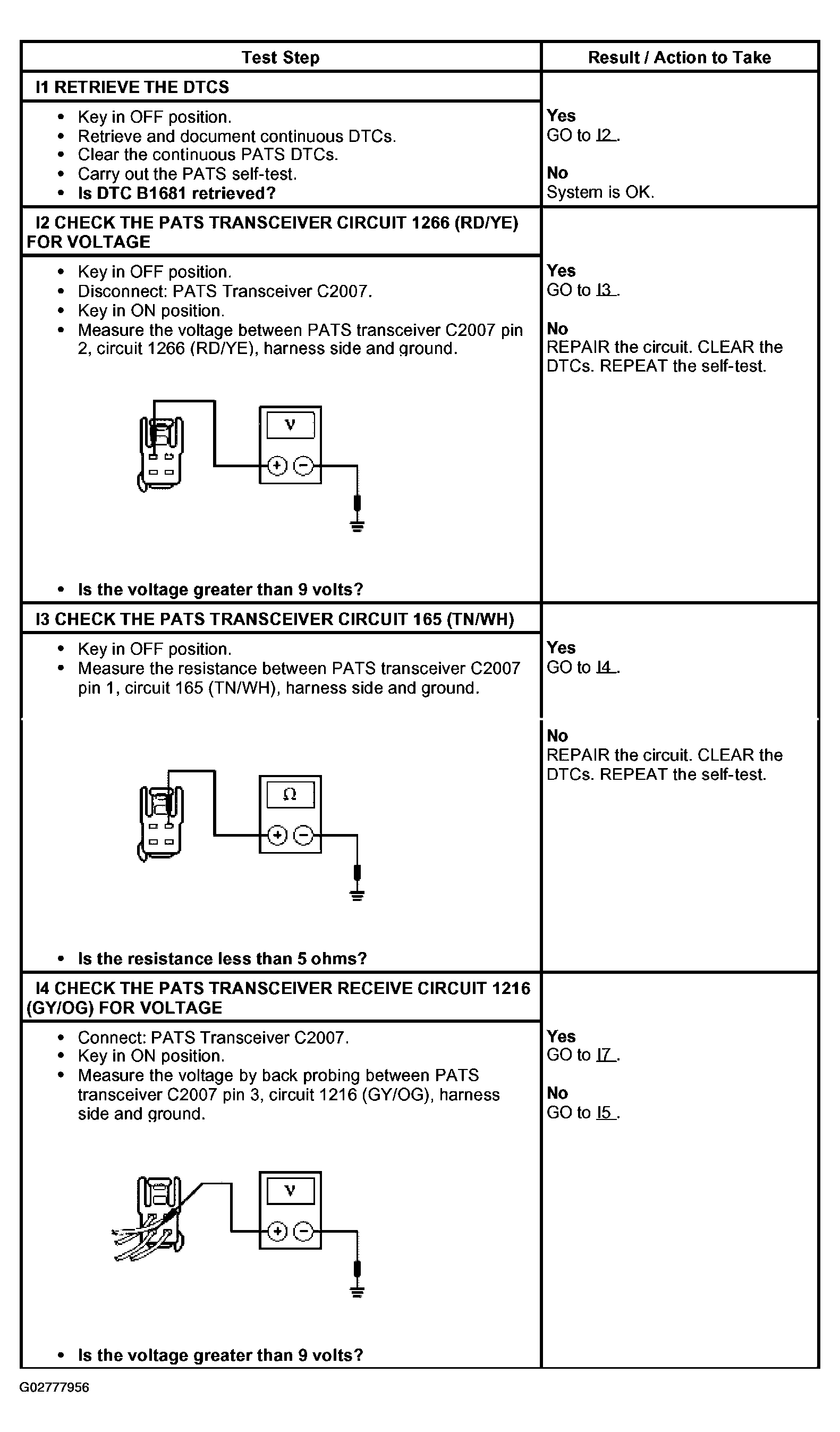

Fig 1: Pinpoint Test I: Passive Anti-Theft System (Pats) Transceiver Signal Is Not Received (I1-I4)
G02777956Courtesy of FORD MOTOR CO.

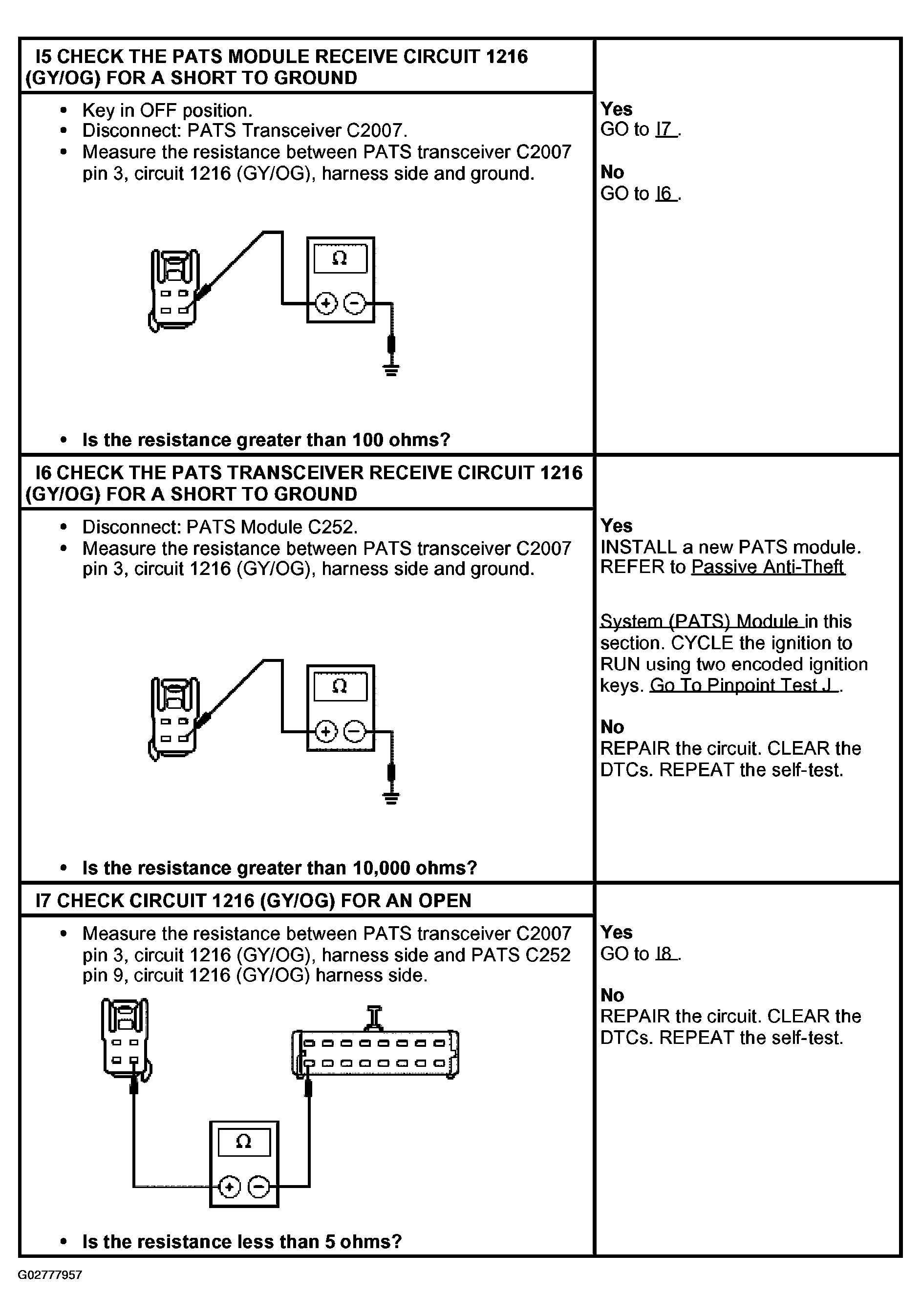

Fig 2: Pinpoint Test I: Passive Anti-Theft System (Pats) Transceiver Signal Is Not Received (I5-I7)
G02777957Courtesy of FORD MOTOR CO.

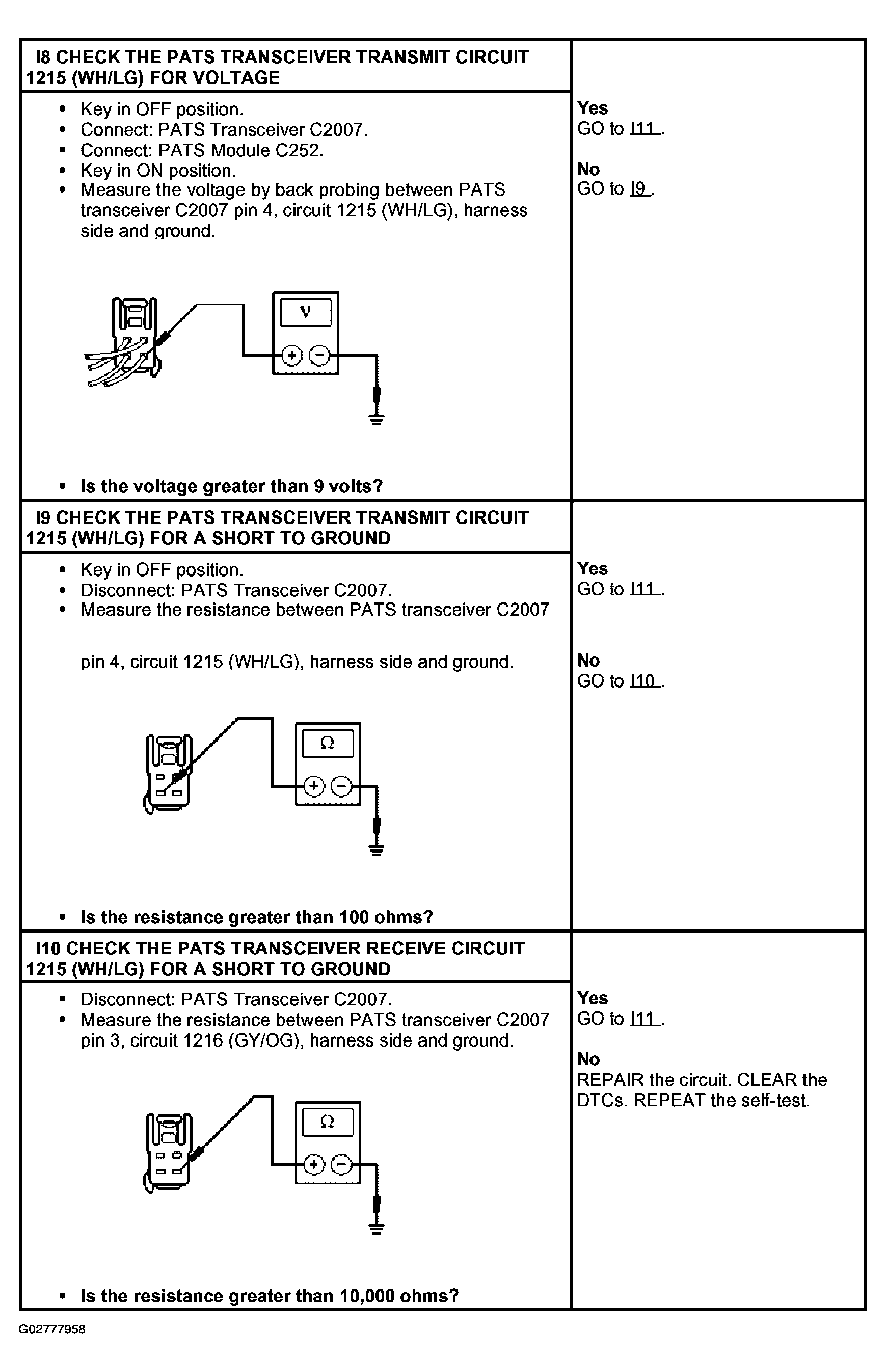

Fig 3: Pinpoint Test I: Passive Anti-Theft System (Pats) Transceiver Signal Is Not Received (I8-I10)
G02777958Courtesy of FORD MOTOR CO.

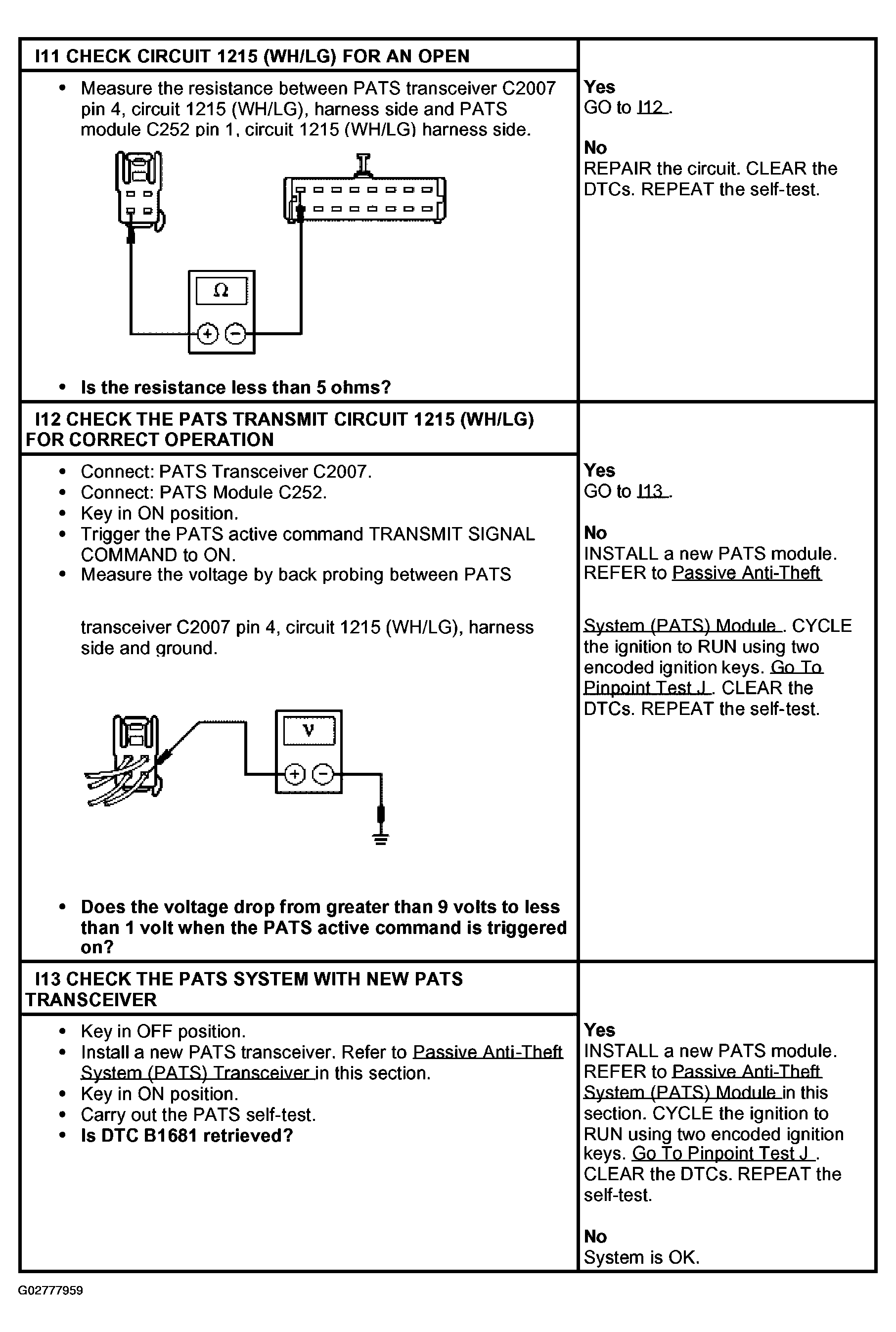

Fig 4: Pinpoint Test I: Passive Anti-Theft System (Pats) Transceiver Signal Is Not Received (I11-I13)
G02777959Courtesy of FORD MOTOR CO.
