Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The side marker lamp and parking lamp are one piece. Do not pull on the side marker to pull the assembly out.
  1. Remove the parking lamp assembly.
    1. Remove the parking lamp bolts.
    2. Position the parking lamp assembly so the electrical connectors can be accessed.
    3. Disconnect the electrical connectors.
      Fig 1: Disconnecting Electrical Connectors
      G02777868Courtesy of FORD MOTOR CO.
  2. Remove the headlamp bezel.
    1. Remove the upper bolts.
    2. Remove the lower bolts.
    3. Remove the headlamp bezel.

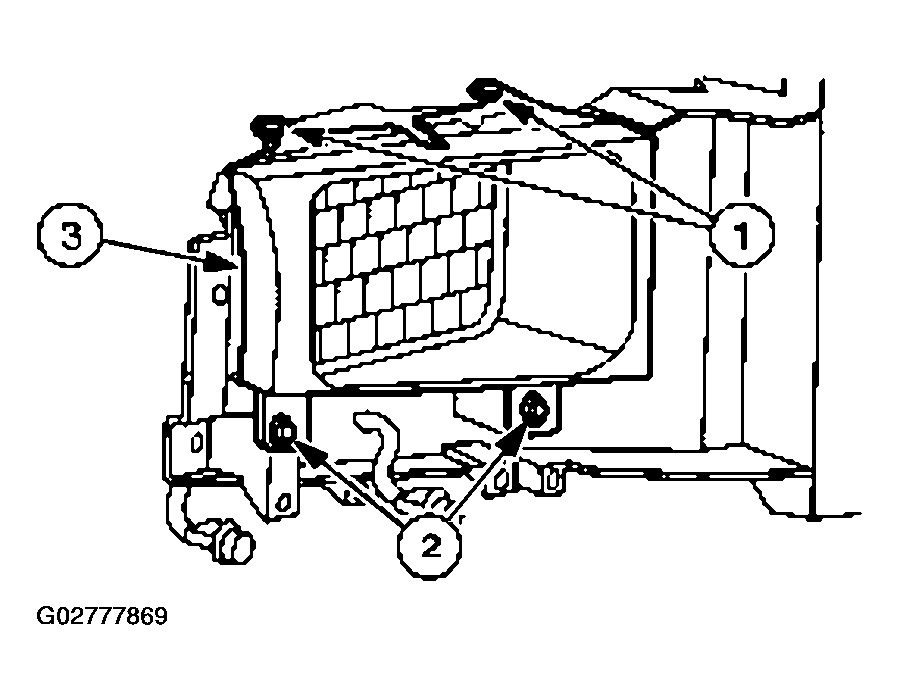

      Fig 2: Removing Headlamp Bezel
      G02777869Courtesy of FORD MOTOR CO.
  3. Remove the headlamp.
    1. Remove the headlamp retaining ring screws.
    2. Remove the headlamp retaining ring.
    3. Position the headlamp so the electrical connector can be accessed.
    4. Disconnect the electrical connector.

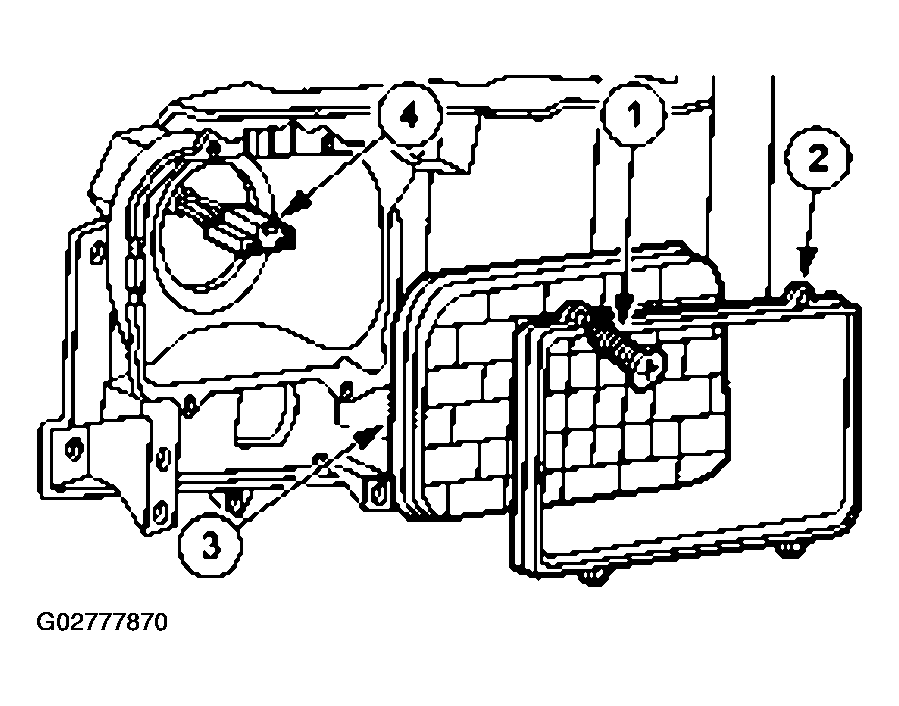

      Fig 3: Disconnecting Electrical Connector
      G02777870Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
