Inspection and Verification

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the turn signal/hazard lamps.
  2. Visually inspect the following for obvious signs of mechanical and electrical damage.

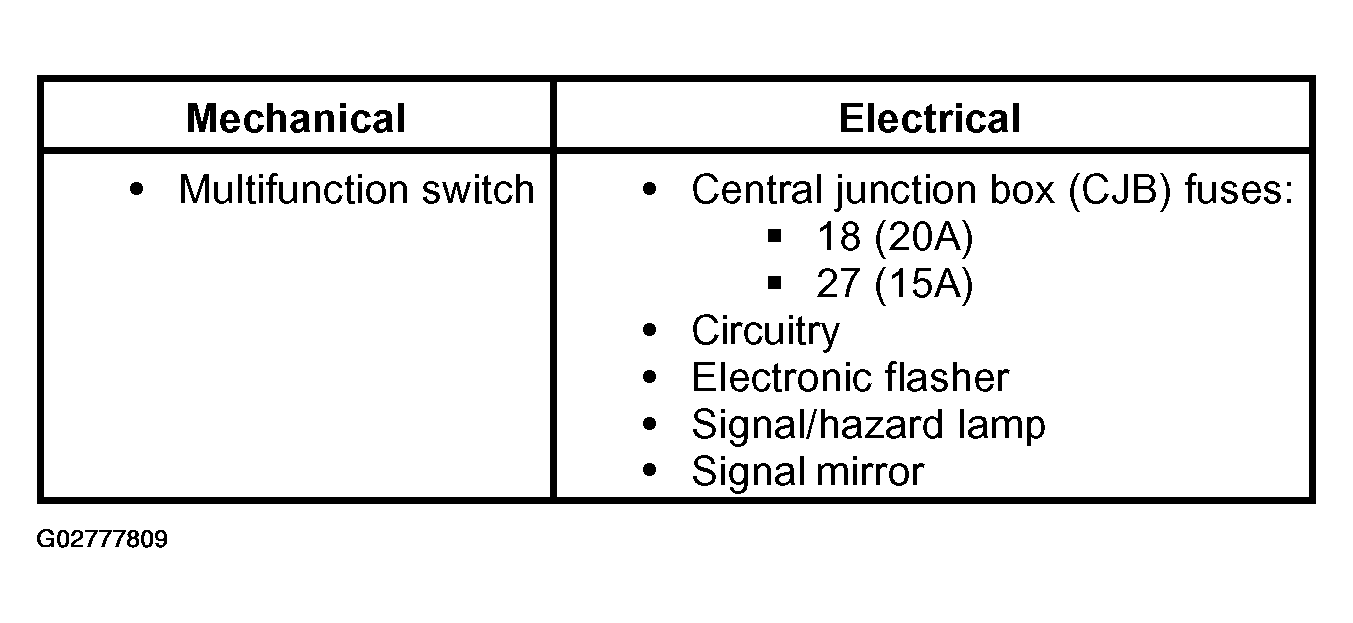

    Fig 1: Visual Inspection Chart
    G02777809Courtesy of FORD MOTOR CO.
  3. If the concern is not visually evident, verify the symptom and proceed to the Symptom Chart.
