Pinpoint Test Z: The Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/STOPLAMP/Hazard Flasher Lamp

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

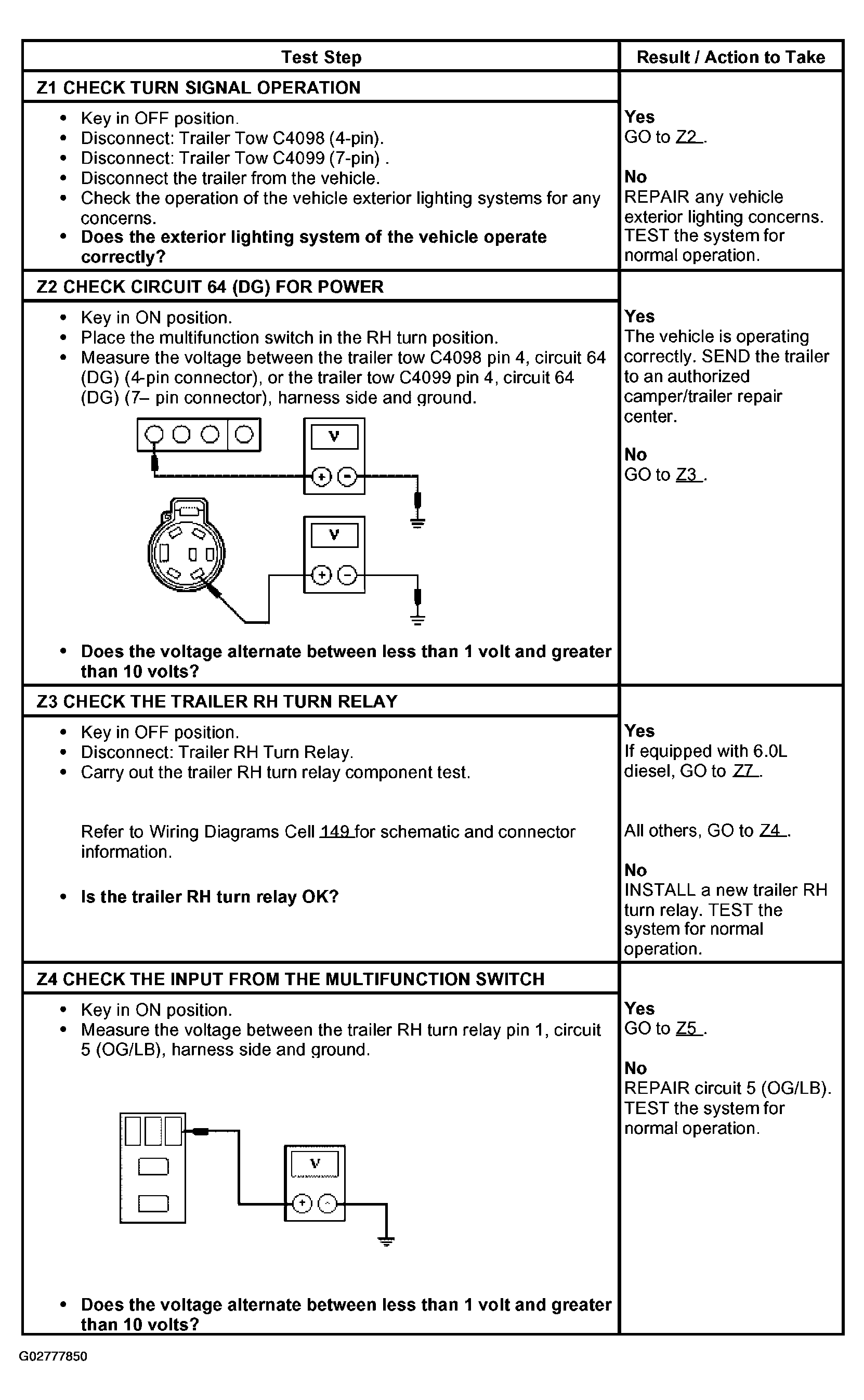

Fig 1: Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (Z1-Z4)
G02777850Courtesy of FORD MOTOR CO.

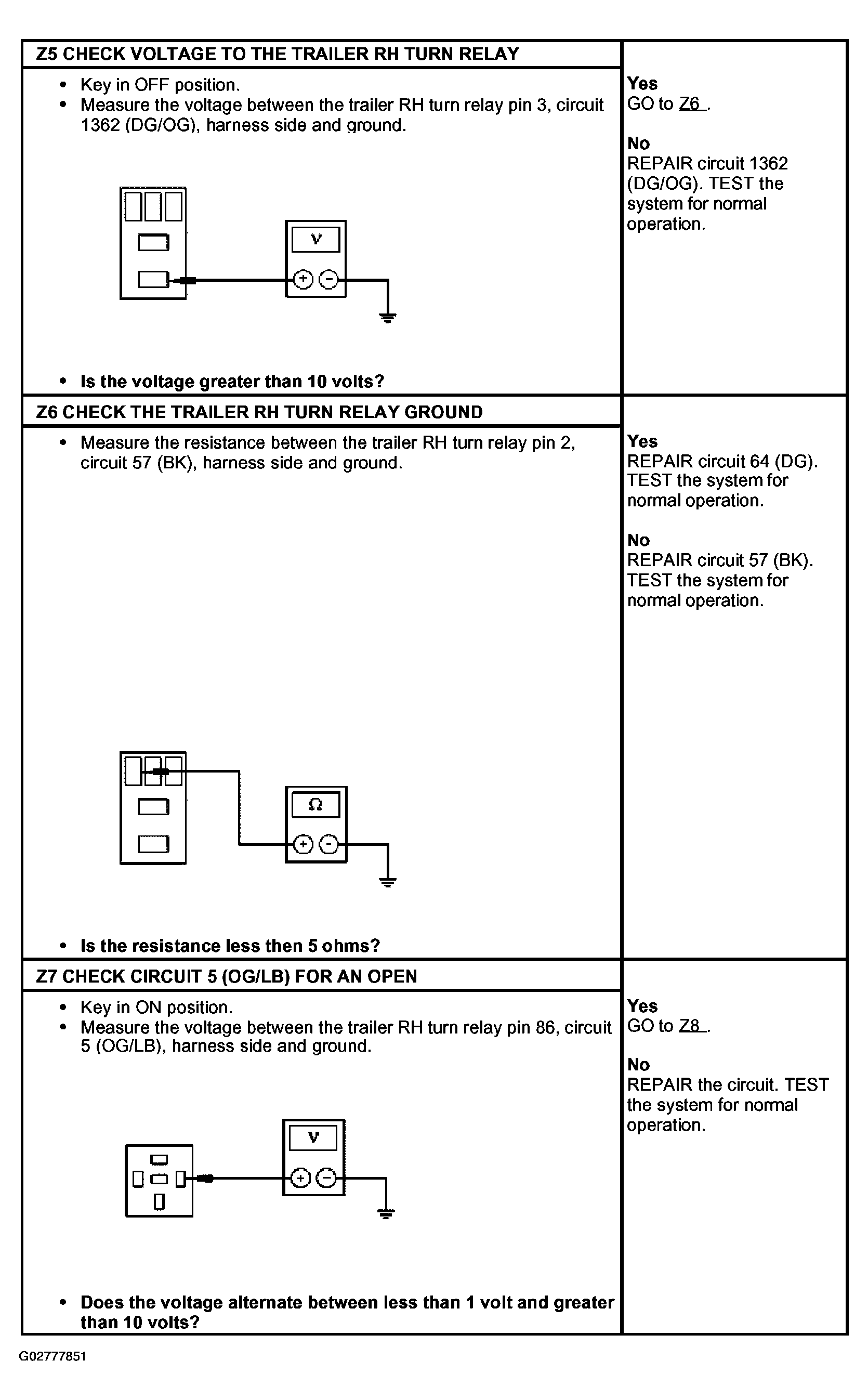

Fig 2: Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (Z5-Z7)
G02777851Courtesy of FORD MOTOR CO.

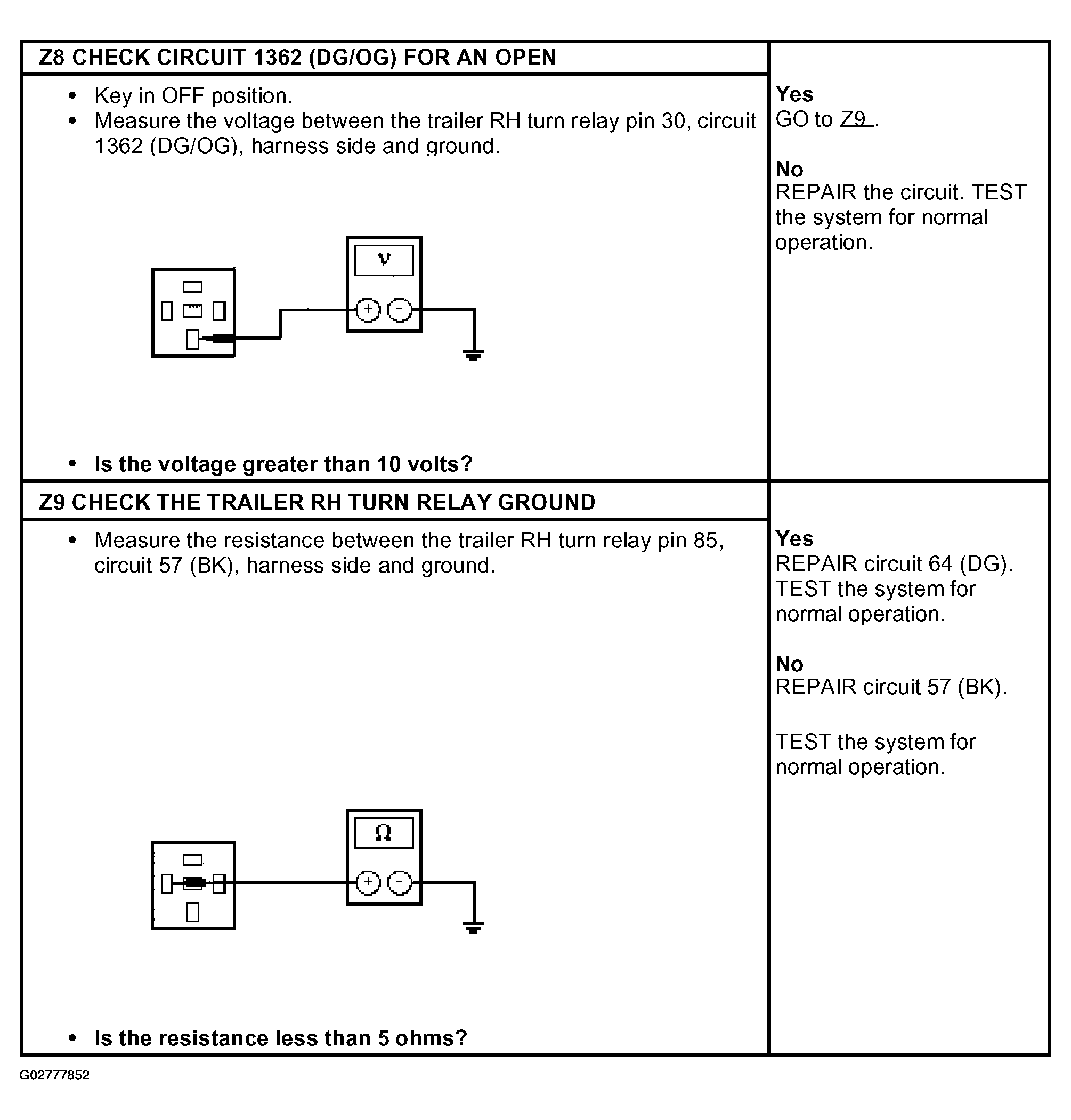

Fig 3: Pinpoint Test Z: Individual Trailer Lamp Is Inoperative - RH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (Z8 & Z9)
G02777852Courtesy of FORD MOTOR CO.
