Pinpoint Test Ad: The Trailer Lamps Are On Continuously

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

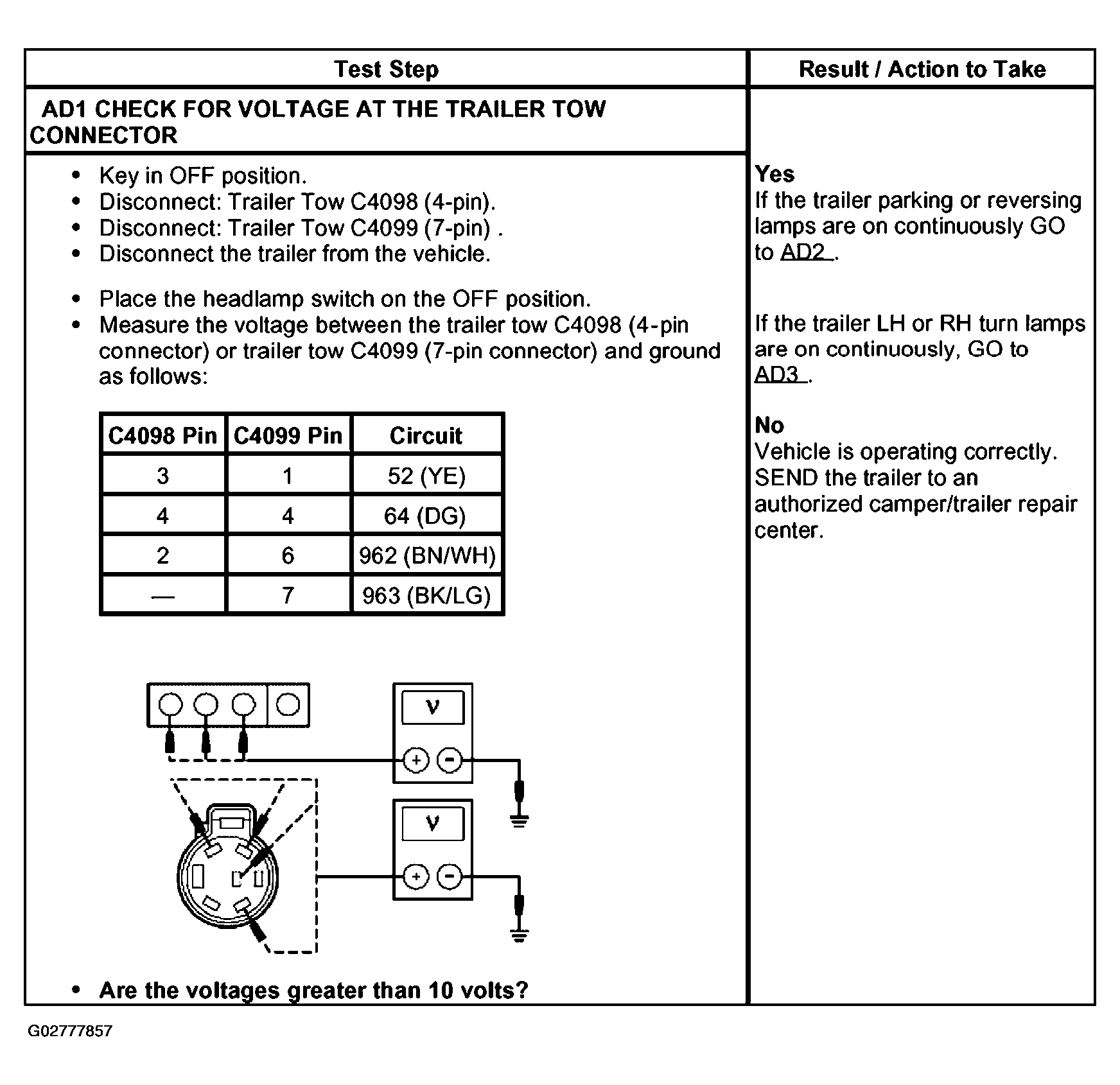

Fig 1: Pinpoint Test AD: Trailer Lamps Are On Continuously (AD1)
G02777857Courtesy of FORD MOTOR CO.

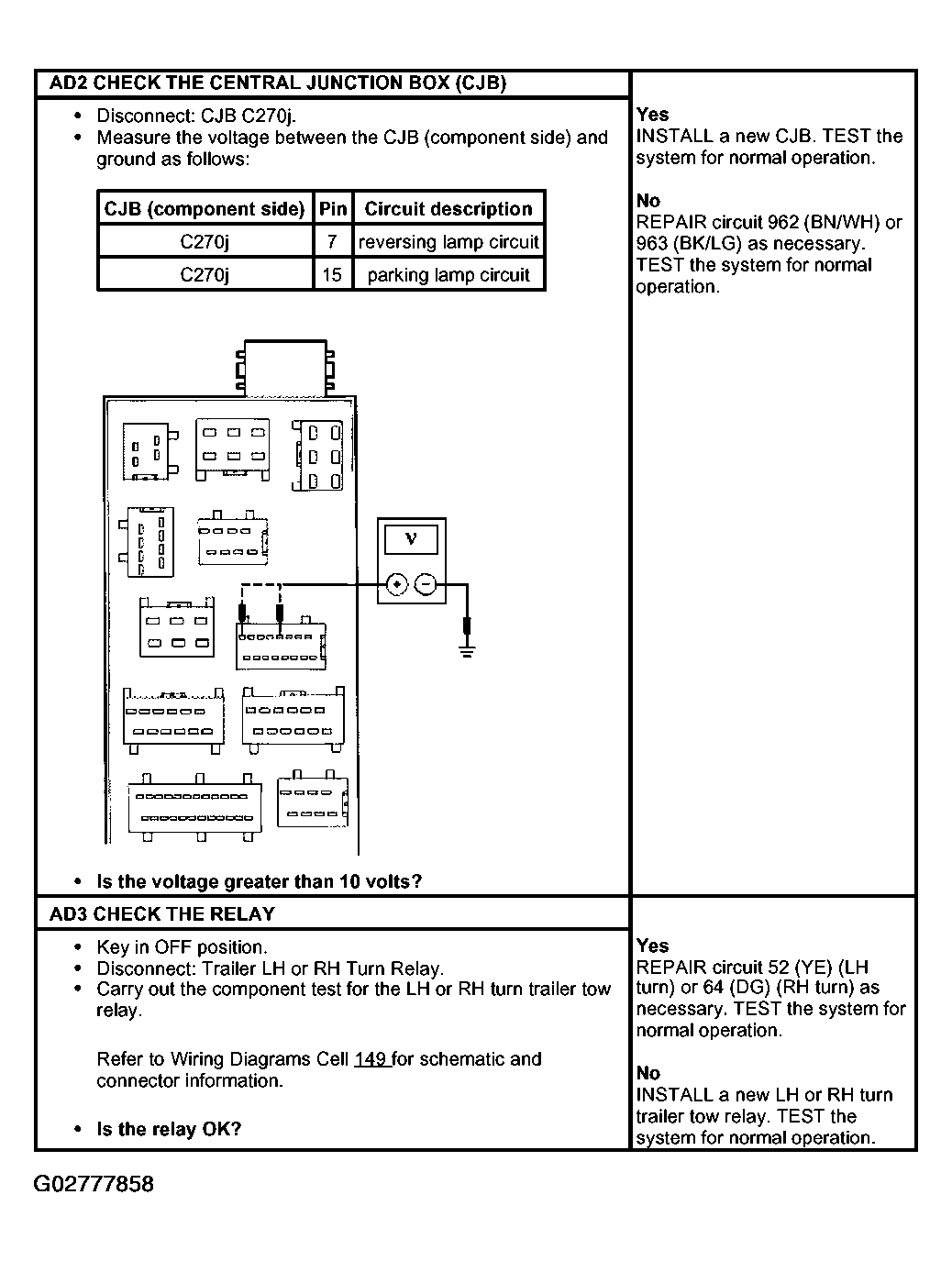

Fig 2: Pinpoint Test AD: Trailer Lamps Are On Continuously (AD2 & AD3)
G02777858Courtesy of FORD MOTOR CO.
