Pinpoint Test Aa: The Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/STOPLAMP/Hazard Flasher Lamp

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

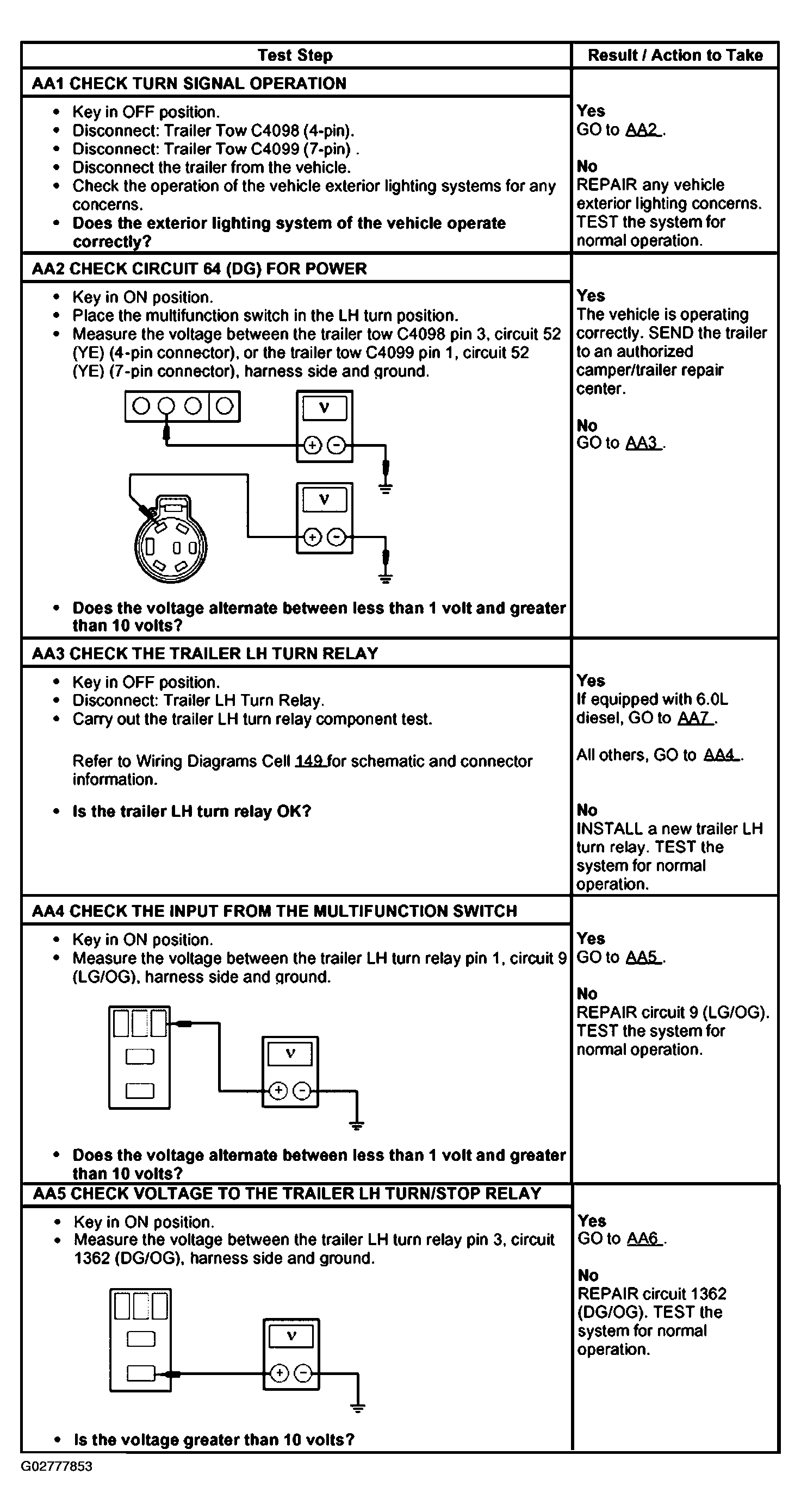

Fig 1: Pinpoint Test AA: Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (AA1-AA5)
G02777853Courtesy of FORD MOTOR CO.

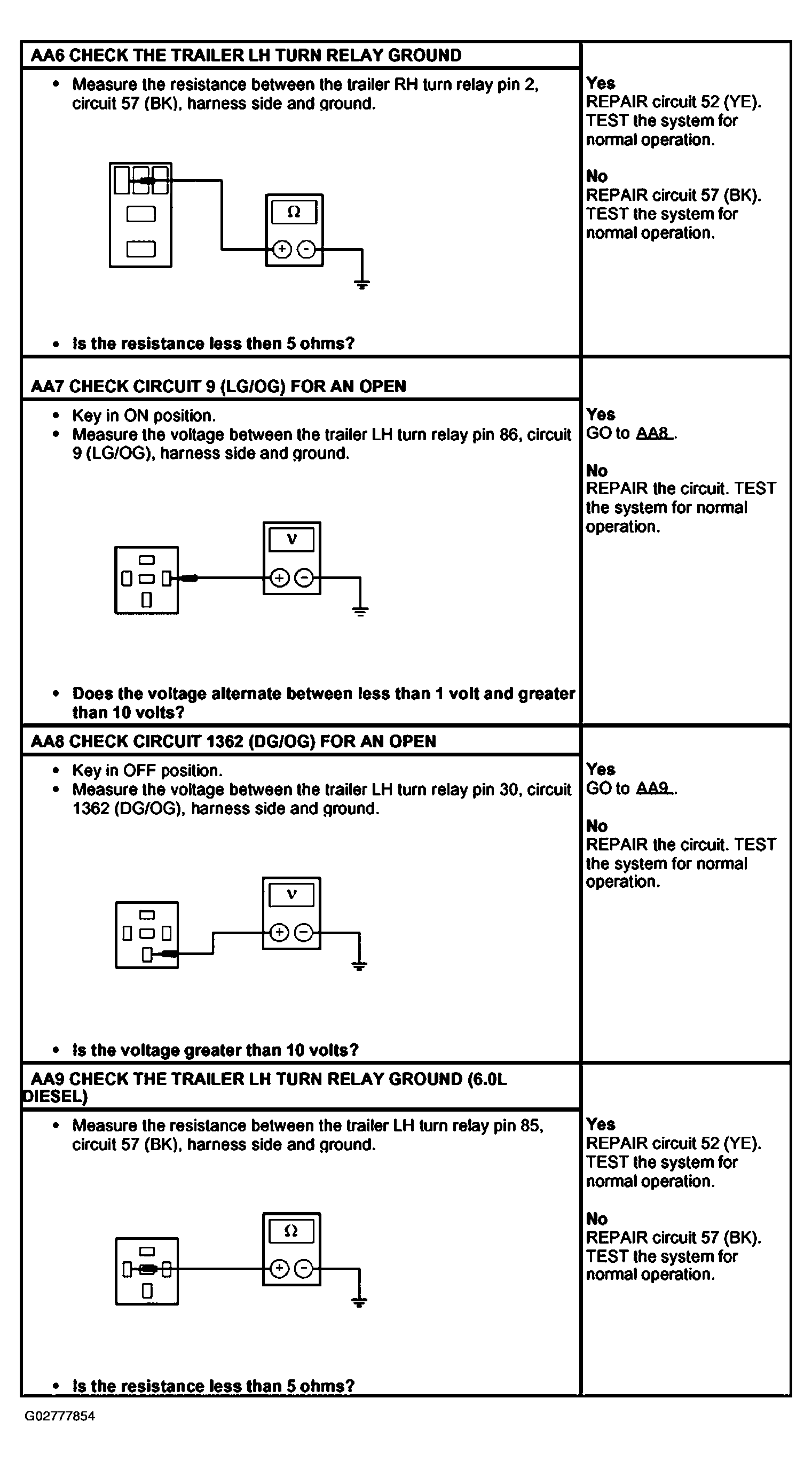

Fig 2: Pinpoint Test AA: Individual Trailer Lamp Is Inoperative - LH Trailer Turn Signal/Stoplamp/Hazard Flasher Lamp (AA6-AA9)
G02777854Courtesy of FORD MOTOR CO.
