Pinpoint Test V: The Reversing Lamps Are Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

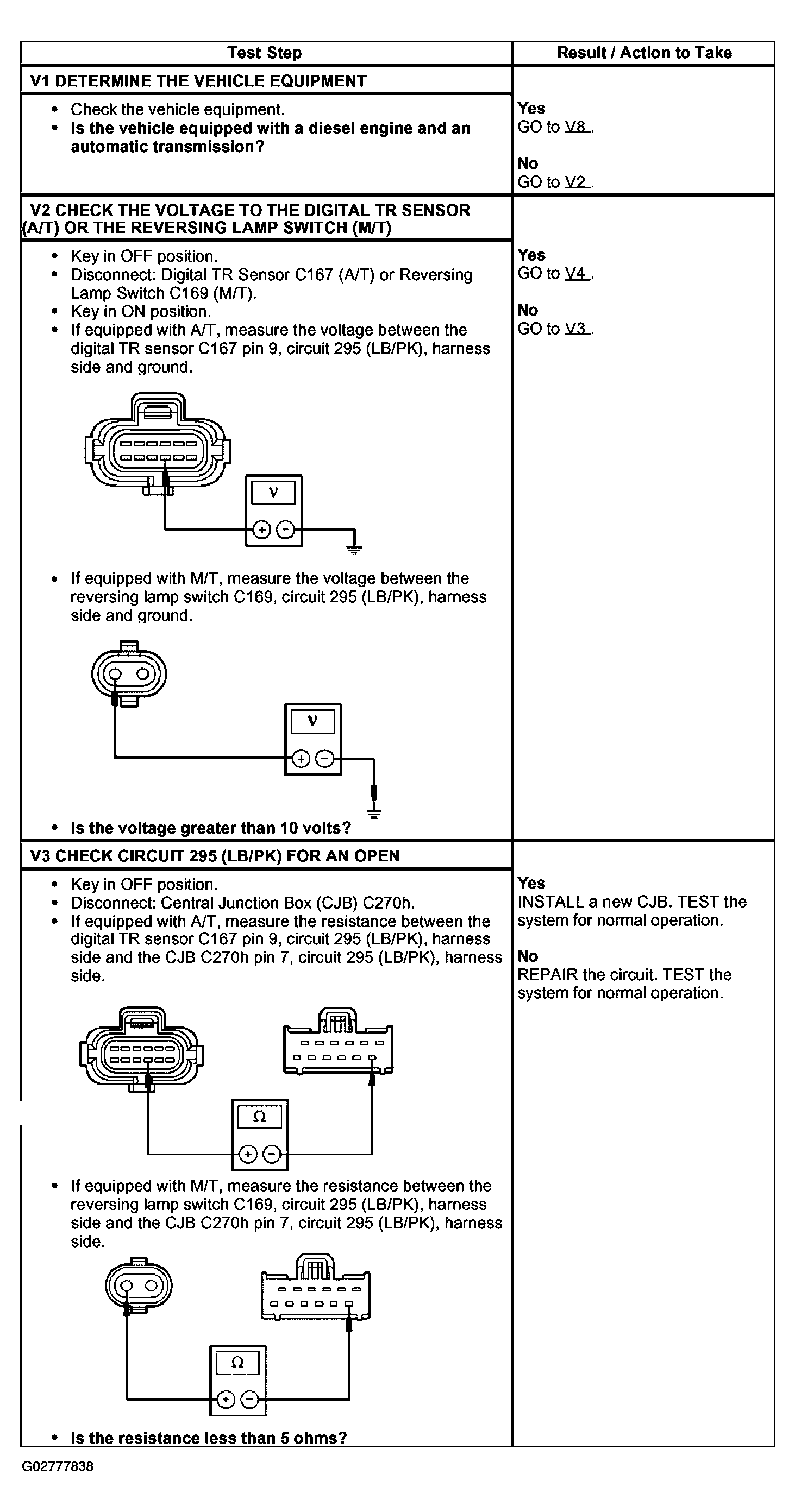

Fig 1: Pinpoint Test V: Reversing Lamps Are Inoperative (V1-V3)

Courtesy of FORD MOTOR CO.

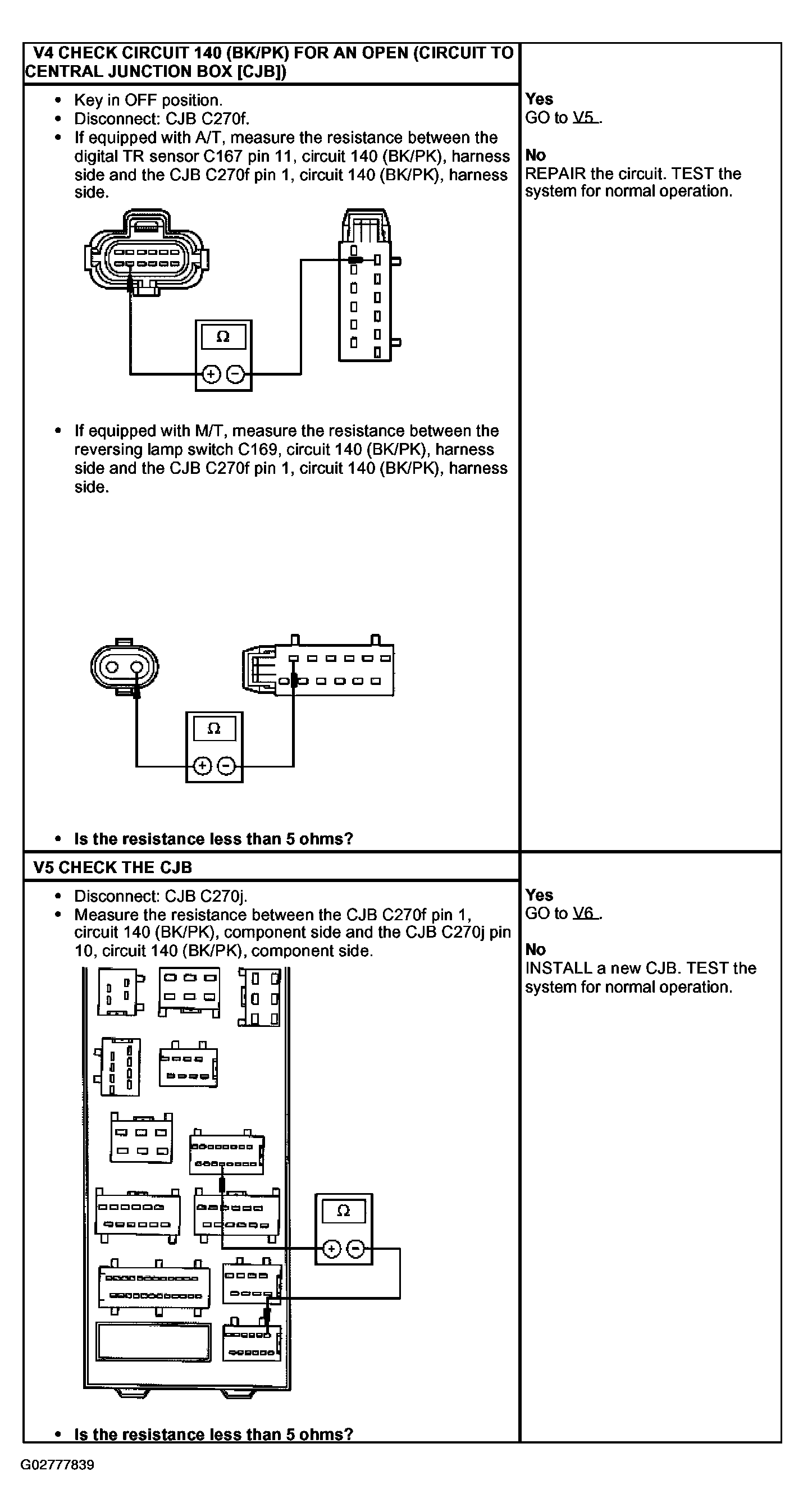

Fig 2: Pinpoint Test V: Reversing Lamps Are Inoperative (V4 & V5)

Courtesy of FORD MOTOR CO.

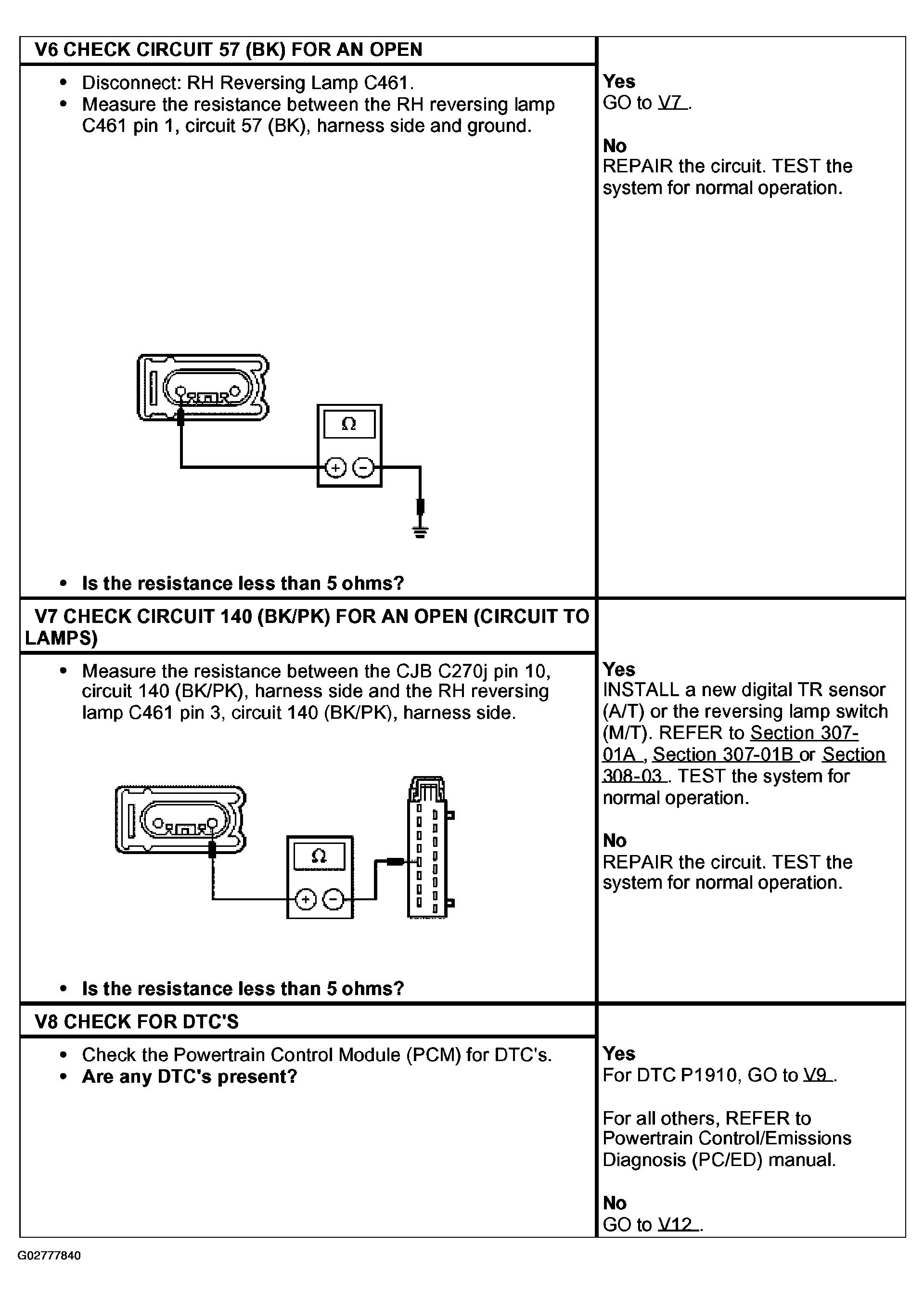

Fig 3: Pinpoint Test V: Reversing Lamps Are Inoperative (V6-V8)

Courtesy of FORD MOTOR CO.

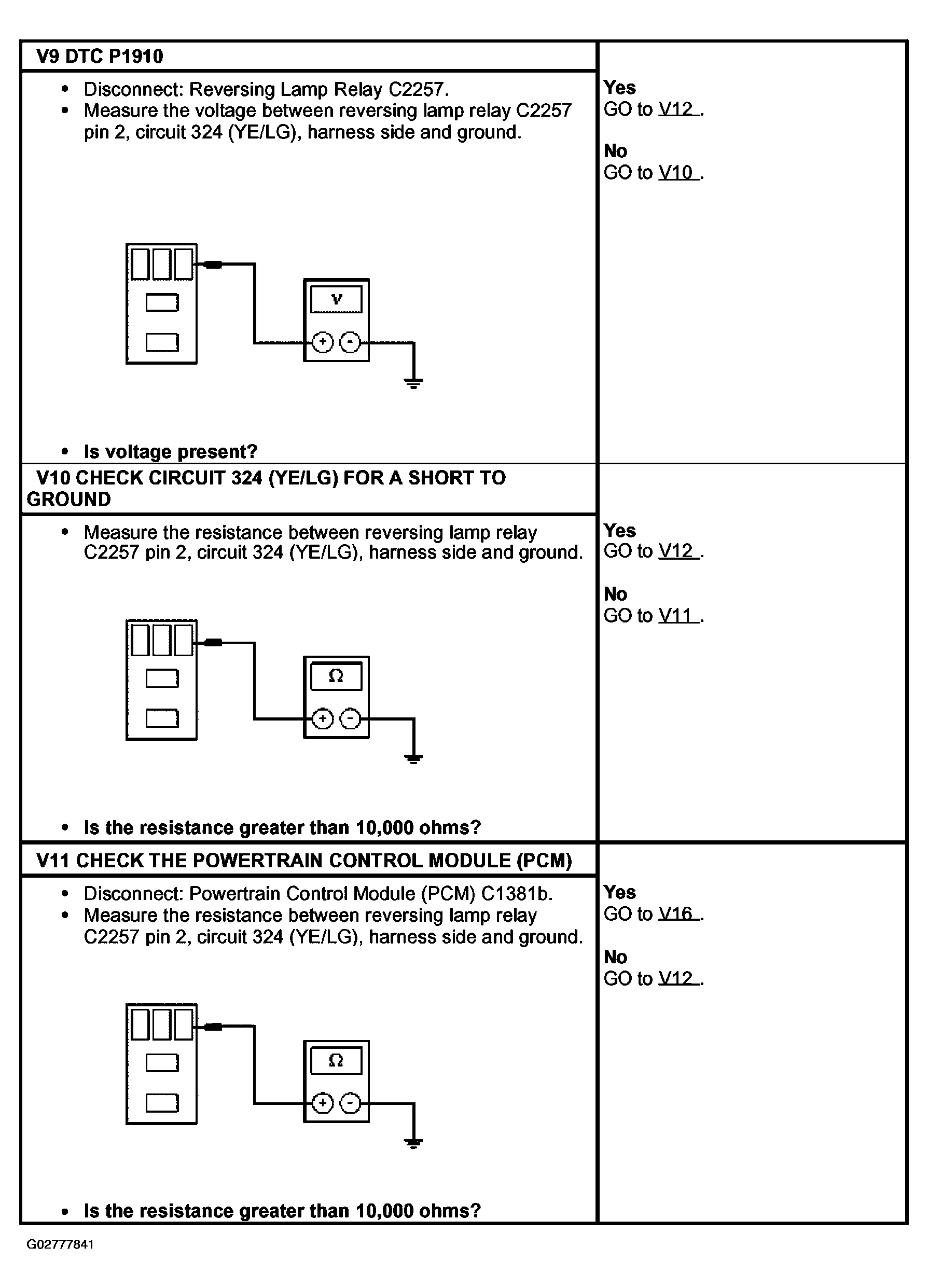

Fig 4: Pinpoint Test V: Reversing Lamps Are Inoperative (V9-V11)

Courtesy of FORD MOTOR CO.

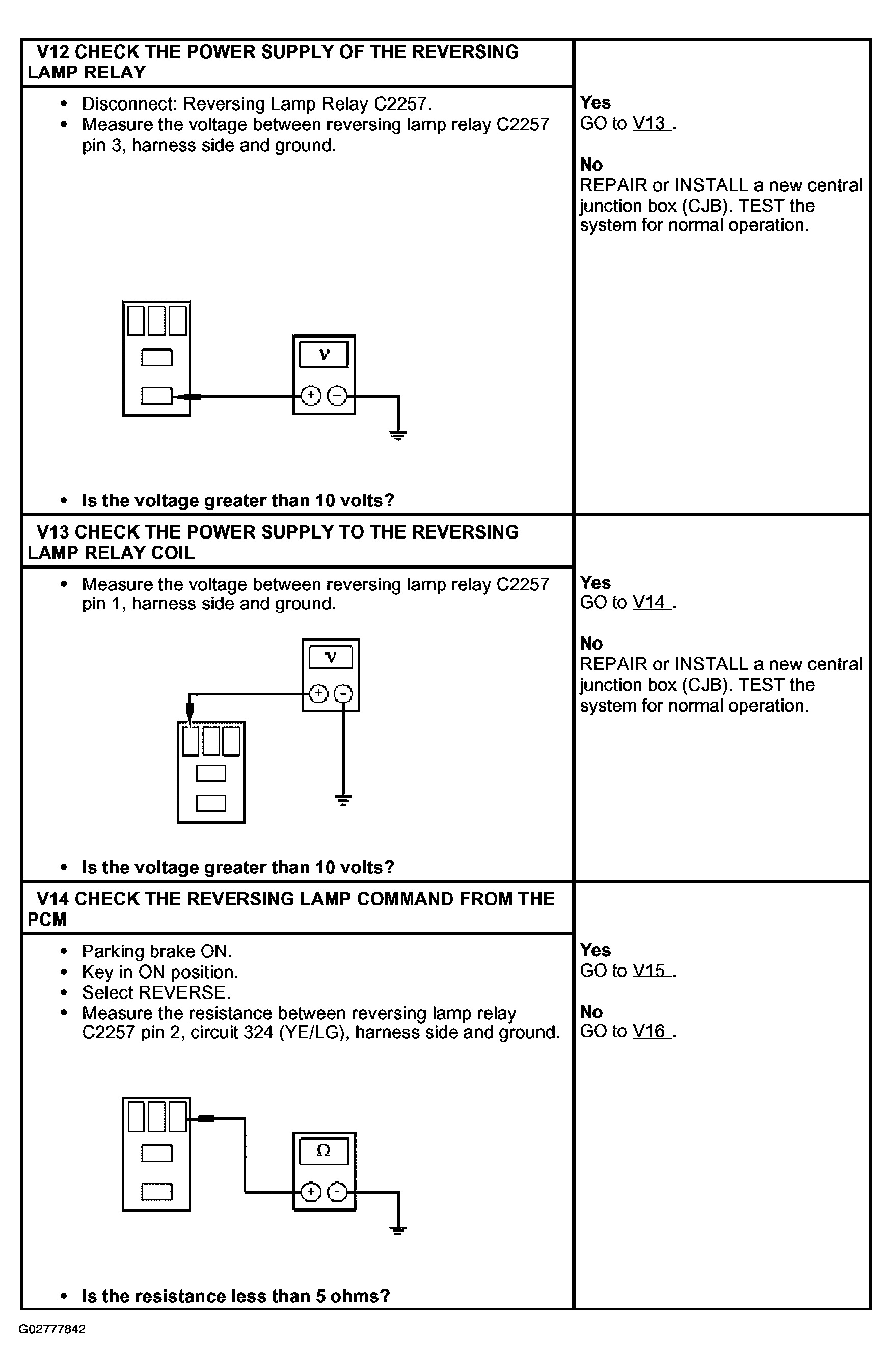

Fig 5: Pinpoint Test V: Reversing Lamps Are Inoperative (V12-V14)

Courtesy of FORD MOTOR CO.

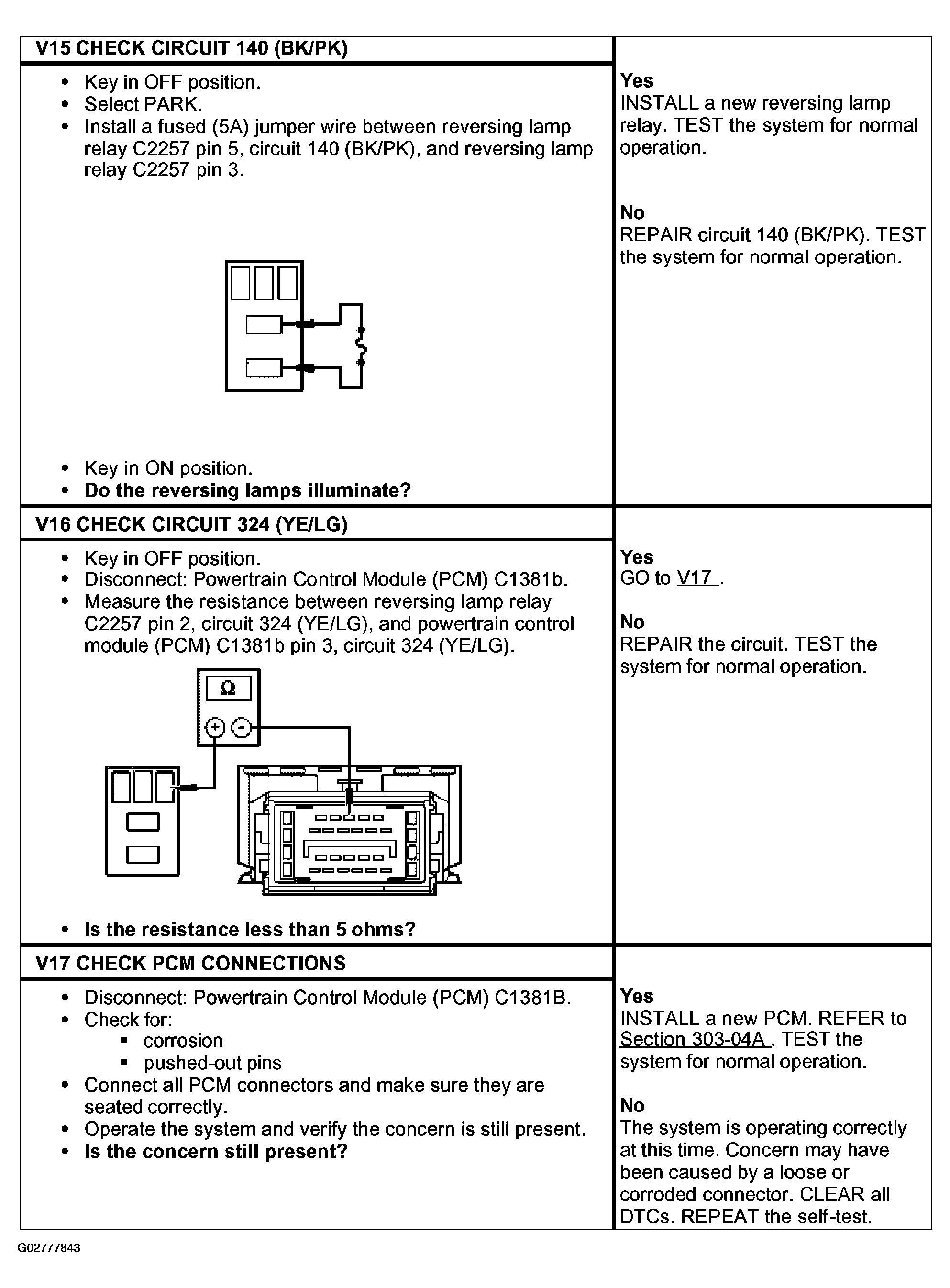

Fig 6: Pinpoint Test V: Reversing Lamps Are Inoperative (V15-V17)

Courtesy of FORD MOTOR CO.
