Pinpoint Test P: One Or More Parking, Rear Or License Lamp Is Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

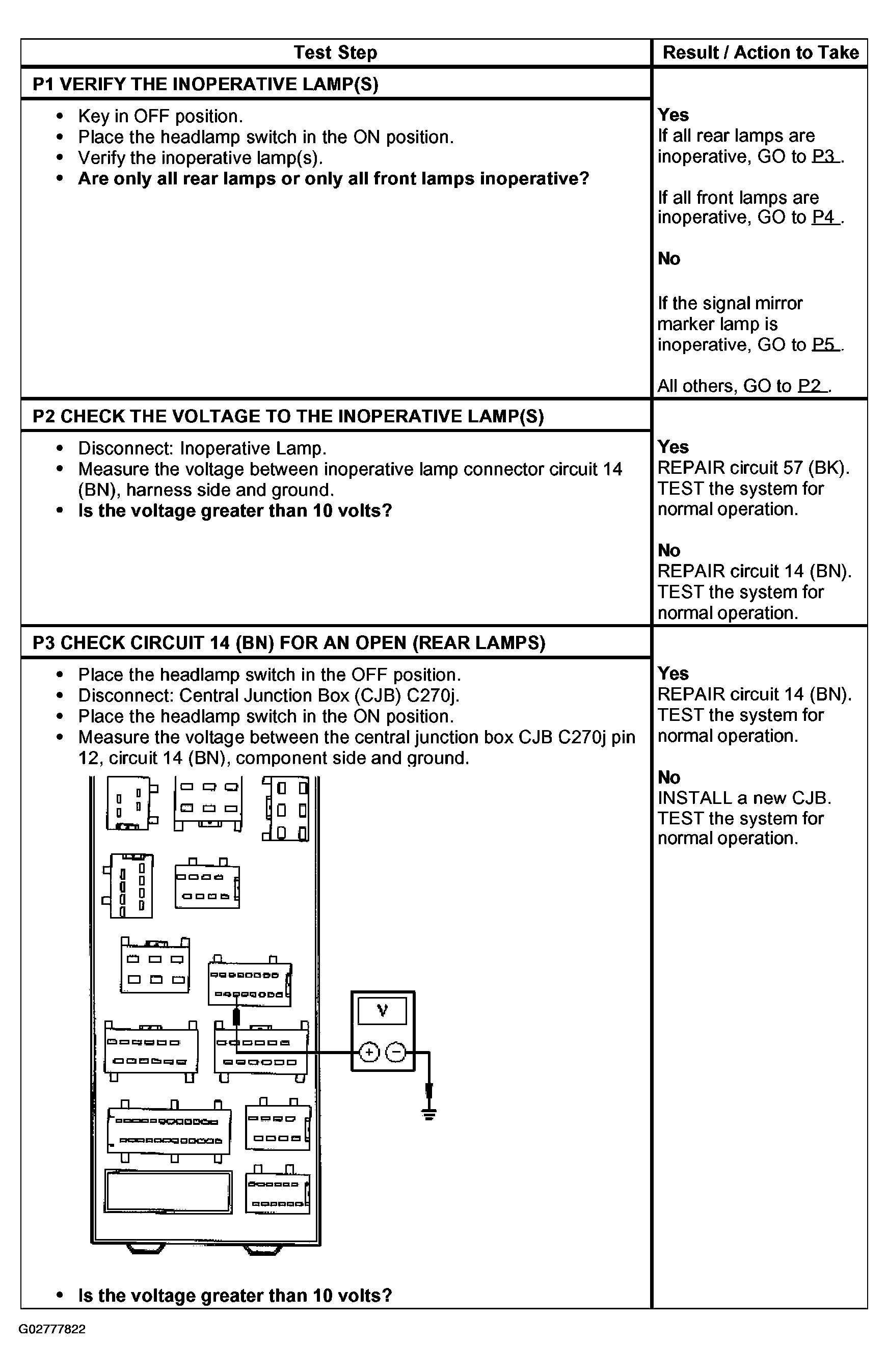

Fig 1: Pinpoint Test P: One Or More Parking, Rear Or License Lamp Is Inoperative (P1-P3)
G02777822Courtesy of FORD MOTOR CO.

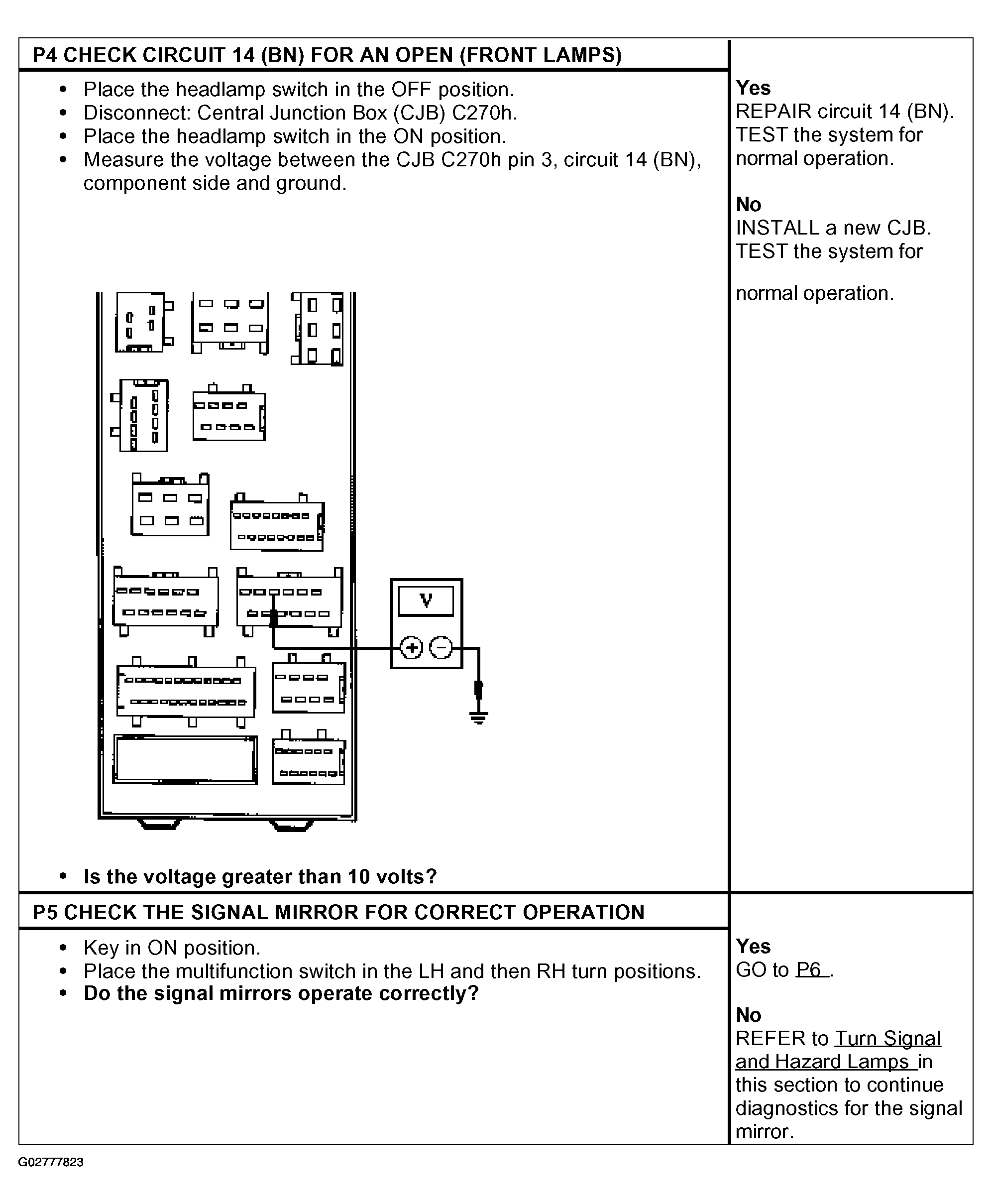

Fig 2: Pinpoint Test P: One Or More Parking, Rear Or License Lamp Is Inoperative (P4 & P5)
G02777823Courtesy of FORD MOTOR CO.

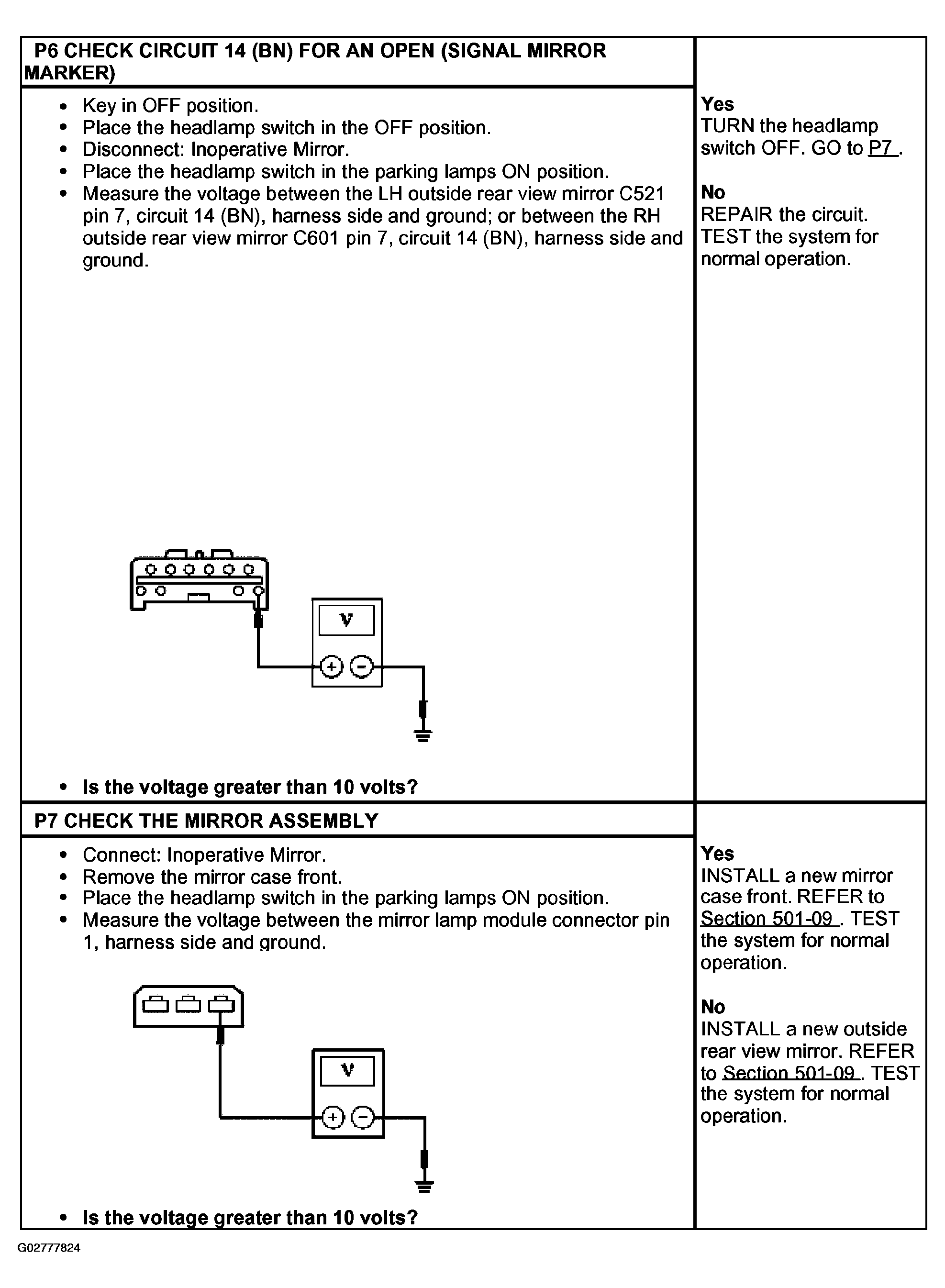

Fig 3: Pinpoint Test P: One Or More Parking, Rear Or License Lamp Is Inoperative (P6 & P7)
G02777824Courtesy of FORD MOTOR CO.
