Pinpoint Test E: The Headlamps Are On Continuously

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

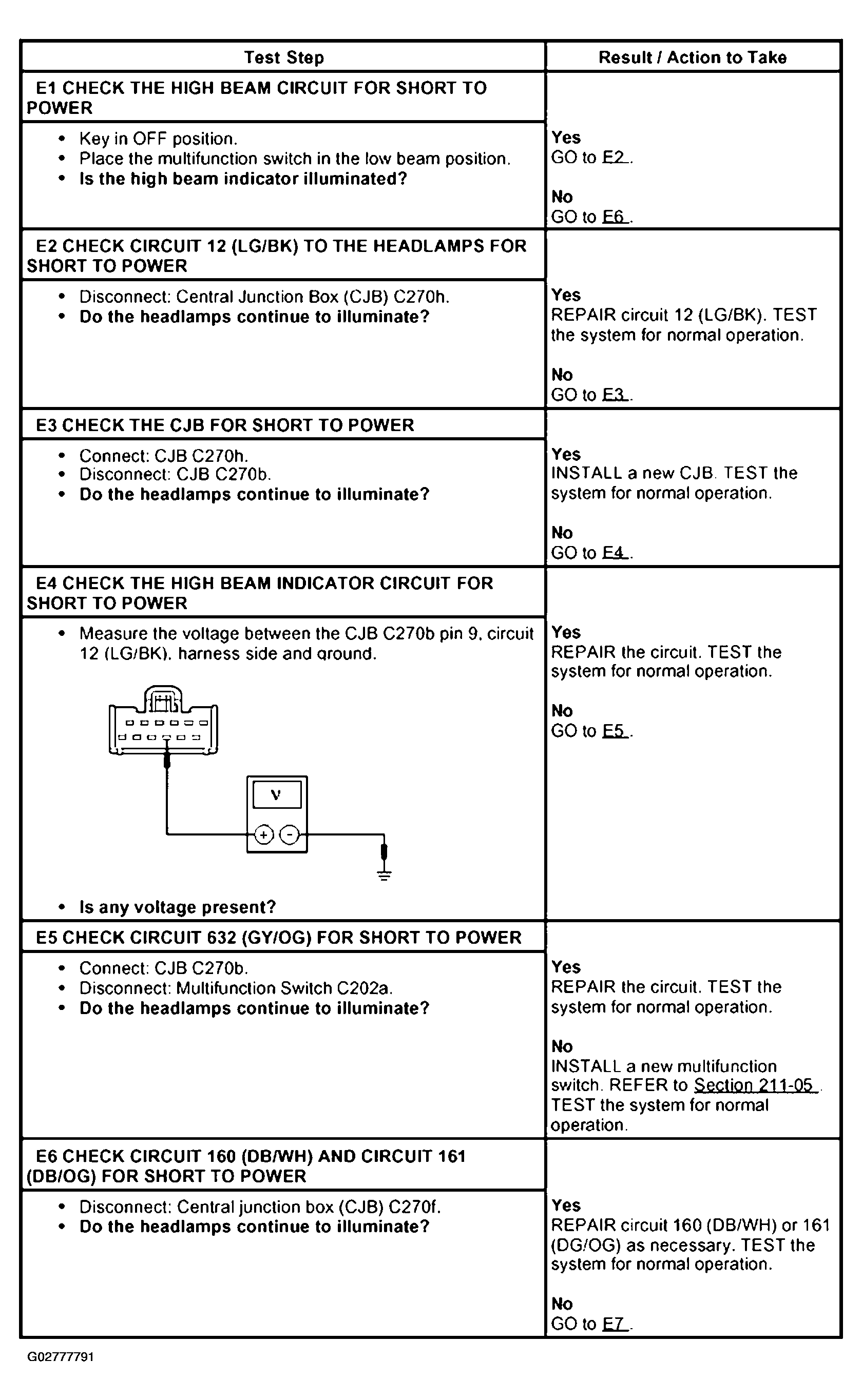

Fig 1: Pinpoint Test E: Headlamps Are On Continuously (E1-E6)
G02777791Courtesy of FORD MOTOR CO.

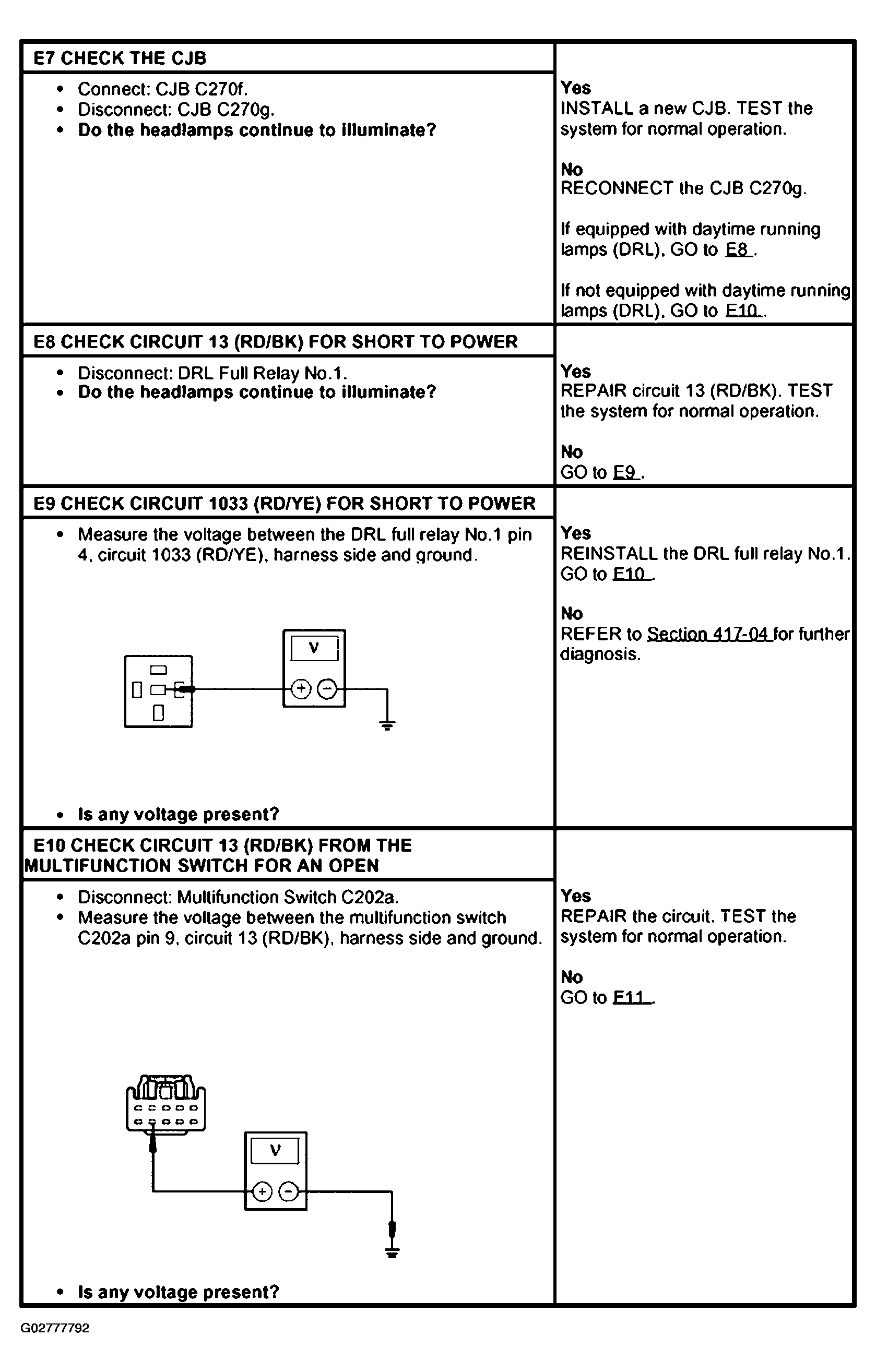

Fig 2: Pinpoint Test E: Headlamps Are On Continuously (E7-E10)
G02777792Courtesy of FORD MOTOR CO.

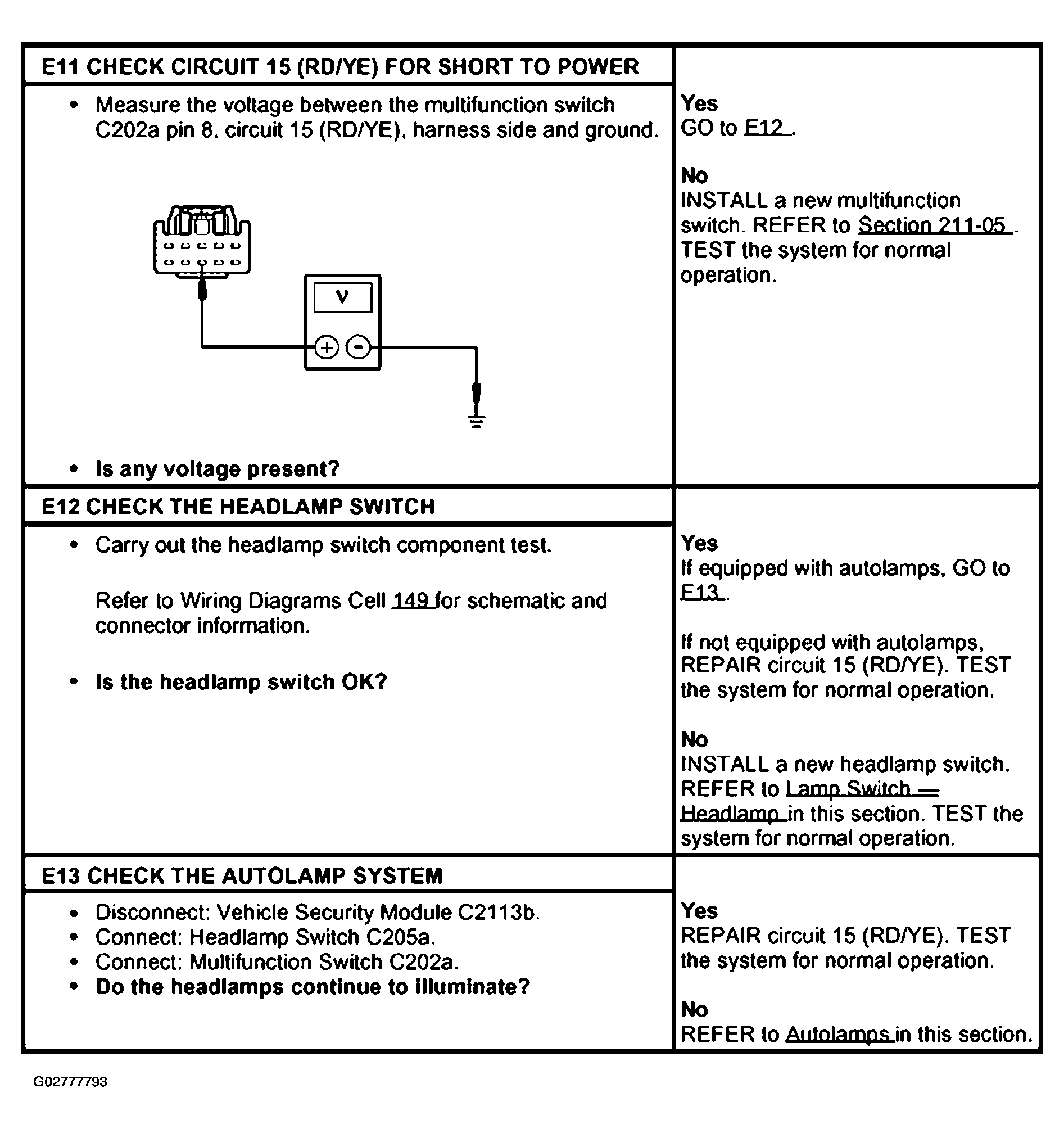

Fig 3: Pinpoint Test E: Headlamps Are On Continuously (E11-E13)
G02777793Courtesy of FORD MOTOR CO.
