Rear Auxiliary Audio Controls

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. Refer to BATTERY, MOUNTING AND CABLES .
  2. Remove the floor console. Refer to INSTRUMENT PANEL AND CONSOLE .
  3. Remove the four screws.
    • Remove the floor console trim panel.
      Fig 1: Removing Floor Console Trim Panel
      G02777765Courtesy of FORD MOTOR CO.
  4. Disconnect the rear audio control panel (RACP) electrical connectors.

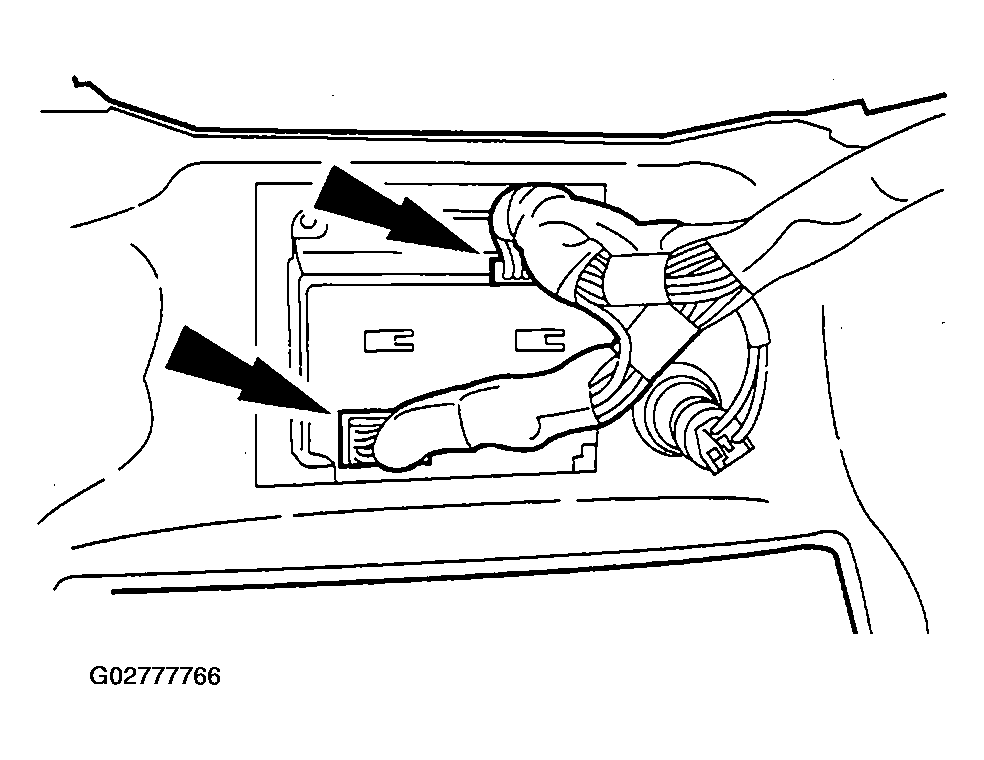

    Fig 2: Disconnecting Rear Audio Control Panel (RACP) Electrical Connectors
    G02777766Courtesy of FORD MOTOR CO.
  5. Depress both retaining tabs and remove the RACP.
    Fig 3: Removing RACP
    G02777767Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
