Diagnostic Aids

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Ford RV Cutaway, 2002 Ford Pickup, 2002 Ford F550 Super Duty, 2002 Ford F450 Super Duty, and 2002 Ford Excursion. However, it is still accessible from the selected car via links, so may be relevant.

Perform this test when directed by QUICK TEST. Brake Pressure Applied (BPA) switch is a pressure switch that senses brake pressure and is redundant with Brake On/Off (BOO) switch to provide a back-up to deactivate cruise control.

NOTE: BPA switch equipped on F650-750 with cruise control only.
Fig 1: Identifying Brake Pressure Applied Switch Circuits (Econoline)
G00096678Courtesy of FORD MOTOR CO.

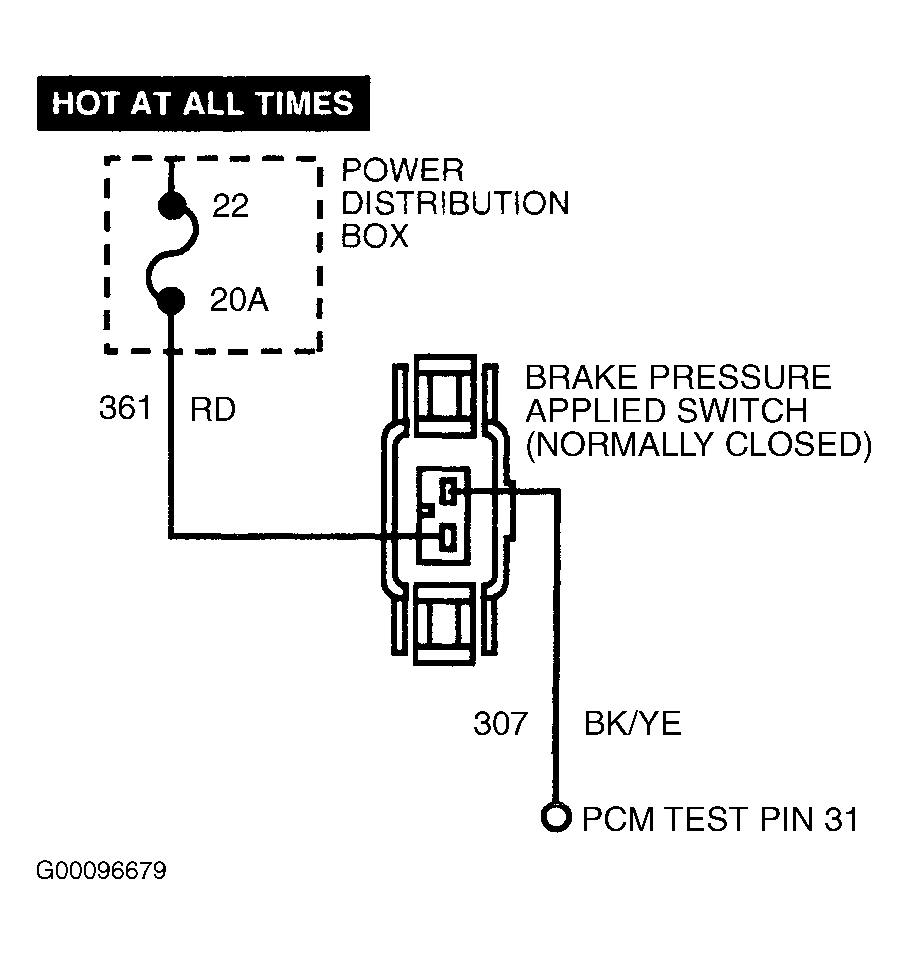

Fig 2: Identifying Brake Pressure Applied Switch Circuits (Excursion & F250-550)
G00096679Courtesy of FORD MOTOR CO.
Fig 3: Identifying Brake Pressure Applied Switch Circuits (F650-750 W/Air Brakes)
G00096680Courtesy of FORD MOTOR CO.
Fig 4: Identifying Brake Pressure Applied Switch Circuits (F650-750 W/Hydraulic Brakes)
G00096681Courtesy of FORD MOTOR CO.
