Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove RH upper D-pillar trim panel. Refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the parking aid speaker.
    1. Disconnect the electrical connector.
    2. Remove the two speaker retaining screws.
    3. Remove the parking aid speaker.

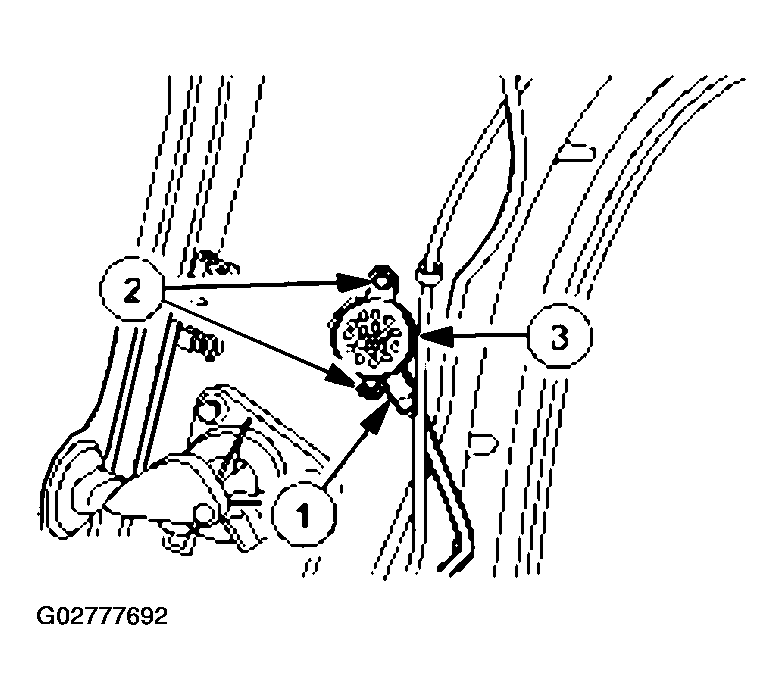

      Fig 1: Removing Parking Aid Speaker
      G02777692Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
