Pinpoint Test B: Parking Aid Is Inoperative

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, 2004 Ford Excursion, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

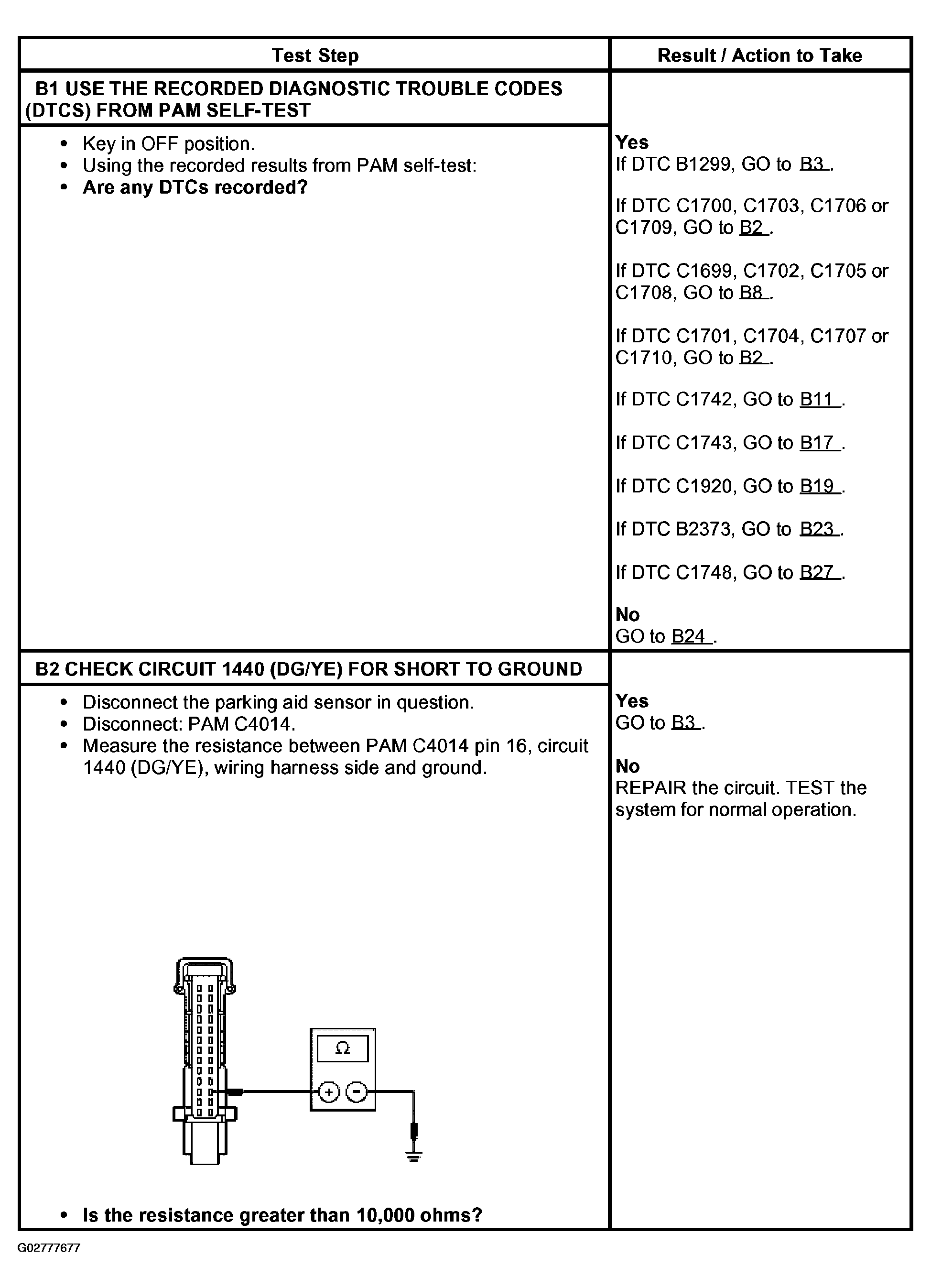

Fig 1: Pinpoint Test B: Parking Aid Is Inoperative (B1 & B2)

G02777677

Courtesy of FORD MOTOR CO.

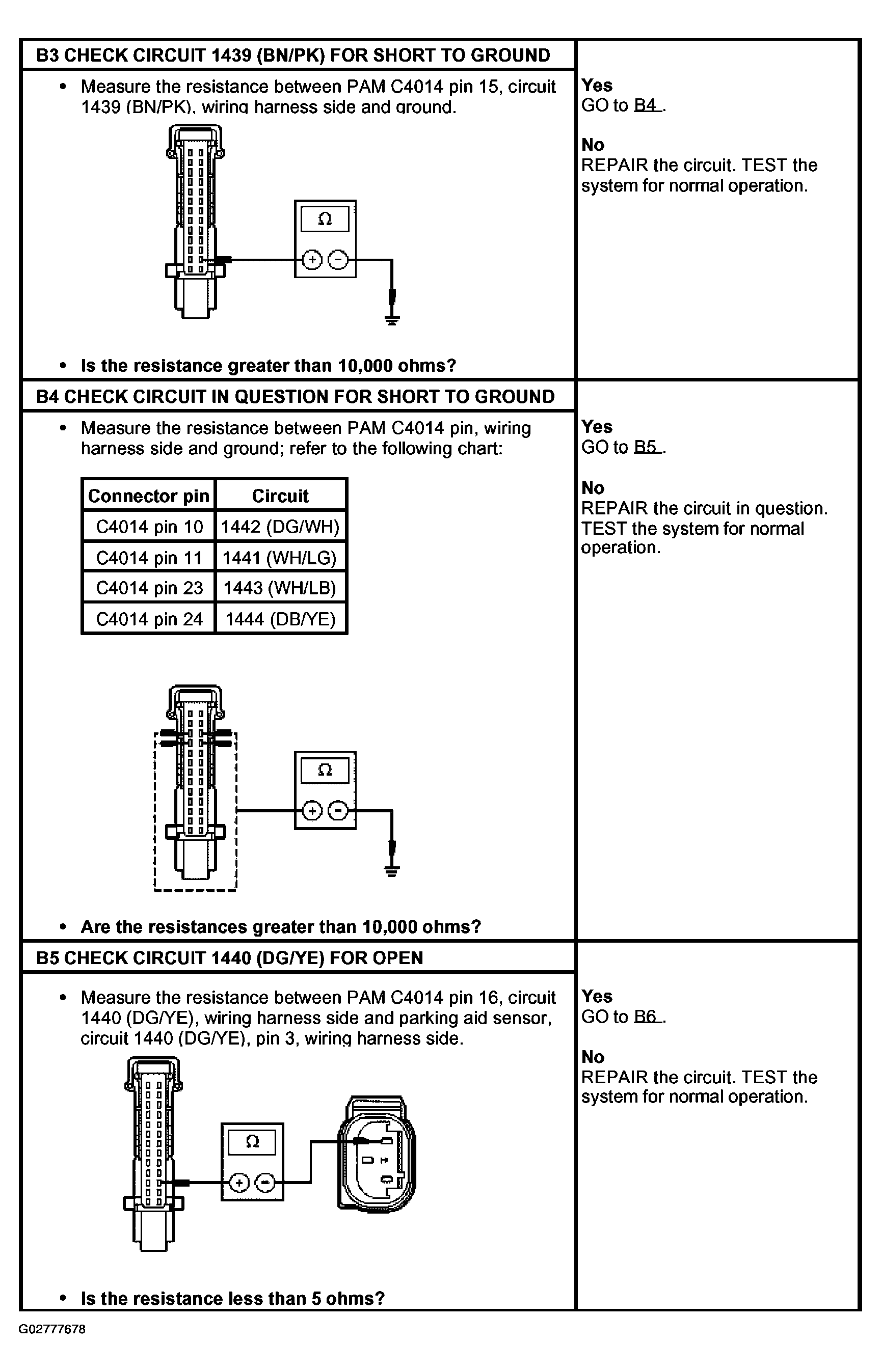

Fig 2: Pinpoint Test B: Parking Aid Is Inoperative (B3-B5)

G02777678

Courtesy of FORD MOTOR CO.

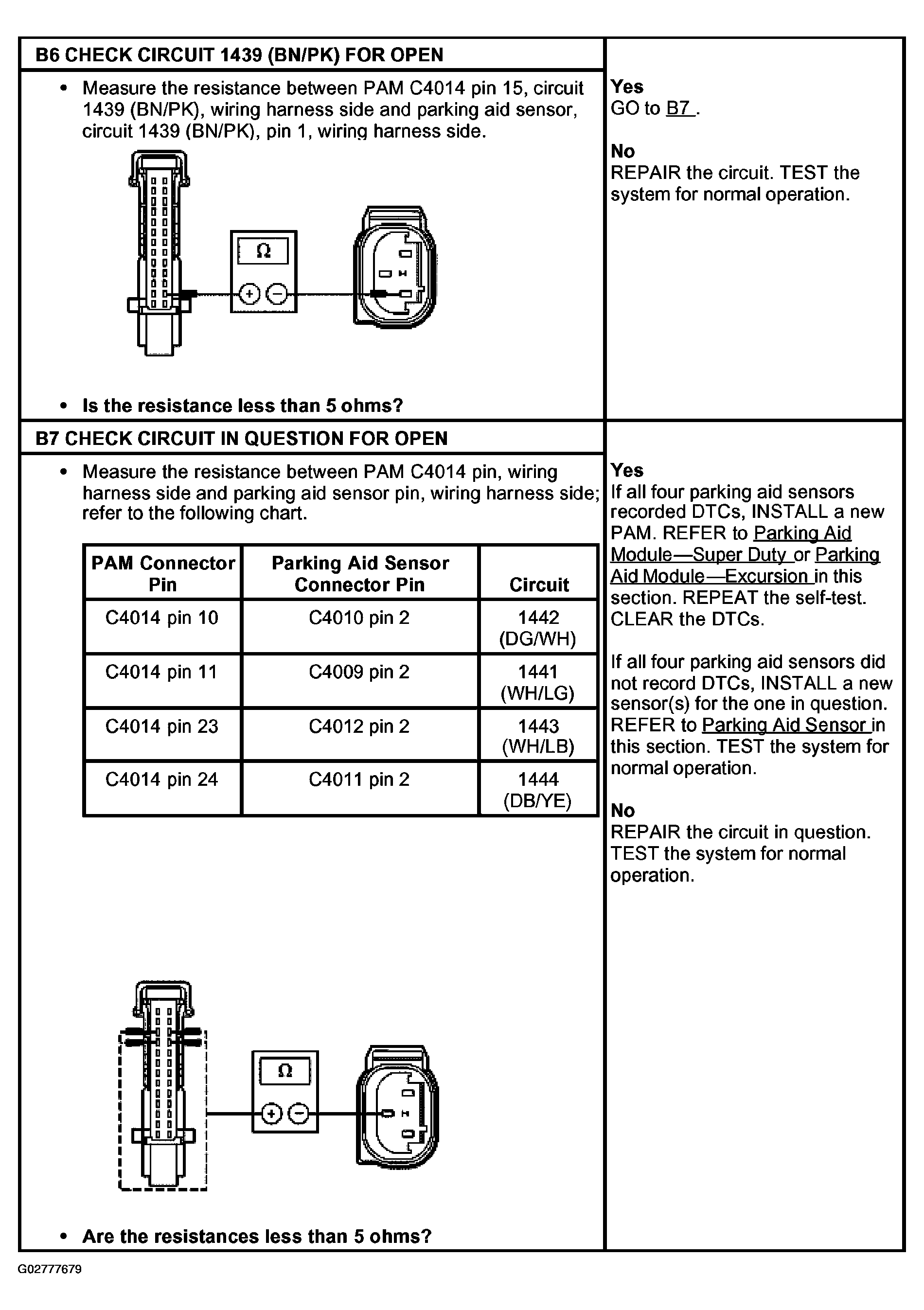

Fig 3: Pinpoint Test B: Parking Aid Is Inoperative (B6 & B7)

G02777679

Courtesy of FORD MOTOR CO.

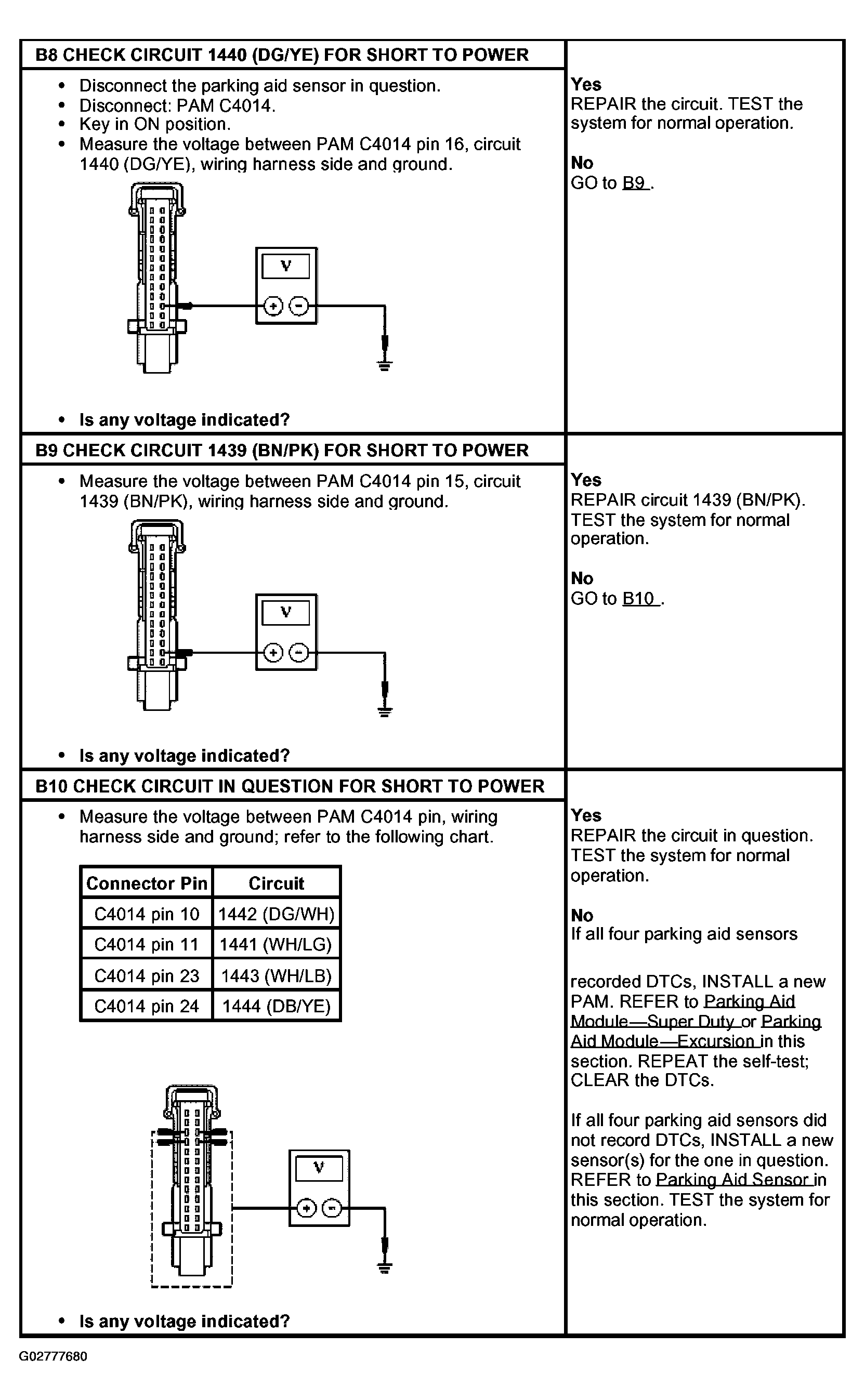

Fig 4: Pinpoint Test B: Parking Aid Is Inoperative (B8-B10)

G02777680

Courtesy of FORD MOTOR CO.

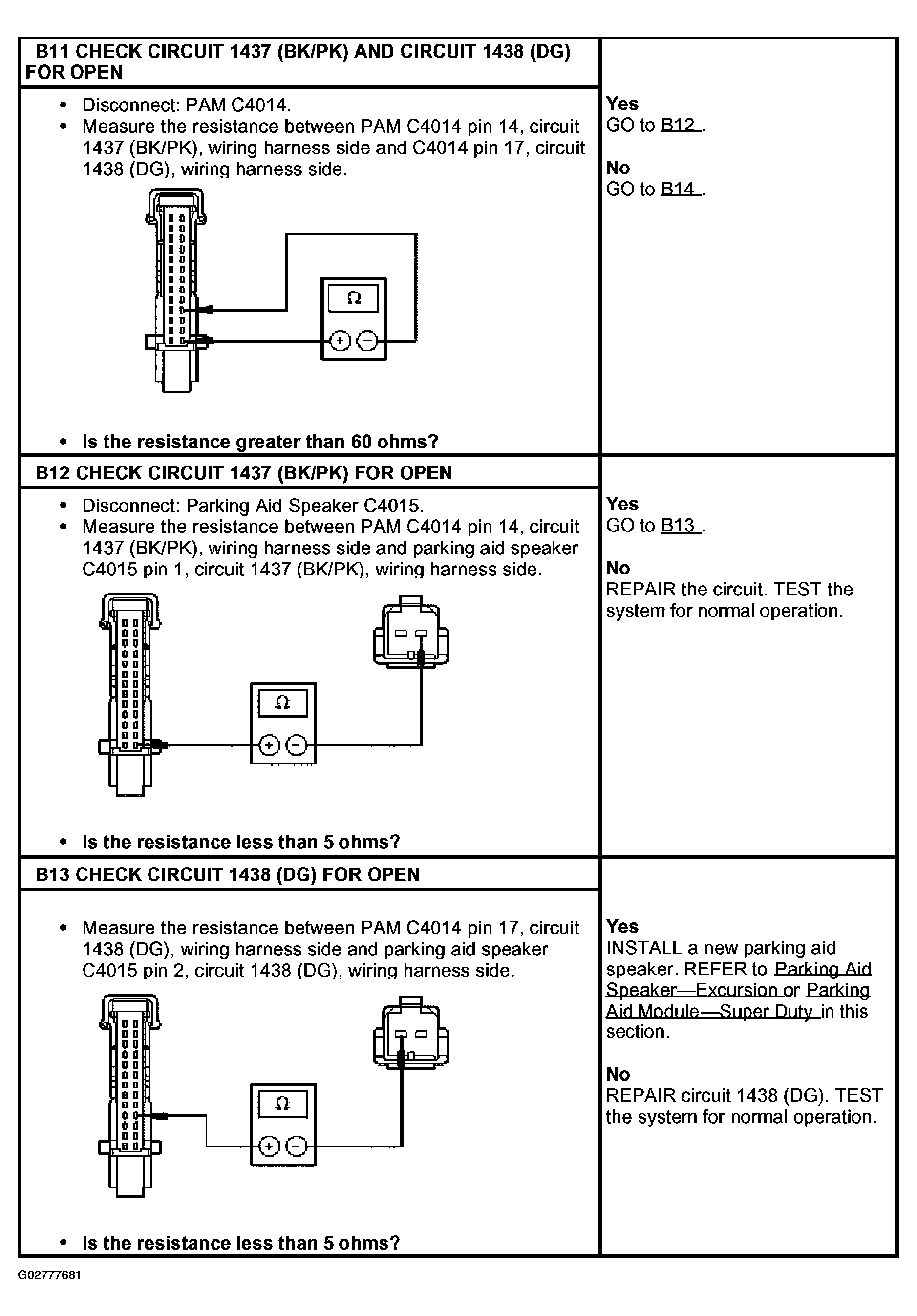

Fig 5: Pinpoint Test B: Parking Aid Is Inoperative (B11-B13)

G02777681

Courtesy of FORD MOTOR CO.

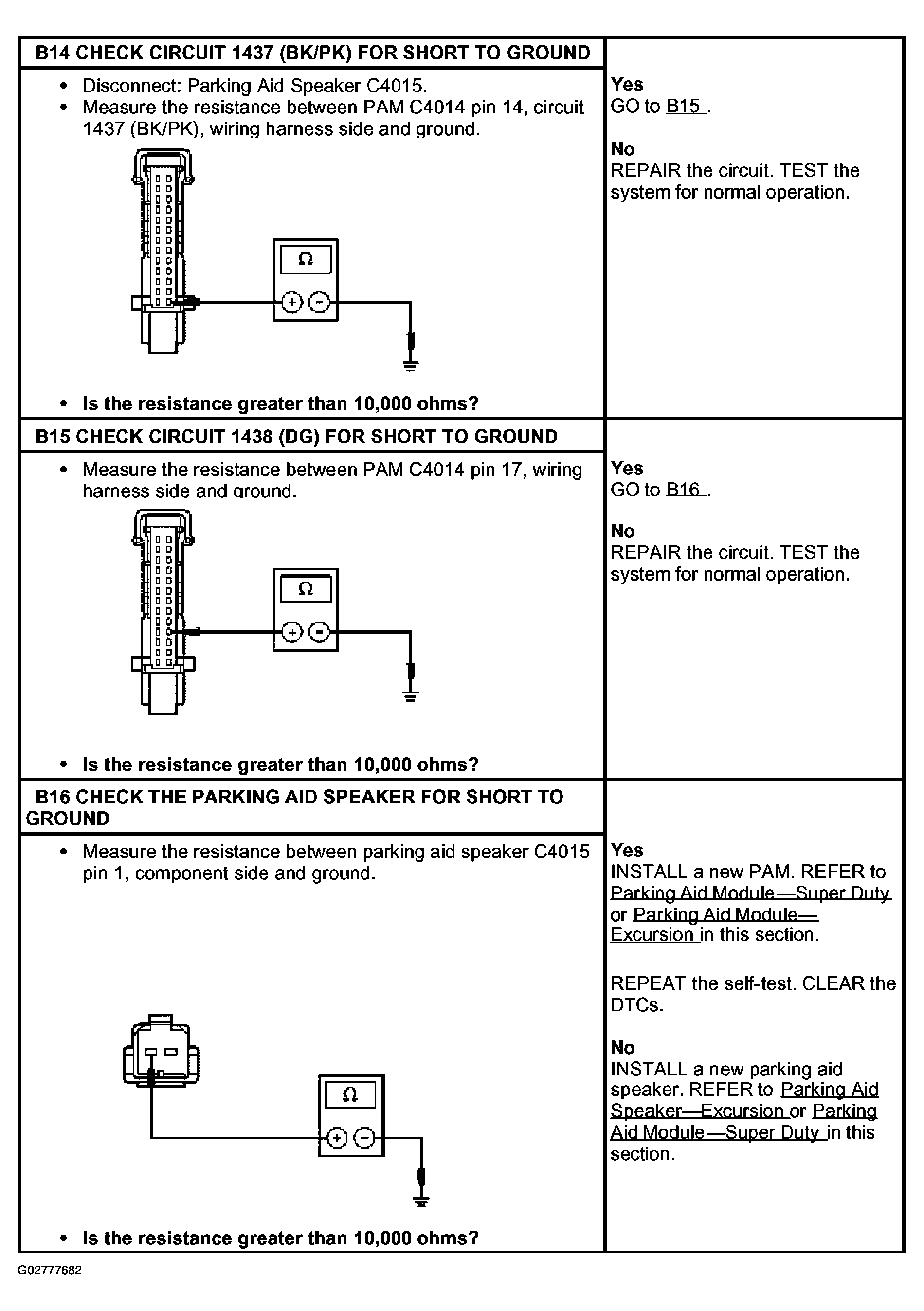

Fig 6: Pinpoint Test B: Parking Aid Is Inoperative (B14-B16)

G02777682

Courtesy of FORD MOTOR CO.

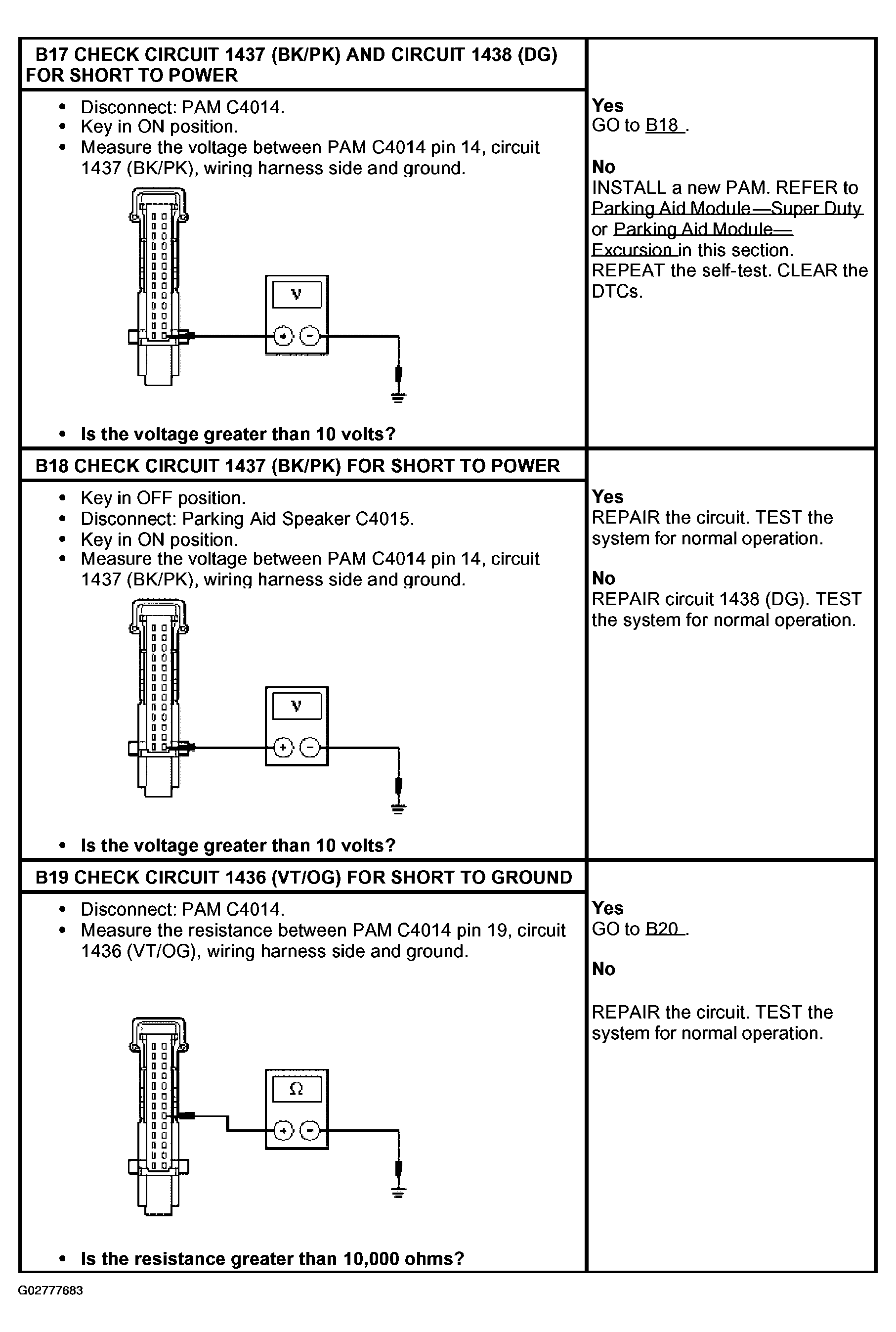

Fig 7: Pinpoint Test B: Parking Aid Is Inoperative (B17-B19)

G02777683

Courtesy of FORD MOTOR CO.

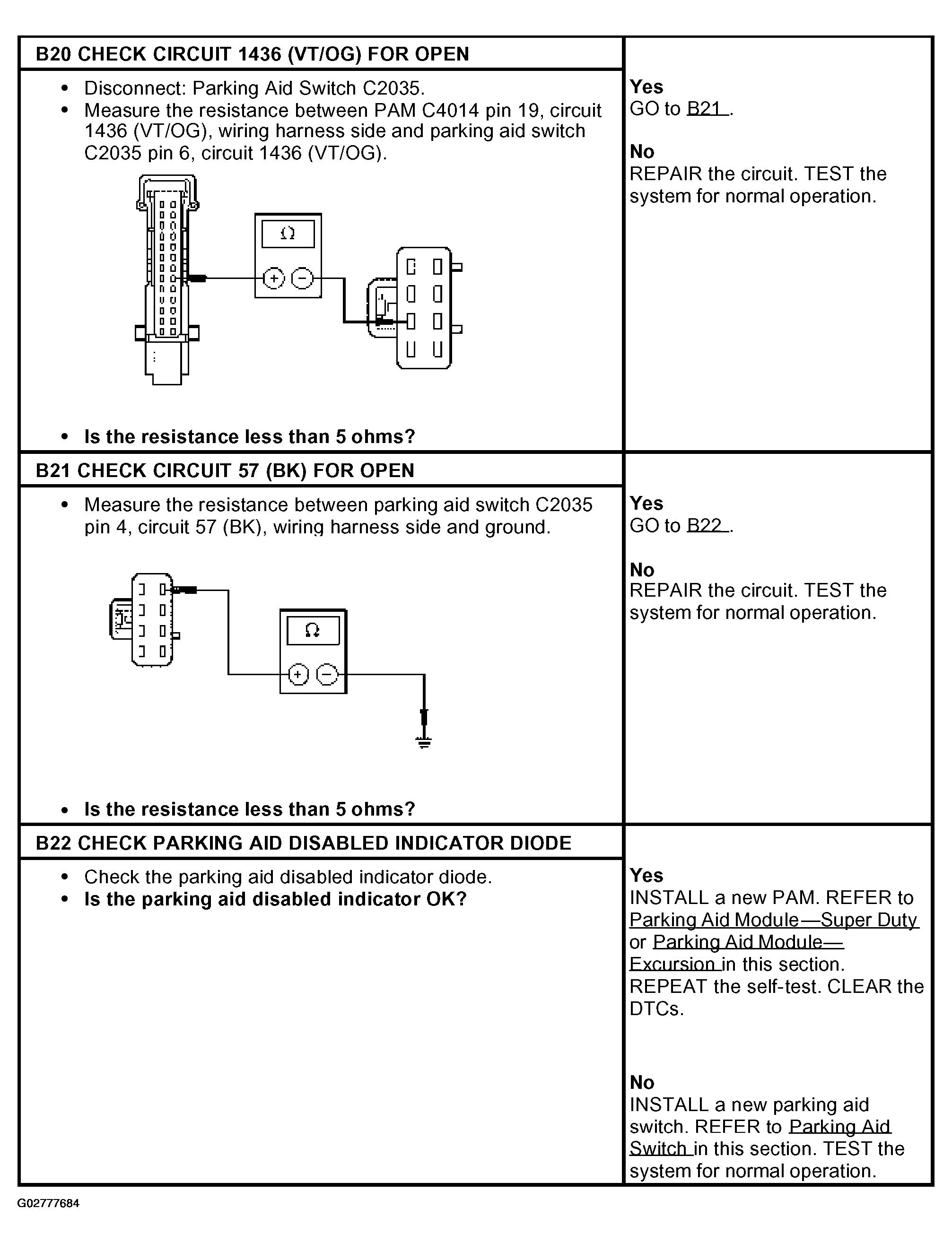

Fig 8: Pinpoint Test B: Parking Aid Is Inoperative (B20-B22)

G02777684

Courtesy of FORD MOTOR CO.

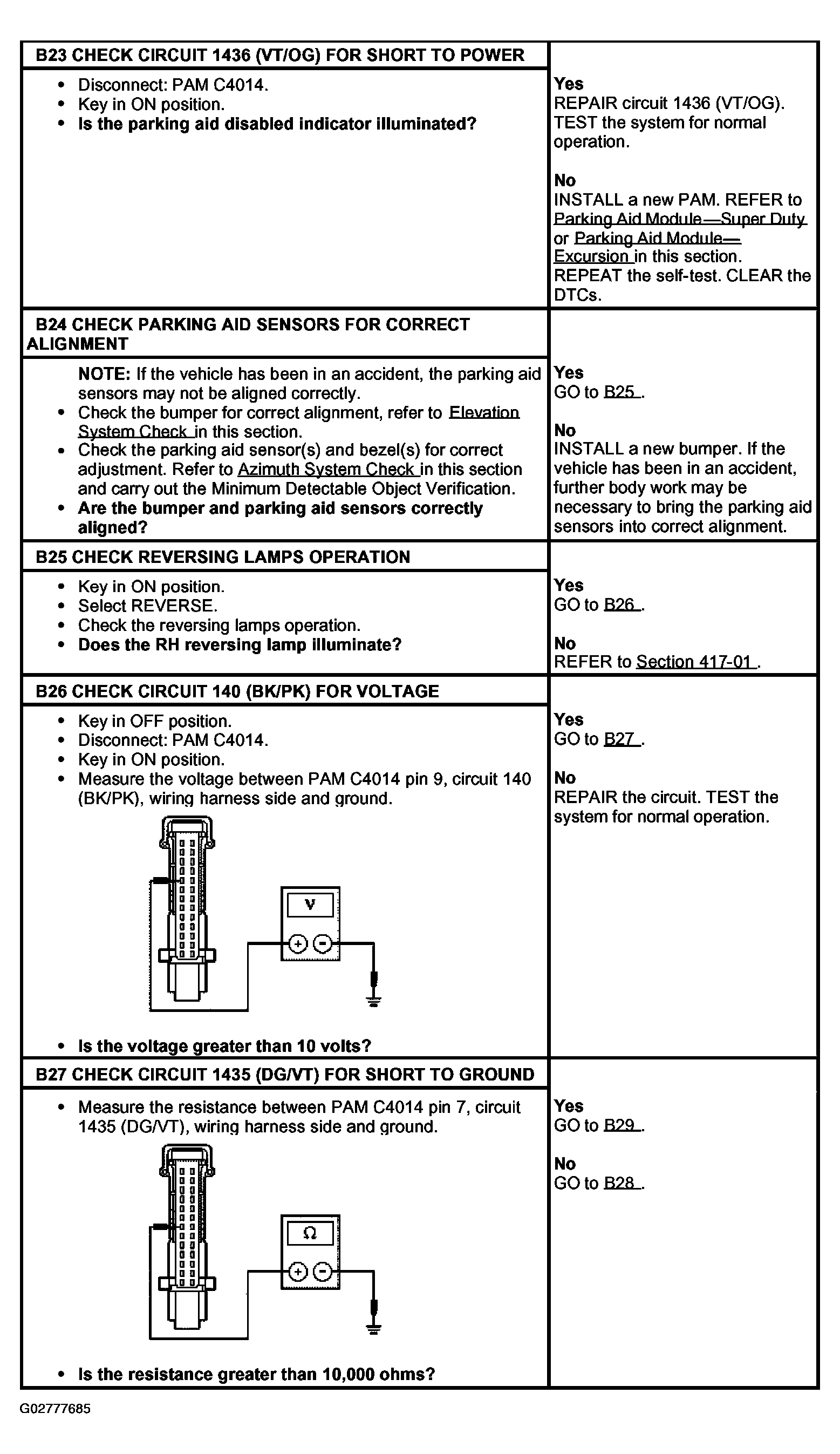

Fig 9: Pinpoint Test B: Parking Aid Is Inoperative (B23-B27)

G02777685

Courtesy of FORD MOTOR CO.

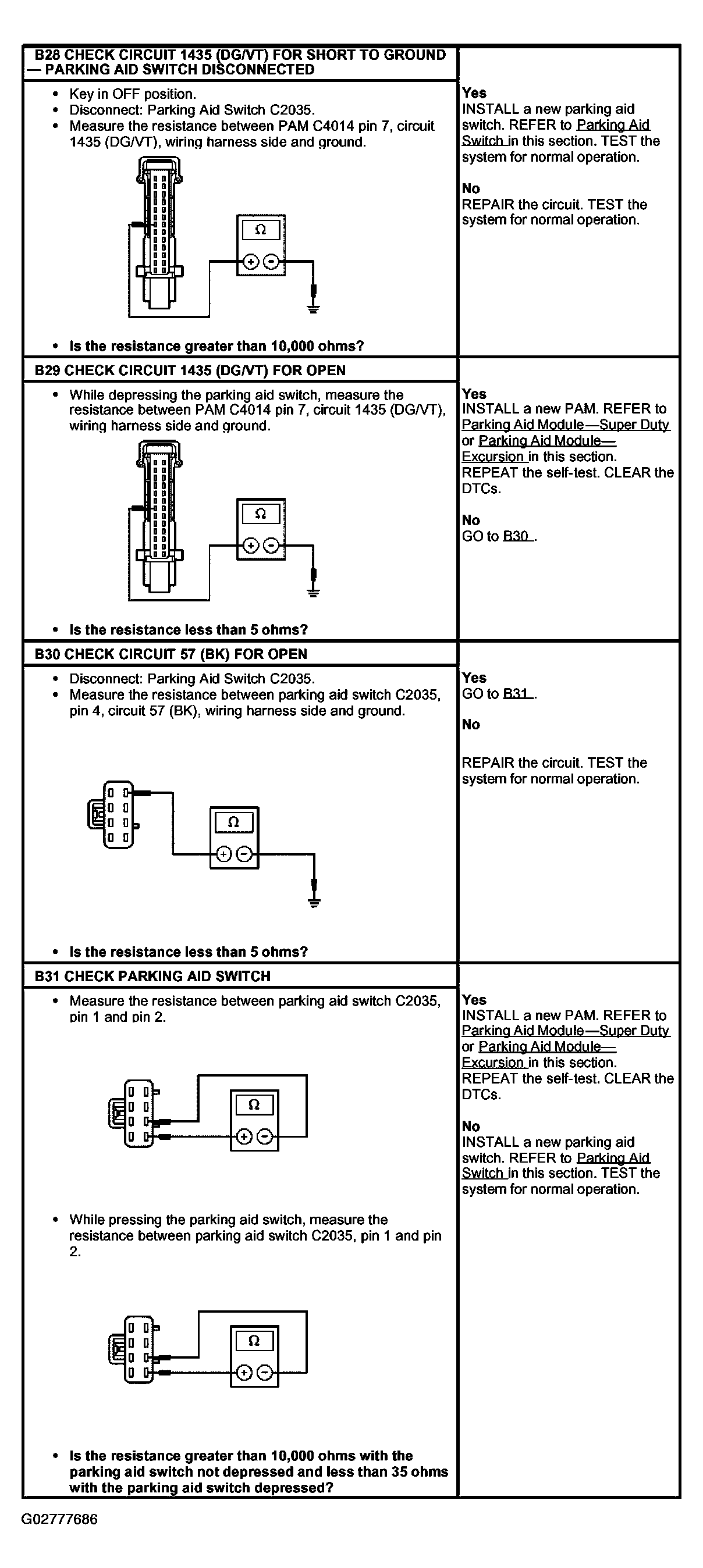

Fig 10: Pinpoint Test B: Parking Aid Is Inoperative (B28-B31)

G02777686

Courtesy of FORD MOTOR CO.
